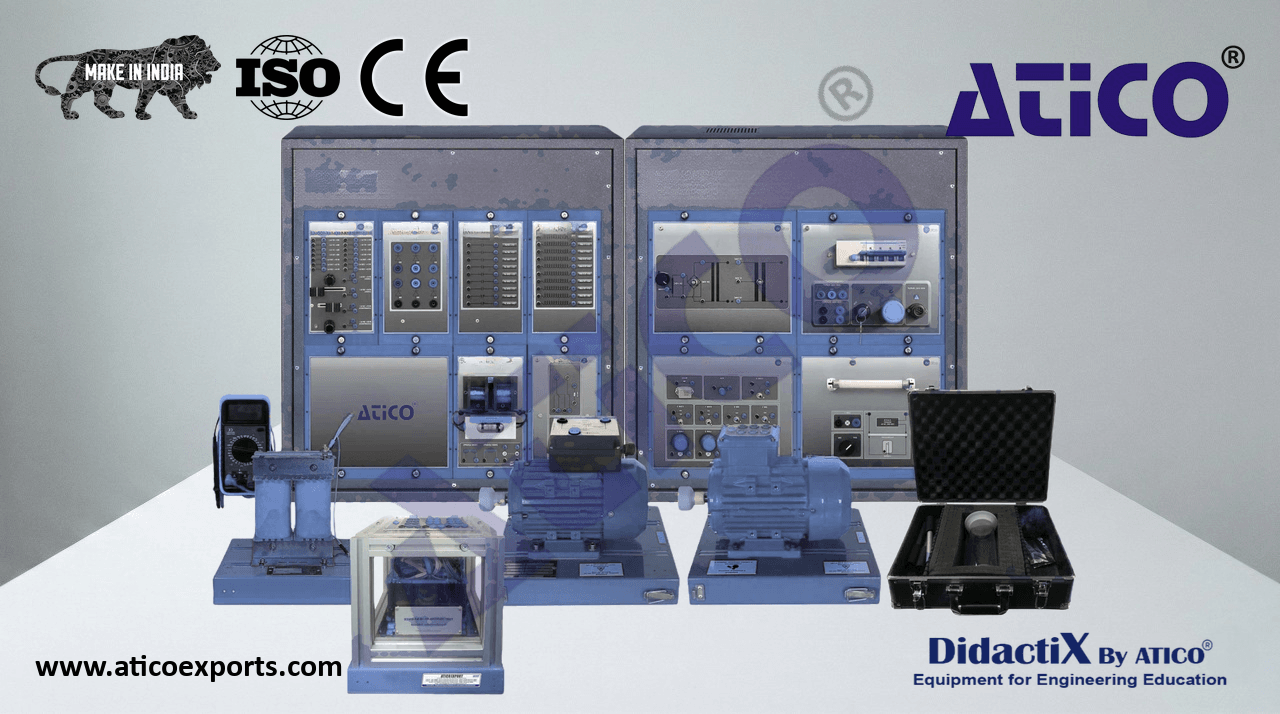

The Electrotechnics Application (RLC Circuits, Electrostatics, Motors, Transformers, Lighting), to study the basic knowledge about electric engineering.
The application “ATENG 11120” includes the following elements:
N-ALI01. Industrial Main Power Supply Module.
Supply voltage: 400 VAC, 3PH + N.
ON / OFF removable key.
Output voltage connections:
Three-phase + Neutral: 400 VAC.
Single-phase: 230 VAC.
N-ALI01
Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button.
N-ALI10. Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
Output voltage:
15 – 0 – 15 VAC.
24 VAC.
24 VDC.
0 – 24 VDC (adjustable). N-ALI10
N-CAR30. Inductances Module.
Nominal voltage: 24 V.
Inductances:
Two 1 mH inductances.
One 2.2 mH inductance.
Two 3.3 mH inductances.
N-CAR30
Two 10 mH inductances.
Two 22 mH inductances.
N-CAR31. Capacitors Module.
Nominal voltage: 24 V.
Capacitors:
One 47 µF non-polarised capacitor.
One 68 µF non-polarised capacitor.
Two 100 µF non-polarised capacitors.
N-CAR31
One 220 µF non-polarised capacitor.
One 330 µF non-polarised capacitor.
One 470 µF non-polarised capacitor.
One 220 µF polarised capacitor.
One 470 µF polarised capacitor.
N-CAR32. Rectifier Diodes Module.
Nominal voltage: 230 V.
Rectifiers: 6 x 40 A rectifier diodes.
N-CAR33: Resistive Components Module.
N-CAR32
Nominal voltage: 24 V.
Resistors:
Three 47 k Ohm resistors.
Three 51 k Ohm resistors.
Two 82 k Ohm resistors.
Two 100 k Ohm resistors.
One 120 k Ohm resistors.
Three 150 k Ohm resistors. N-CAR33
One 10 k Ohm linear 5 W wound potentiometer.
One 50 k Ohm linear potentiometer.
One 10 k Ohm logarithmic potentiometer.
One 50 k Ohm logarithmic potentiometer.
3
Specifications
N-LAM26. Lighting Module.
Four 24 V red lamps.
Two switches.
Two simple switches.
One crossover-switch.
One push-button.
N-LAM26
One buzzer.
Nominal power: 4 W.
Supply terminals (LN).
N-LAM09
MED65. Digital Multimeter.
This module has a digital multimeter of about 3 ½ digits, with double-jack ending cables of
about 4 mm to facilitate interconnections.
With this digital multimeter we will be able to measure:
Voltage.
Current.
MED65
Resistance.
Capacitors capacity.
Temperature.
N-REL50. Relays Module.
Nominal voltage: 24 V.
Two relays.
Two normally open contact (NO).
Two normally close contact (NC).
N-REL50
TRA28. Teaching Three-phase Transformer.
Nominal supply voltage: 400 and 230 VAC (3PH).
Nominal output voltage: 3 x (3 x 73 VAC).
Nominal power: 500 VA.
Free configuration (delta, star and zig-zag).
TRA28
VAR17. Dismantled Transformer Kit.
Nominal supply voltage: 230 V.
Nominal output voltage: 110 V.
Nominal power: 185 VA.
Four removable elements.
Coil of 2000 turns (0.8 A).
Coil of 1000 turns (1.6 A). VAR17
VAR18. Electrostatic Kit.
PVC bar.
PVC tube.
Nylon bar.
Aluminium bar.
VAR18
Homemade electroscope:
PMMA tube with cover, metal hook, aluminium ball and silver foil strip folded in half.
Two acetate strips.
Rabbit fur.
4
Specifications
N-VAR16. Electromagnetism Kit with a DC Motor/Generator Set.
Solenoids of 1000 turns and 2000 turns.
Cores of brass, stainless steel, ferrite and magnetic materials.
Motor/generator set with attached tachometer (24 VDC).
EMT16. 1PH Squirrel-Cage Motor with Starting and Running Capacitor.
Supply voltage: 110 – 220 V. N-VAR16
Power: 370 W.
Speed: 2780 rpm.
Frequency: 50 / 60 Hz
Armature current: 1.85 A.
Shaft height: 71 mm.
EMT16
. 3PH Squirrel-Cage Motor.
Nominal power: 370 W.
Nominal voltage: 3 x 230 / 400 VAC Δ/Y.
Frequency: 50 / 60 Hz.
Number of poles: 2.
Speed: 2730 rpm.
Nominal current: 1.67 / 0.97 A.
EMT7
Shaft height: 71 mm.
EMT12. Universal Motor.
Supply voltage: 110 – 240 VAC/ VDC.
Power: 0.3 HP.
Speed: 9000 rpm.
Shaft height: 71 mm.
EMT12
All necessary cables to realize the practical exercises are included.
Cables and accessories, for normal operation.
