Electrotechnics Application (Transformers)

The Electrotechnics Application (Transformers), is a basic application which to introduce the students in the basic concepts about how three-phase and single-phase transformers work.

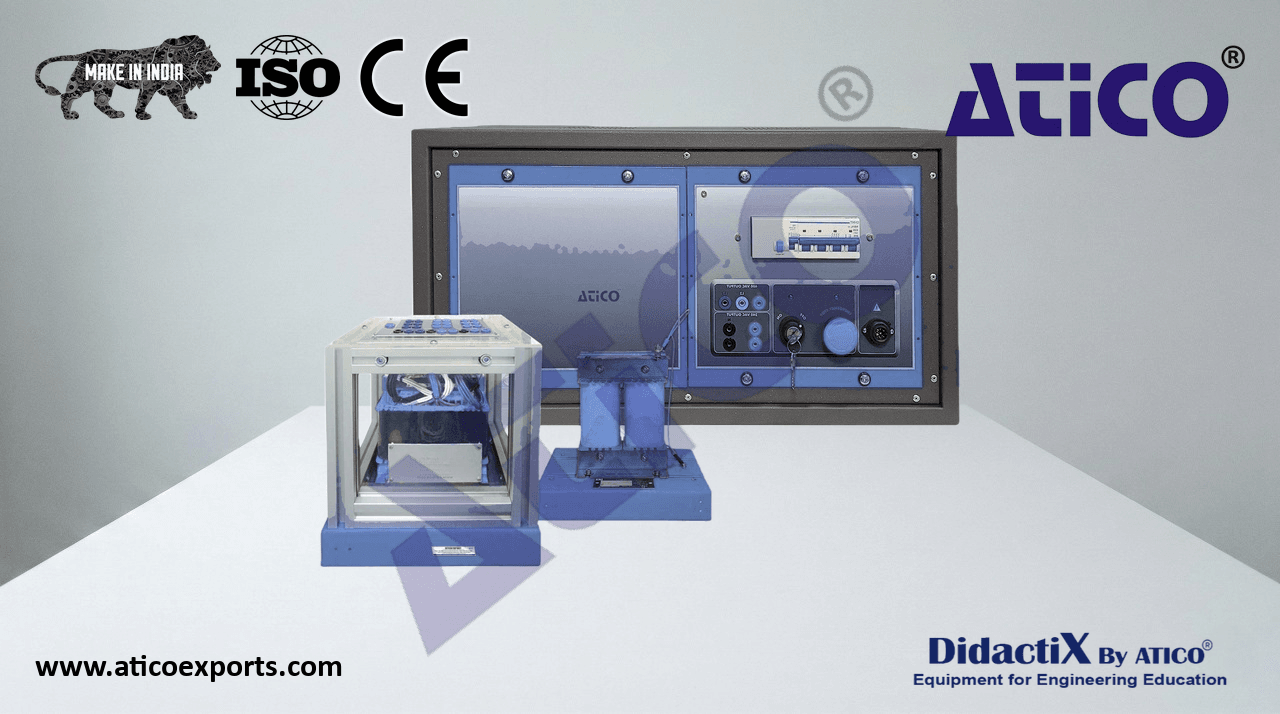

ATENG 11110 — Electrotechnics Application (Transformers)

• The “ATENG 11110” application includes the following elements:
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC. N-ALI01
• Single-phase: 230 VAC.
• Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• MED65. Digital Multimeter.
• This digital multimeter of about 3 ½ digits, with double-jack ending cables of about 4 mm to
  facilitate interconnections.
• With this digital multimeter we will be able to measure:
  Voltage.
  MED65
  Current.
  Resistance.
  Capacitors capacity.
  Temperature.
• VAR17. Dismantled Transformer Kit.
• Nominal supply voltage: 230 V.
• Nominal output voltage: 110 V.
• Nominal power: 185 VA.
  Four removable elements.
  VAR17
• Coil of 2000 turns (0.8 A).
• Coil of 1000 turns (1.6 A).
• TRA28. Teaching Three-phase Transformer.
• Nominal supply voltage: 400 and 230 VAC (3PH).
• Nominal output voltage: 3 x (3 x 73 VAC).
• Nominal power: 500 VA.
  Free configuration (delta, star and zig-zag). TRA28
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
