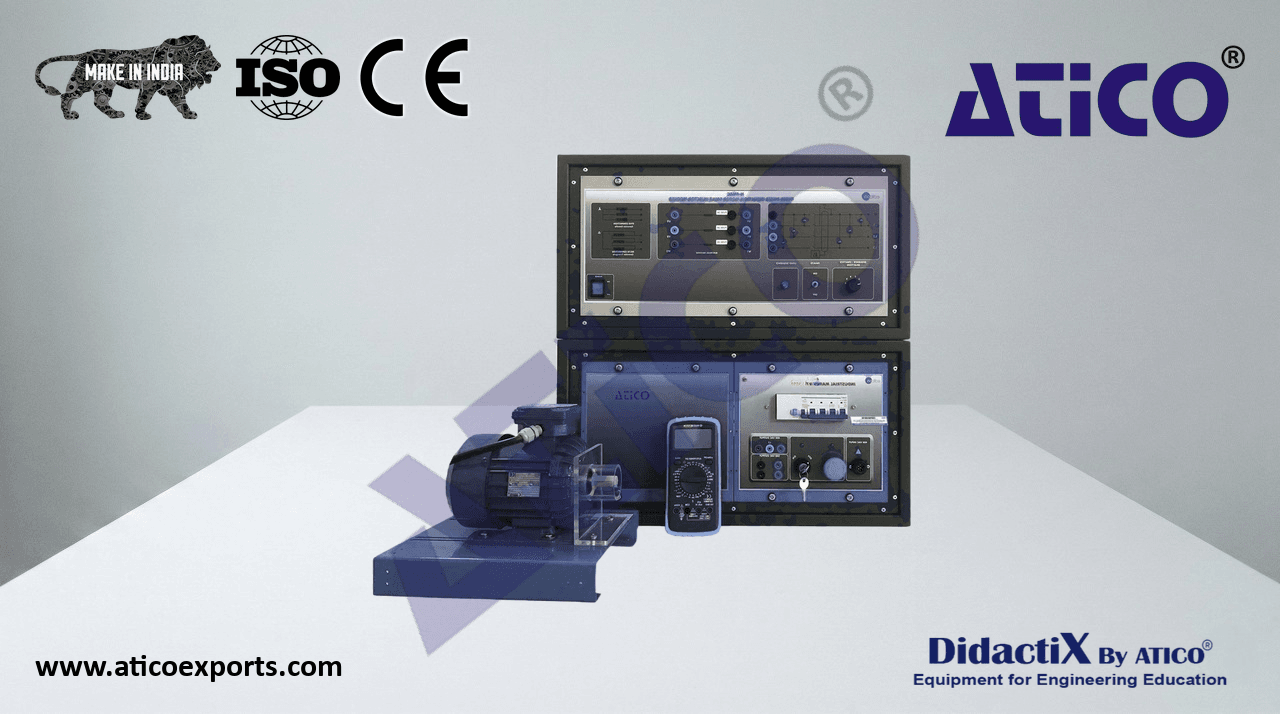

The Faults Simulation Application in Electrical Motors, to simulate non-destructive faults in three-phase motors and application of diagnostic and localization techniques.
Technical Specifications
ATENG 11149 — Faults Simulation Application in Electrical Motors
The application “ATENG 11149” includes the following elements:
N-ALI01. Industrial Main Power Supply Module.
Supply voltage: 400 VAC, 3PH + N.
ON/OFF removable key.
Output voltage connections:
Three-phase + Neutral: 400 VAC.
Single-phase: 230 VAC.
N-ALI01
Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button.
N-FMAC. Three-Phase Induction Motor Fault Injector Module.
Voltage supply: 400 VAC, 3PH + N.
ON/OFF switch.
Output voltage connections:
Three-phase + Neutral: 400 VAC.
Three-phase supply wire with 7 pin power connector.
N-FMAC
Three power terminals.
Differential magnetothermal, 4 poles, 25 A, 300 mA AC 6 KA.
Power supply indicator lamps.
Output voltage indicator lamps.
Fuses: 3 x 2 A.
Two position switch.
Start practice push-button.
Six position selector.
Motor terminals.
MED65. Digital Multimeter.
This 3 ½ digit digital multimeter, with dual 4 mm jack connector termination leads for easy
interconnections.
With this digital multimeter we will be able to measure:
Voltage.
Current.
Resistance. MED65
Capacitors capacity.
Temperature.
EMT9-E. Dahlander Industrial Motor, 2 speeds.
Nominal power: 370 W.
Nominal voltage: 3 x 400 VAC.
Frequency: 50/60 Hz.
Number of poles: 4.
Speed: 1400 / 2800 rpm.
EMT9-E
Nominal current: 1.2 / 1.55 A.
Shaft height: 71 mm.
All necessary cables to realize the practical exercises are included.
Cables and accessories, for normal operation.
