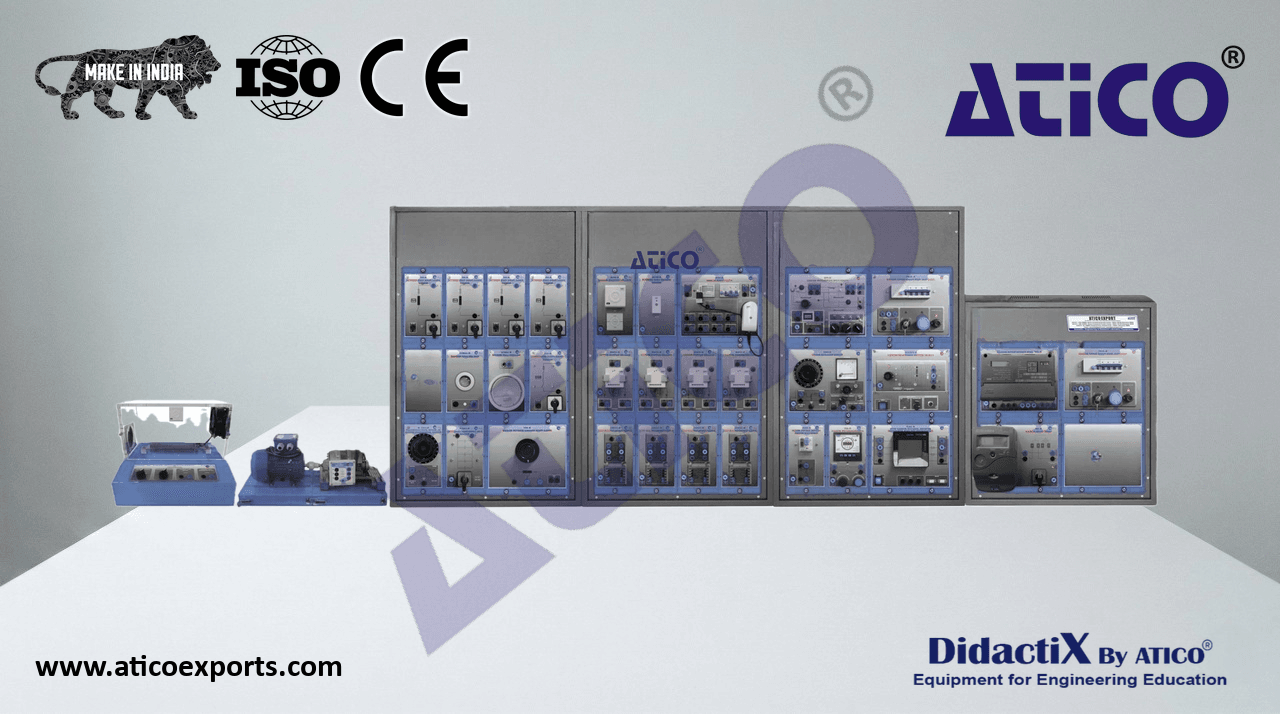

Final User Smart Grid System

The Final User Smart Grid System, reflects all these characteristics and will allow the user to carry out real applications related to current Smart Grid systems.

ATENG 11423 — Final User Smart Grid System

• The “ATENG 11423” system includes the following elements:
• ATENG 11425. Final User Smart Grid - Smart Meter Application.
• N-ALI01. Industrial Main Power Supply Module.
• Output voltage: 400 VAC, 3PH + N.
  Removable ON/OFF key.
• Output voltage connection:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
• Three-phase power cable with IP44 plug 3PN + E 32 A 400 V. N-ALI01
• 4-pole residual current circuit breaker, 25 A, 30 mA AC 6 kA.
  Emergency stop pushbutton.
• N-CTT. Data Concentrator Module.
• The communication concentrator consists of:
  A measurement system formed by a number of smart meters (in our case, there is a
  residential smart meter). The data concentrator communicates with the smart meter
  through a power line.
  Remote control system. It is a web platform that allows access to the data concentrator,
  visualization of all smart meters connected to the power line, configuration of different
  parameters, visualization of all electrical parameters of the load connected to each smart N-CTT
  meter, etc.
• Configuration and control software (web platform):
  The N-CTT module includes a web platform to control the smart meter.
• Therefore, the user can perform the following functions:
  Real-time monitoring, remote management, and network quality verification.
  Relay switch to limit the maximum power consumed by the end user.
  Bidirectional communication between the electric utility (the student) and the smart
• meter: the student can control and monitor the status of the loads and limit the
  maximum required power.
• N-SM. Smart Meter Module. N-SM
• The N-SM module can perform the following measurements and controls:
  Current measurements.
  Voltage measurements.
  Active and reactive power measurements in four quadrants.
  Bidirectional active and reactive energy measurements in four quadrants.
  Power factor measurements.
  Smart relay controlled from the data concentrator’s web platform. N-CAR19
• Required elements (Not Included):
• AEL-FUSG-LO. Smart Grid (End User) – Smart Grid Loads.
• N-CAR19. Single-Phase Switchable Capacitor Module.
• Rated voltage: 230 VAC.
• Capacitance: 7 µF; 14 µF; 21 µF; 28 µF; 35 µF.
  Selector switch.
  N-ID
• N-IND. Single-Phase Inductance Module.
• Inductance: 1.4 H.
• Switch:
• Position 0: Open circuit.
• Position 1: Closed circuit.
• Fuse: 2 A.
  N-LAM32
• N-LAM32. Single LED Lamp Module.
• 24 VDC LED lamp.
• N-VVCC/M. DC Motor Speed Controller Module (Intermediate Option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
  N-VVCC/M
  7

Specifications

• N-REF. Single-Phase Fixed Resistance Module (4 units).
• Resistance value: 150 Ohms.
• Maximum power: 500 W.
• Selector:
• Position 0: Open circuit.
• Position 1: Closed circuit.
• Fuse: 2 A. N-REF
• N-REV. Single-Phase Variable Resistance Module.
• Variable resistance: 150 Ohms.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  N-REV
  Three terminals to select maximum resistance or variable resistance.
• Fuse: 2 A.
• EH. Electric Heating Unit.
  This module can be used for various purposes.
• Load purpose: This module is used as a 700 W resistive load.
  EH
• FRECP. Eddy Current Brake.
• Maximum supply voltage: 60 VDC.
• Nominal current: 1.67 A.
• Maximum current: 1.8 A.
• Maximum braking torque: 1.4 Nm.
• Shaft height: 71 mm.

FRECP

• EMT12. Universal Motor.
• Supply voltage: 110 – 240 VAC / VDC.
• Rated power: 0.3 HP.
• Speed: 9000 rpm.
• Shaft height: 71 mm.
• N-LAM16. Halogen Lamp Module. EMT12
• Rated voltage: 230 VAC (PH + N).
  Halogen lamp.
• Power: 60 W.
• Recommended additional elements (at least one) (Not included):
• ATENG 11428. Final User Smart Grid - Net Metering Application.
• N-PFD. Power Distribution Module. N-LAM16
  This module is used to control the power flows coming from the generator and the grid
  to supply the loads.
  In addition, it includes an internal PLC to automatically control the measurement point
  through 3 switches.
  This module, together with the network analyzer (N-EALD), allows us to obtain the
  electrical parameters of the grid, the generator, and the loads to calculate Net Metering.
  N-PFD
• N-VVCA4K. 4 kW AC Motor Control Module.
  This module is used to control the motor that drives the electrical generator. With this
  module we simulate wind speed.
  It includes a potentiometer that allows controlling the motor speed (i.e., wind speed),
  enabling the user to increase or decrease the generated active power.
• Required power supply: 230 VAC.
  Control enable switch.
  N-VVCA4K
  Speed control potentiometer.
• Rated power: 4 kW.
• Three-phase output: PWM.
  8

Specifications

• N-ASY. Single-Phase Digital Synchronization Module.
  This module is used to synchronize the generator with the grid, enabling the user to
  inject energy and perform Net Metering.This module has a push button to enable
  synchronization and another push button to disable it.
• It also has a display that shows the following parameters:
  Grid frequency.
  Generator frequency.
  N-ASY
  Grid voltage.
  Generator output voltage.
  Grid and phase angle of the generator.
• N-VREG. Voltage Regulator Module.
• Power supply (Single-phase): 230 VAC PH + N + G.
  Output terminals for generator excitation connection.
• Analog ammeter: 0–10 A.
  Excitation enable switch.
• Fuse: 5 A.
  N-VREG
• N-ALI01. Industrial Main Power Supply Module.
• Output voltage: 400 VAC, 3PH + N.
  Removable ON/OFF key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
  N-ALI01
• Three-phase power cable with IP44 plug 3PN + E 32 A 400 V.
• 4-pole residual current circuit breaker, 25 A, 30 mA AC 6 kA.
  Emergency stop pushbutton.
• N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition.
  The network analyzer module allows measuring, visualizing, and analyzing all electrical
  parameters in AC power networks.
  It features an LCD display and navigation buttons, and includes dedicated software for
  voltage and current waveform monitoring, harmonic visualization, tariff programming,
  alarm programming, and storage of electrical parameters.
• Characteristics: N-EALD
• Multifunction three-phase power meter:
• Three-phase and single-phase voltage. Up to 690 VAC L-L.
• Nominal line and neutral current: 10 A.
  Active, reactive, and apparent energy.
• Compatible frequencies: 25 Hz, 50 Hz, 60 Hz, and 400 Hz.
  V–I vector diagram visualization.
• Supply voltage: 85–265 VAC.
• Power quality control:
  Individual current and voltage harmonic measurement up to the 40th.
  Voltage and current THD, current TDD, and K-Factor.
  Max/min visualization.
  Waveform display, 128 samples/sec.
• Events and data storage:
• Harmonic analyzer:
  Voltage and current THD, current TDD, and K-Factor up to the 40th harmonic.
  Harmonic spectrum of current and voltage with angles.
• Tariff programming:
  Class 0.5S IEC 62053–22, active and reactive power in four quadrants.
  Measurement of total and per-phase active, reactive, and apparent energy.
• Time-of-use: four total energy/demand registers.
  Eight tariffs, four seasons, and four types of days.
  Automatic daily report of maximum and minimum consumed energy.
• Communications:
  RS-485 communication port.
  9

Specifications

• GMG4K. 4 kW Generator - Motor Group.
• Induction motor:
• Rated power: 4 kW.
• Rated voltage: 380 VAC three-phase.
• Connection: star.
• Rated speed: 3000 rpm.
• Synchronous generator operating at 50 Hz:
• First rating:
• Rated power: 3.5 kVA.
  GMG4K
• Rated output voltage: 230 VAC single-phase.
• No-load excitation current: 1.4 A.
• Full-load excitation current: 4 A.
• Rated speed: 3000 rpm.
• Second rating:
• Rated power: 4.2 kVA.
• Rated output voltage: 230 VAC single-phase.
• No-load excitation current: 1.4 A.
• Full-load excitation current: 4 A.
• Rated speed: 3000 rpm.
• N-REL46. Thermal Protection Module for Electric Motor.
• Amperage: 6 to 10 A.
• Trip class: 10.
• Rated service voltage: 230/240 VAC; 400/415 VAC.
• Rated trip current: 10 A.
  N-REL46
• ATENG 11426. Final User Smart Grid - Smart Energy Application.
• N-HPM. Domestic Power Module.
• Supply voltage: 230 VAC.
  Residual current circuit breaker (RCCB).
  Power meter.
  LED circuit energization indicator.
• 1x 230 VAC output socket.
• 1x 230 VAC input socket (can be connected directly to the 230 VAC output). N-HPM
  8x output power sockets.
  Ground terminal.
• Zmeter, wireless energy meter with circuit open/close capability:
  ON/OFF switch.
• 3.5 mm jack.
  2× AAA batteries.
• Detection range: 10 m.
• Transmission range: 100 m outdoors, 30 m indoors.
• Channels: 19 (2445 MHz), 20 (2450 MHz), 25 (2475 MHz).
• N-WLSM. Wireless Light Sensor Module.
• ZLUM light sensor:
  CR2032 lithium battery.
• Measurement range: 1–65536 lux.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405–2.480 GHz.
  Ground terminal.
  N-WLSM
• N-WSM. Wireless Switch Module.
  Ground terminal.
• Wireless switch:
  Five open/close commands.
  Temperature sensor.
  CR2032 lithium battery.
• Transmission range: 30 m indoors, 100 m outdoors.
  N-WSM
• 16 channels: 2.405–2.480 GHz.
  10

Specifications

• N-IOWM. Wireless Output Module (4 units).
• Supply voltage: 230 VAC.
• 2 A fuse.
  Ground terminal.
• 2x 230 VAC outputs.
  2x indicator lights to show output status.
  N-IOWM
  ZLight wireless module for opening/closing the outputs.
• Maximum power: 500 W.
• Operating voltage range: 85 – 263 V.
• Frequency: 50 – 60 Hz.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405 – 2.480 GHz.
• N-CON02. Three-Pole Contactor Module (230 VAC) (4 units).
• Contactor coil voltage: 230 VAC.
• Power terminals:
  Three input power terminals.
  Three output power terminals.
• Auxiliary contacts:
  Three normally open (black). N-CON02
  Three normally closed (red).
• ATENG 11477. Automatic Power Factor Control Application in Single-Phase Circuits.
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (Single-phase): 230 VAC, 1PH + N.
  Removable ON/OFF key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase power cable with plug.
  N-ALI02
• 2-pole residual current circuit breaker, 25 A, 30 mA AC 6 kA.
  Emergency stop pushbutton.
• N-CFPS. Single-Phase Automatic Power Factor Controller Module.
  Automatic power factor controller.
  Four-quadrant regulation.
  FCP (Fast Computerized Program) system.
• Compensation stages: 6 relay-type outputs.
  LCD display with three digits and over 20 icons indicating operating status.
  N-CFPS
  ON / OFF switch.
  GND terminal.
• N-CAR19S4D. Single-Phase Digital Capacitor Bank Module.
  Digital capacitor bank.
  Six stages of 7 µF.
• Supply voltage: 230 VAC.
  Stepped signal input.
  8-pin microconnector.
  N-CAR19S4D
  GND terminal.
• N-IND. Single-Phase Inductance Module (2 units).
• Inductance: 1.4 H.
• Switch:
• Position 0: Open circuit.
• Position 1: Closed circuit.
• Fuse: 2 A.
  N-IND
  11

Specifications

• N-REF. Single-Phase Fixed Resistance Module (4 units).
• Resistance value: 150 Ohms.
• Maximum power: 500 W.
• Selector:
• Position 0: Open circuit.
• Position 1: Closed circuit.
  N-REF
• Fuse: 2 A.
• OSM. Additional Smart Meter with Smart Loads.
• ATENG 11428. Final User Smart Grid - Net Metering Application.
• N-PFD. Power Distribution Module.
  This module is used to control the power flows coming from the generator and the grid to
  supply the loads.
  In addition, it includes an internal PLC to automatically control the measurement point
  through 3 switches.
  This module, together with the network analyzer (N-EALD), allows us to obtain the electrical
  parameters of the grid, the generator, and the loads to calculate Net Metering. N-PFD
• N-VVCA4K. 4 kW AC Motor Control Module.
  This module is used to control the motor that drives the electrical generator. With this module
  we simulate wind speed.
  It includes a potentiometer that allows controlling the motor speed (i.e., wind speed),
  enabling the user to increase or decrease the generated active power.
• Required power supply: 230 VAC. N-VVCA4K
  Control enable switch.
  Speed control potentiometer.
• Rated power: 4 kW.
  Three-phase PWM output
• N-ASY. Single-Phase Digital Synchronization Module.
  This module is used to synchronize the generator with the grid, enabling the user to inject
  energy and perform Net Metering.This module has a push button to enable synchronization
  and another push button to disable it.
• It also has a display that shows the following parameters:
  Grid frequency. N-ASY
  Generator frequency.
  Grid voltage.
  Generator output voltage.
  Grid and phase angle of the generator.
• N-VREG. Voltage Regulator Module.
• Power supply (Single-phase): 230 VAC PH + N + G.
  Output terminals for generator excitation connection.
• Analog ammeter: 0–10 A.
  Excitation enable switch. N-VREG
• Fuse: 5 A.
• N-ALI01. Industrial Main Power Supply Module.
• Output voltage: 400 VAC, 3PH + N.
  Removable ON/OFF key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
• Three-phase power cable with IP44 plug 3PN + E 32 A 400 V. N-ALI01
• 4-pole residual current circuit breaker, 25 A, 30 mA AC 6 kA.
  Emergency stop pushbutton.
  12

Specifications

• N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition.
  The network analyzer module allows measuring, visualizing, and analyzing all electrical
  parameters in AC power networks.
  It features an LCD display and navigation buttons, and includes dedicated software for
  voltage and current waveform monitoring, harmonic visualization, tariff programming,
  alarm programming, and storage of electrical parameters.
• Characteristics:
  N-EALD
• Multifunction three-phase power meter:
• Three-phase and single-phase voltage. Up to 690 VAC L-L.
• Nominal line and neutral current: 10 A.
  Active, reactive, and apparent energy.
• Compatible frequencies: 25 Hz, 50 Hz, 60 Hz, and 400 Hz.
  V–I vector diagram visualization.
• Supply voltage: 85–265 VAC.
• Power quality control:
  Individual current and voltage harmonic measurement up to the 40th.
  Voltage and current THD, current TDD, and K-Factor.
  Max/min visualization.
  Waveform display, 128 samples/sec.
• Events and data storage:
• Harmonic analyzer:
  Voltage and current THD, current TDD, and K-Factor up to the 40th harmonic.
  Harmonic spectrum of current and voltage with angles.
• Tariff programming:
  Class 0.5S IEC 62053–22, active and reactive power in four quadrants.
  Measurement of total and per-phase active, reactive, and apparent energy.
• Time-of-use: four total energy/demand registers.
  Eight tariffs, four seasons, and four types of days.
  Automatic daily report of maximum and minimum consumed energy.
• Communications:
  RS-485 communication port.
• GMG4K. 4 kW Generator - Motor Group.
• Induction motor:
• Rated power: 4 kW.
• Rated voltage: 380 VAC three-phase.
• Connection: star.
• Rated speed: 3000 rpm.
• Synchronous generator operating at 50 Hz:
• First rating:
• Rated power: 3.5 kVA.
• Rated output voltage: 230 VAC single-phase. GMG4K
• No-load excitation current: 1.4 A.
• Full-load excitation current: 4 A.
• Rated speed: 3000 rpm.
• Second rating:
• Rated power: 4.2 kVA.
• Rated output voltage: 230 VAC single-phase.
• No-load excitation current: 1.4 A.
• Full-load excitation current: 4 A.
• Rated speed: 3000 rpm.
• N-REL46. Thermal Protection Module for Electric Motor.
• Amperage: 6 to 10 A.
• Trip class: 10.
• Rated service voltage: 230/240 VAC; 400/415 VAC.
• Rated trip current: 10 A.
  N-REL46
  13

Specifications

• Required elements (Not Included):
• AEL-FUSG-LO. Smart Grid (End User) – Smart Grid Loads.
• N-CAR19. Single-Phase Switchable Capacitor Module.
• Rated voltage: 230 VAC.
• Capacitance: 7 µF; 14 µF; 21 µF; 28 µF; 35 µF.
  Selector switch. N-CAR19
• N-IND. Single-Phase Inductance Module.
• Inductance: 1.4 H.
• Switch:
• Position 0: Open circuit.
  N-ID
• Position 1: Closed circuit.
• Fuse: 2 A.
• N-LAM32. Single LED Lamp Module.
• 24 VDC LED lamp.
  N-LAM32
• N-VVCC/M. DC Motor Speed Controller Module (Intermediate Option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
  N-VVCC/M
• N-REF. Single-Phase Fixed Resistance Module (4 units).
• Resistance value: 150 Ohms.
• Maximum power: 500 W.
• Selector:
• Position 0: Open circuit.
• Position 1: Closed circuit.
  N-REF
• Fuse: 2 A.
• N-REV. Single-Phase Variable Resistance Module.
• Variable resistance: 150 Ohms.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  N-REV
  Three terminals to select maximum resistance or variable resistance.
• Fuse: 2 A.
• EH. Electric Heating Unit.
  This module can be used for various purposes.
• Load purpose: This module is used as a 700 W resistive load.
  EH
• FRECP. Eddy Current Brake.
• Maximum supply voltage: 60 VDC.
• Nominal current: 1.67 A.
• Maximum current: 1.8 A.
• Maximum braking torque: 1.4 Nm.
• Shaft height: 71 mm. FRECP
  14

Specifications

• EMT12. Universal Motor.
• Supply voltage: 110 – 240 VAC / VDC.
• Rated power: 0.3 HP.
• Speed: 9000 rpm.
• Shaft height: 71 mm.
• N-LAM16. Halogen Lamp Module.
  EMT12
• Rated voltage: 230 VAC (PH + N).
  Halogen lamp.
• Power: 60 W.
• Recommended additional elements (at least one) (Not included):
• ATENG 11425. Final User Smart Grid - Smart Meter Application.
• N-ALI01. Industrial Main Power Supply Module.
• Output voltage: 400 VAC, 3PH + N.
  N-LAM16
  Removable ON/OFF key.
• Output voltage connection:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
• Three-phase power cable with IP44 plug 3PN + E 32 A 400 V.
• 4-pole residual current circuit breaker, 25 A, 30 mA AC 6 kA.
  Emergency stop pushbutton.
  N-ALI01
• N-CTT. Data Concentrator Module.
• The communication concentrator consists of:
  A measurement system formed by a number of smart meters (in our case, there is a
  residential smart meter). The data concentrator communicates with the smart meter
  through a power line.
  Remote control system. It is a web platform that allows access to the data concentrator,
  visualization of all smart meters connected to the power line, configuration of
  different parameters, visualization of all electrical parameters of the load connected
  to each smart meter, etc.
  N-CTT
• Configuration and control software (web platform):
  The N-CTT module includes a web platform to control the smart meter.
• Therefore, the user can perform the following functions:
  Real-time monitoring, remote management, and network quality verification
  Relay switch to limit the maximum power consumed by the end user
  Bidirectional communication between the electric utility (the student) and the smart
• meter: the student can control and monitor the status of the loads and limit the
  maximum required power
• N-SM. Smart Meter Module.
• The N-SM module can perform the following measurements and controls:
  Current measurements.
  Voltage measurements.
  Active and reactive power measurements in four quadrants.
  Bidirectional active and reactive energy measurements in four quadrants.
  Power factor measurements.
  Smart relay controlled from the data concentrator’s web platform. N-SM
• ATENG 11426. Final User Smart Grid - Smart Energy Application.
• N-HPM. Domestic Power Module.
• Supply voltage: 230 VAC.
  Residual current circuit breaker (RCCB).
  Power meter.
  LED circuit energization indicator.
• 1x 230 VAC output socket.
  N-HPM
• 1x 230 VAC input socket (can be connected directly to the 230 VAC output).
  8x output power sockets.
  Ground terminal.
• Zmeter, wireless energy meter with circuit open/close capability:
  ON/OFF switch.
• 3.5 mm jack.
  2× AAA batteries.
• Detection range: 10 m.
• Transmission range: 100 m outdoors, 30 m indoors.
• Channels: 19 (2445 MHz), 20 (2450 MHz), 25 (2475 MHz).
  15

Specifications

• N-WLSM. Wireless Light Sensor Module.
• ZLUM light sensor:
  CR2032 lithium battery.
• Measurement range: 1–65536 lux.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405–2.480 GHz.
  Ground terminal.
  N-WLSM
• N-WSM. Wireless Switch Module.
  Ground terminal.
• Wireless switch:
  Five open/close commands.
  Temperature sensor.
  CR2032 lithium battery.
• Transmission range: 30 m indoors, 100 m outdoors.
  N-WSM
• 16 channels: 2.405–2.480 GHz.
• N-IOWM. Wireless Output Module (4 units).
• Supply voltage: 230 VAC.
• 2 A fuse.
  Ground terminal.
• 2× 230 VAC outputs.
  2× indicator lights to show output status.
  N-IOWM
  ZLight wireless module for opening/closing the outputs.
• Maximum power: 500 W.
• Operating voltage range: 85 – 263 V.
• Frequency: 50 – 60 Hz.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405–2.480 GHz.
• N-CON02. Three-Pole Contactor Module (230 VAC) (4 units).
  N-CON02
• Contactor coil voltage: 230 VAC.
• Power terminals:
  Three input power terminals.
  Three output power terminals.
• Auxiliary contacts:
  Three normally open (black).
  Three normally closed (red).
• PPINV. Photovoltaic Panel with Inverter.
  Used to simulate photovoltaic energy production.
• SWTI. Low-Power Wind Turbine with Inverter.
  Used to simulate wind energy production.
• ATENG 11426. Final User Smart Grid - Smart Energy Application.
• N-HPM. Domestic Power Module.
• Supply voltage: 230 VAC. SWTI
  Residual current circuit breaker (RCCB).
  Power meter.
  LED circuit energization indicator.
• 1x 230 VAC output socket.
• 1x 230 VAC input socket (can be connected directly to the 230 VAC output).
  8x output power sockets.
  Ground terminal.
  N-HPM
• Zmeter, wireless energy meter with circuit open/close capability:
  ON/OFF switch.
• 3.5 mm jack.
  2× AAA batteries.
• Detection range: 10 m.
• Transmission range: 100 m outdoors, 30 m indoors.
• Channels: 19 (2445 MHz), 20 (2450 MHz), 25 (2475 MHz).
  16

Specifications

• N-WLSM. Wireless Light Sensor Module.
• ZLUM light sensor:
  CR2032 lithium battery.
• Measurement range: 1–65536 lux.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405–2.480 GHz.
  Ground terminal.
  N-WLSM
• N-WSM. Wireless Switch Module.
  Ground terminal.
• Wireless switch:
  Five open/close commands.
  Temperature sensor.
  CR2032 lithium battery.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 channels: 2.405–2.480 GHz. N-WSM
• N-IOWM. Wireless Output Module (4 units).
• Supply voltage: 230 VAC.
• 2 A fuse.
  Ground terminal.
• 2x 230 VAC outputs.
  2x indicator lights to show output status.
  ZLight wireless module for opening/closing the outputs.
• Maximum power: 500 W. N-IOWM
• Operating voltage range: 85 – 263 V.
• Frequency: 50 – 60 Hz.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405–2.480 GHz.
• N-CON02. Three-Pole Contactor Module (230 VAC) (4 units).
• Contactor coil voltage: 230 VAC.
• Power terminals:
  Three input power terminals.
  Three output power terminals.
  N-CON02
• Auxiliary contacts:
  Three normally open (black).
  Three normally closed (red).
• PPINV. Photovoltaic Panel with Inverter.
  Used to simulate photovoltaic energy production.
• SWTI. Low-Power Wind Turbine with Inverter. N-CAR19
  Used to simulate wind energy production.
• Required elements (Not Included):
• AEL-FUSG-LO. Smart Grid (End User) – Smart Grid Loads.
• N-CAR19. Single-Phase Switchable Capacitor Module.
• Rated voltage: 230 VAC.
• Capacitance: 7 µF; 14 µF; 21 µF; 28 µF; 35 µF.
  Selector switch. N-ID
• N-IND. Single-Phase Inductance Module.
• Inductance: 1.4 H.
• Switch:
• Position 0: Open circuit.
• Position 1: Closed circuit.
• Fuse: 2 A.
  N-LAM32
• N-LAM32. Single LED Lamp Module.
• 24 VDC LED lamp.
• N-VVCC/M. DC Motor Speed Controller Module (Intermediate Option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A. N-VVCC/M
  17

Specifications

• N-REF. Single-Phase Fixed Resistance Module (4 units).
• Resistance value: 150 Ohms.
• Maximum power: 500 W.
• Selector:
• Position 0: Open circuit.
• Position 1: Closed circuit.
• Fuse: 2 A.
  N-REF
• N-REV. Single-Phase Variable Resistance Module.
• Variable resistance: 150 Ohms.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals to select maximum resistance or variable resistance.
• Fuse: 2 A.
  N-REV
• EH. Electric Heating Unit.
  This module can be used for various purposes.
• Load purpose: This module is used as a 700 W resistive load.
• FRECP. Eddy Current Brake.
• Maximum supply voltage: 60 VDC.
• Nominal current: 1.67 A.
• Maximum current: 1.8 A.
  EH
• Maximum braking torque: 1.4 Nm.
• Shaft height: 71 mm.
• EMT12. Universal Motor.
• Supply voltage: 110 – 240 VAC / VDC.
• Rated power: 0.3 HP.
• Speed: 9000 rpm.
• Shaft height: 71 mm.

FRECP

• N-LAM16. Halogen Lamp Module.
• Rated voltage: 230 VAC (PH + N).
  Halogen lamp.
• Power: 60 W.
• Recommended additional elements (at least one) (Not included):
• ATENG 11425. Final User Smart Grid - Smart Meter Application.
• N-ALI01. Industrial Main Power Supply Module.
  EMT12
• Output voltage: 400 VAC, 3PH + N.
  Removable ON/OFF key.
• Output voltage connection:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
• Three-phase power cable with IP44 plug 3PN + E 32 A 400 V.
• 4-pole residual current circuit breaker, 25 A, 30 mA AC 6 kA.
  Emergency stop pushbutton.
  N-LAM16
• N-CTT. Data Concentrator Module.
• The communication concentrator consists of:
  A measurement system formed by a number of smart meters (in our case, there is a
  residential smart meter). The data concentrator communicates with the smart meter
  through a power line.
  Remote control system. It is a web platform that allows access to the data concentrator,
  visualization of all smart meters connected to the power line, configuration of
  different parameters, visualization of all electrical parameters of the load connected N-ALI01
  to each smart meter, etc.
• Configuration and control software (web platform):
  The N-CTT module includes a web platform to control the smart meter.
• Therefore, the user can perform the following functions:
  Real-time monitoring, remote management, and network quality verification
  Relay switch to limit the maximum power consumed by the end user
  Bidirectional communication between the electric utility (the student) and the smart
• meter: the student can control and monitor the status of the loads and limit the
  N-CTT
  maximum required power
  18

Specifications

• N-SM. Smart Meter Module.
• The N-SM module can perform the following measurements and controls:
  Current measurements.
  Voltage measurements.
  Active and reactive power measurements in four quadrants.
  Bidirectional active and reactive energy measurements in four quadrants.
  N-SM
  Power factor measurements.
  Smart relay controlled from the data concentrator’s web platform.
• ATENG 11428. Final User Smart Grid - Net Metering Application.
• N-PFD. Power Distribution Module.
  This module is used to control the power flows coming from the generator and the grid
  to supply the loads.
  In addition, it includes an internal PLC to automatically control the measurement point
  through 3 switches.
  This module, together with the network analyzer (N-EALD), allows us to obtain the
  electrical parameters of the grid, the generator, and the loads to calculate Net Metering. N-PFD
• N-VVCA4K. 4 kW AC Motor Control Module.
  This module is used to control the motor that drives the electrical generator. With this
  module we simulate wind speed.
  It includes a potentiometer that allows controlling the motor speed (i.e., wind speed),
  enabling the user to increase or decrease the generated active power.
• Required power supply: 230 VAC.
  Control enable switch. N-VVCA4K
  Speed control potentiometer.
• Rated power: 4 kW.
• Three-phase output: PWM.
• N-ASY. Single-Phase Digital Synchronization Module.
  This module is used to synchronize the generator with the grid, enabling the user to
  inject energy and perform Net Metering.This module has a push button to enable
  synchronization and another push button to disable it.
• It also has a display that shows the following parameters:
  Grid frequency.
  Generator frequency. N-ASY
  Grid voltage.
  Generator output voltage.
  Grid and phase angle of the generator.
• N-VREG. Voltage Regulator Module.
• Power supply (Single-phase): 230 VAC PH + N + G.
  Output terminals for generator excitation connection.
• Analog ammeter: 0–10 A.
  Excitation enable switch.
• Fuse: 5 A.
  N-VREG
• N-ALI01. Industrial Main Power Supply Module.
• Output voltage: 400 VAC, 3PH + N.
  Removable ON/OFF key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
  N-ALI01
• Three-phase power cable with IP44 plug 3PN + E 32 A 400 V.
• 4-pole residual current circuit breaker, 25 A, 30 mA AC 6 kA.
  Emergency stop pushbutton.
  19

Specifications

• N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition.
  The network analyzer module allows measuring, visualizing, and analyzing all electrical
  parameters in AC power networks.
  It features an LCD display and navigation buttons, and includes dedicated software for
  voltage and current waveform monitoring, harmonic visualization, tariff programming,
  alarm programming, and storage of electrical parameters.
• Characteristics: N-EALD
• Multifunction three-phase power meter:
• Three-phase and single-phase voltage. Up to 690 VAC L-L.
• Nominal line and neutral current: 10 A.
  Active, reactive, and apparent energy.
• Compatible frequencies: 25 Hz, 50 Hz, 60 Hz, and 400 Hz.
  V–I vector diagram visualization.
• Supply voltage: 85–265 VAC.
• Power quality control:
  Individual current and voltage harmonic measurement up to the 40th.
  Voltage and current THD, current TDD, and K-Factor.
  Max/min visualization.
  Waveform display, 128 samples/sec.
• Events and data storage:
• Harmonic analyzer:
  Voltage and current THD, current TDD, and K-Factor up to the 40th harmonic.
  Harmonic spectrum of current and voltage with angles.
• Tariff programming:
  Class 0.5S IEC 62053–22, active and reactive power in four quadrants.
  Measurement of total and per-phase active, reactive, and apparent energy.
• Time-of-use: four total energy/demand registers.
  Eight tariffs, four seasons, and four types of days.
  Automatic daily report of maximum and minimum consumed energy.
• Communications:
  RS-485 communication port.
• GMG4K. 4 kW Generator - Motor Group.
• Induction motor:
• Rated power: 4 kW.
• Rated voltage: 380 VAC three-phase.
• Connection: star.
• Rated speed: 3000 rpm.
• Synchronous generator operating at 50 Hz:
• First rating:
• Rated power: 3.5 kVA.
  GMG4K
• Rated output voltage: 230 VAC single-phase.
• No-load excitation current: 1.4 A.
• Full-load excitation current: 4 A.
• Rated speed: 3000 rpm.
• Second rating:
• Rated power: 4.2 kVA.
• Rated output voltage: 230 VAC single-phase.
• No-load excitation current: 1.4 A.
• Full-load excitation current: 4 A.
• Rated speed: 3000 rpm.
• N-REL46. Thermal Protection Module for Electric Motor.
• Amperage: 6 to 10 A.
• Trip class: 10.
• Rated service voltage: 230/240 VAC; 400/415 VAC.
• Rated trip current: 10 A. N-REL46
  20

Specifications

• AEL-HE-EN. Home Energy Control Application.
• N-HPM. Home Power Module.
• Supply voltage: 230 VAC.
  Residual current circuit breaker (RCCB).
  Power meter.
  Circuit energization indicator LED.
• 1x 230 VAC output voltage socket. N-HPM
• 1x 230 VAC input socket (can be connected directly to the 230 VAC output).
  8x power output sockets.
  Ground terminal.
• Zmeter, wireless energy meter with circuit open/close capability:
  ON/OFF switch.
• 3.5 mm jack.
  2x AAA batteries.
• Detection range: 10 m.
• Transmission range: 100 m outdoors, 30 m indoors.
• Channels: 19 (2445 MHz), 20 (2450 MHz), 25 (2475 MHz).
• N-WSM. Wireless Light Detector Module.
  Ground terminal.
• Wireless switch:
  Five open/close commands.
  Temperature sensor.
  CR2032 lithium battery. N-WSM
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 channels: 2.405 – 2.480 GHz.
• N-IOWM. Wireless Output Module (2 units).
• Supply voltage: 230 VAC.
• 2 A fuse.
  Ground terminal.
• 2x 230 VAC outputs.
  2x indicator LEDs for output energization.
  N-IOWM
  ZLight, wireless module to control opening/closing of outputs.
• Maximum power: 500 W.
• Supply voltage range: 85 – 263 V.
• Frequency: 50 – 60 Hz.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405 – 2.480 GHz.
• N-WLSM. Wireless Light Detector.
• ZLUM light sensor:
  CR2032 lithium battery.
• Measurement range: 1 – 65536 lux.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405 – 2.480 GHz. N-WLSM
  Ground terminal.
• N-SEL04. Four Indicator LEDs Module.
• Supply voltage: 230 VAC.
• Colors: red and green.
  Ground terminal.
  N-SEL04
  21

Specifications

• AEL-HP-EM. Home Emergency Application.
• N-IOWM. Wireless Output Module (2 units).
• Supply voltage: 230 VAC.
• 2 A fuse.
  Ground terminal.
• 2x 230 VAC outputs.
  2x indicator LEDs for output energization.
  N-IOWM
  ZLight, wireless module to control opening/closing of outputs.
• Maximum power: 500 W.
• Supply voltage range: 85 – 263 V.
• Frequency: 50 – 60 Hz.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405 – 2.480 GHz.
• N-GASD. Wireless Gas Detector Module.
  This module is used to detect smoke and gas leaks. It emits an audible alarm when
  smoke or carbon monoxide is detected and sends a status signal to the software.
  Wireless communication.
• Button battery: 1.5 V.
• N-WLDM. Wireless Leak Sensor Module. N-GASD
• Water leakage sensor Zleak:
  CR2032 lithium battery.
• Transmission range: 100 m outdoors and 30 m indoors.
• Sixteen channels: 2.405 – 2.480 GHz.
• N-DET10. Water Solenoid Valve Module.
• Supply voltage: 230 VAC.
  Normally closed position. N-LEAK
• Maximum pressure: 1.5 MPa.
• N-DET12. Gas Solenoid Valve Module.
• Supply voltage: 230 VAC.
• Power: 14 W.
  Ground terminal.
  Automatic reset.
  N-DET10
• Maximum working pressure: 500 mBar.
• Closing time: 0.1 s.
• AEL-HP-SE. Home Security Application.
• N-WMSM. Wireless Motion Sensor Module.
• ZMOVE: wireless motion detector.
  Infrared detection up to 10 m.
• Horizontal range: 110°.
  N-DET12
• Vertical range: 93°.
  2x AA batteries.
• Transmission range: 100 m outdoors, 30 m indoors.
  Ground terminal.
• N-IOWM. Wireless Output Module (4 units).
• Supply voltage: 230 VAC.
• 2 A fuse. N-WMSM
  Ground terminal.
• 2x 230 VAC outputs.
  2x indicator LEDs for output energization.
  ZLight, wireless module to control opening/closing of outputs.
• Maximum power: 500 W.
• Supply voltage range: 85 – 263 V.
• Frequency: 50 – 60 Hz.
• Transmission range: 30 m indoors, 100 m outdoors.
• 16 transmission channels: 2.405 – 2.480 GHz.
  N-IOWM
  22

Specifications

• N-LAM16. Halogen Lamp Module.
• Rated voltage: 230 VAC (PH + N).
  Halogen lamp.
• Power: 60 W.
• N-WISM. Wireless Intrusion Sensor Module.
• ZDOOR sensor: N-LAM16
  CR2032 lithium battery.
  Fixed magnet on movable part of window/door.
  Sensor placed on fixed part, includes LED indicator and button.
• Transmission range: 100 m outdoors, 30 m indoors.
• 16 channels: 2.405 – 2.480 GHz.
• N-TIM05. Bell + Buzzer Module.
  N-WISM
• Supply voltage: 230 VAC.
• Bell sound: 70 dB.
• Buzzer sound: 80 dB.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
  N-TIM05
