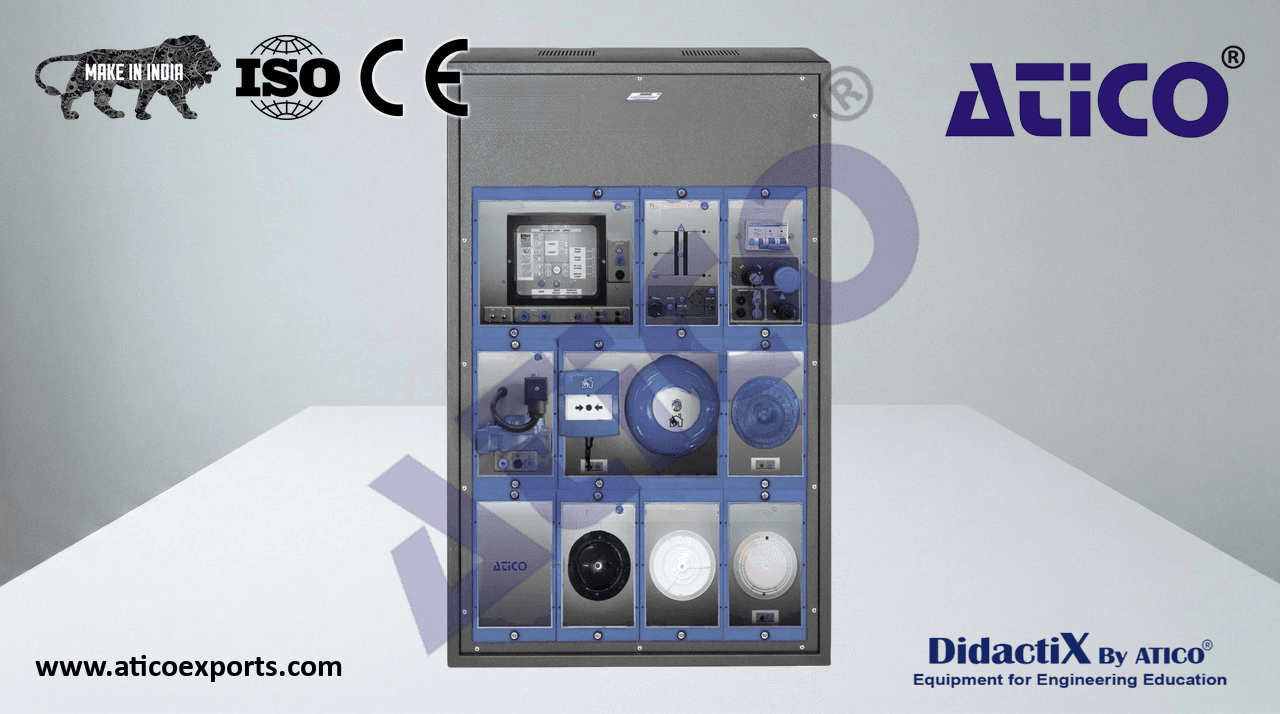

Fire Alarm Advanced Application

The Fire Alarm Advanced Application, "AEL–AD3A", to study different types of fire alarms.

ATENG 11063 — Fire Alarm Advanced Application

• The “ATENG 11063” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single–phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose with connecting plug. N–ALI02
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module
• Voltage supply (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single–Phase 24 VAC / 12 VAC.
• 24 VDC.
• 0 – 24 VDC through potentiometer. N–ALI03
• N-ALA02. Battery Powered Fire Alarm Station Module.
  Two control zones.
• Voltage supply: 230 VAC.
  Ground connection.
  Input to activate the remote reset.
  N–ALA02
  Input to deactivate the programmed delays.
  Normally open fail contactor.
  Normally open alarm contactor.
• N-SEL21. Indoor Siren Module.
• Volume configuration through voltage: 12 – 24 VDC.
  87 – 112 dB.
  12 – 30 mA.
  32 tones.
  N–SEL21
• N-SEL17. Fire Indicator Module & Bell.
• Voltage supply: 19 – 28 VDC.
  Current consumption 20 mA.
• Sound output: 95 dB.
  Range of temperature from -10 to + 55 °C.
• Push-button: N–SEL17
• Inner resistor: 100 Ohm.
• Maximum current/voltage ratio: 2 A / 30 VDC.
• N-DET06. Smoke Detector Module for Domestic Control.
• Output voltage: 9 – 28 VDC.
  Consumption of 85 uA in standby and <100 mA in alarm.
  N–DET06
  Operation temperature from -10 to 70 °C.
• N-DET10. Water Solenoid Valve Module.
• Voltage supply: 230 VAC.
  Normally closed position.
• Maximum pressure: 1.5 MPa.
  N–DET10
  3

Specifications

• N-DET21. Fire Detector Module with Lonization.
• Working voltage: 9 – 28 VDC.
  Current of 85 uA in standby and <100 mA in alarm.
  Operation temperature from -10 to 70 °C.
• N-DET22. Thermal Fire Detector Module. N–DET21
• Operation voltage: 9 – 28 VDC.
  Current of 85 uA in standby and <100 mA in alarm.
• Pre-warning indication: LED flickering.
• Alarm indication: fixed LED.
  Operation temperature from -10 to 70 °C.
  N–DET22
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
