Fire Alarm Application

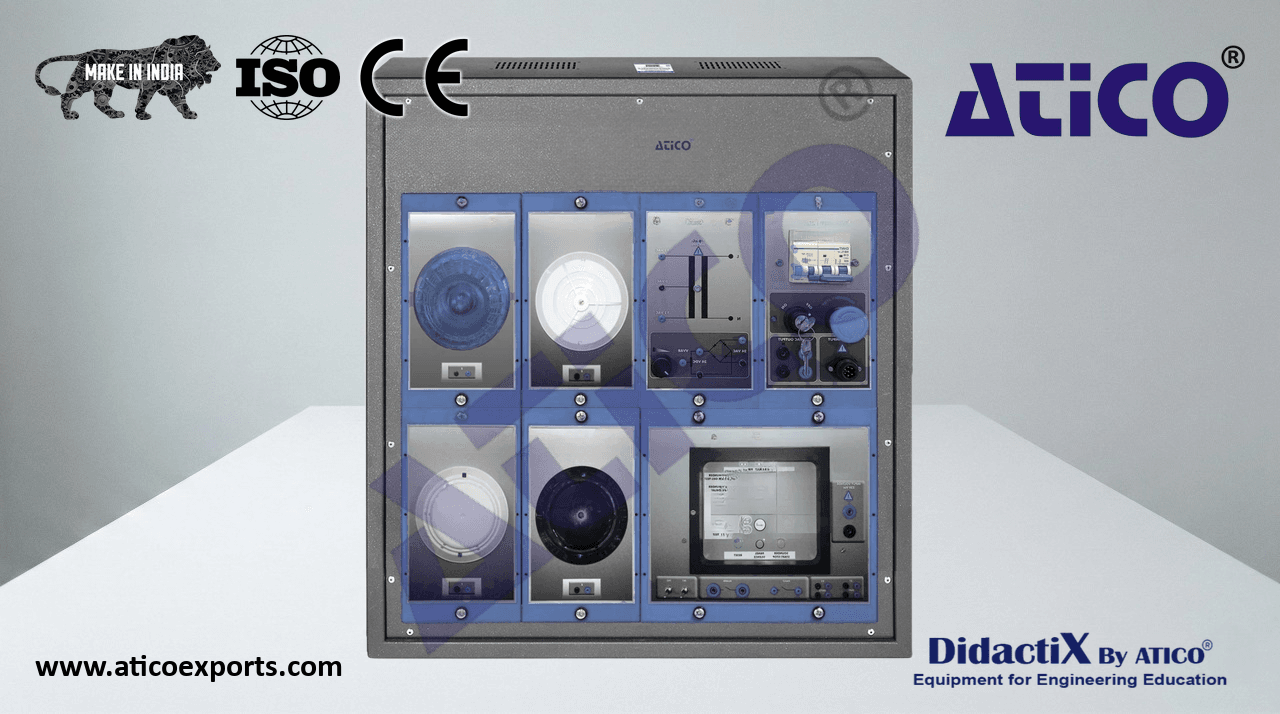

The Fire Alarm Application, to study different types of fire alarms. This application includes several types of sensors and one alarm.

ATENG 11065 — Fire Alarm Application

• The “ATENG 11065” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
  N-ALI02
• Two single-phase: 230 VAC.
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-phase 24 VAC / 12 VAC.
  N-ALI03
• 24 VDC.
• 0 – 24 VDC through potentiometer.
• N-ALA02. Battery Powered Fire Alarm Station Module.
  Two control zones.
• Voltage supply: 230 VAC.
  Ground connection.
  N-ALA02
  Input to activate the remote reset.
  Input to deactivate the programmed delays.
  Normally open fail contactor.
  Normally open alarm contactor.
• N-SEL21. Indoor Siren Module.
• Volume configuration through voltage: 12 – 24 VDC.
  87 – 112 dB.
  12 – 30 mA.
  N-SEL21
  32 tones.
• N-DET06. Smoke Detector Module for Domestic Control.
• Output voltage: 9 – 28 VDC.
  Consumption of 85 uA in standby and <100 mA in alarm.
  Operation temperature from -10 to 70 °C.
  N-DET06
  3

Specifications

• N-DET21. Fire Detector Module with Lonization.
• Working voltage: 9 – 28 VDC.
  Current of 85 uA in standby and <100 mA in alarm.
  Operation temperature from -10 to 70 °C.
  N-DET21
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
