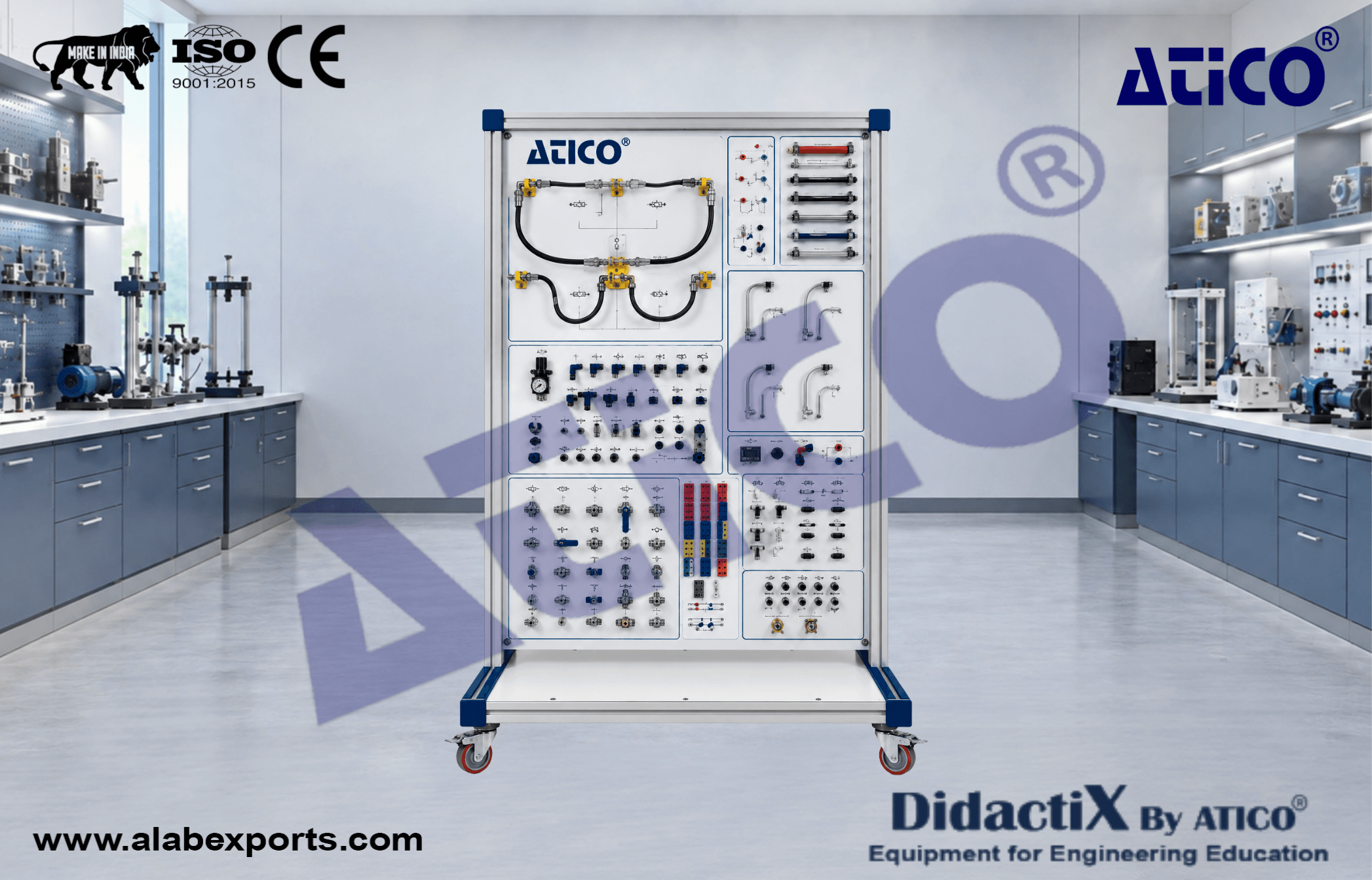

The Fittings and Fluid Lines Training Set demonstrates multiple types of fluid line fittings and their assembly techniques. It displays aircraft standards for assembling, routing, and supporting fluid lines. Examples of frequently made mistakes are also shown to help trainees identify and avoid incorrect practices.
The training set is operated by a switch that allows air pressure from a reservoir to operate an actuator.
Components and hoses are mounted on both the front and back of the vertical panel.
Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.
Components :
- Teflon Hose
- Fire-Resistant Hose
- Rubber Hoses
- Standard Hose
- Aluminum Tube, min. 8 mm diameter
- Aluminum Tube, min. 10 mm diameter
- Steel Tube, min. 8 mm diameter
- Steel Tube, min. 10 mm diameter
- Hose Nipple Pipe Thread
- Elbow
- Bushing, Pipe Thread Reducer
- Bushing, Pipe Thread Reducer
- Cap
- Nut, Sleeve, Coupling
- Cross, Flared Tube
- Elbow, Flared Tube and Pipe Thread, 90°
- Elbow
- Elbow, Flared Tube and Pipe Thread, 45°
- Elbow, Flared Tube Bulkhead and Universal, 90°
- Hose Elbow, Pipe Thread, 45°
- Elbow, Internal and External Pipe Thread, 90°
- Elbow, Flared Tube, 90°
- Brass Union Nut AN805-2
- Nipple, Flared Tube and Pipe Thread
- Nipple, Pipe Thread
- Nipple
- Nut Coupling
- Aluminum Nut
- Flared Tube Plug
- Plug and Bleeder Screw Thread
- Plug, Square Head, Pipe Thread
- Plug, Countersunk
- educer, External Thread
- Tee, Flared Tube
- Tee, Flared Tube and Pipe Thread on Side
- Tee, Internal Pipe Thread
- ---Tee, Flared Tube, Bulkhead and Universal
- Male Elbow
- Male Plug
- Female Plug
- Male Cross
- Nipple
- Cap
- Sleeve
- Nut
- Straight
- Female Run Tee
- Male Run Tee
- Female Elbow
- Adaptor
Nylon / Poly Fittings :
- Minimum 18 pieces
- Tee
- Five (5) different types of Tube-to-Pipe
- Elbow
- Four (4) different types of Tube-to-Pipe
- Adapter
- Five (5) different types of Tube-to-Pipe
- Connector
- Four (4) different types of Tube-to-Pipe
Clamps & Identification :
- Stepless Screw Clamp, 2 Sizes
- Identification of Aircraft Fluid Lines
Dimensions and Weight :
- Height: 195 cm
- Width: 110 cm
- Depth: 60 cm
- Weight: 70 kg
