FLAT PLATE BOUNDARY LAYER MODEL - SUBSONIC

A flat boundary layer model to illustrate the phenomena of boundary layer development and separation. For use with the Subsonic Wind Tunnel.

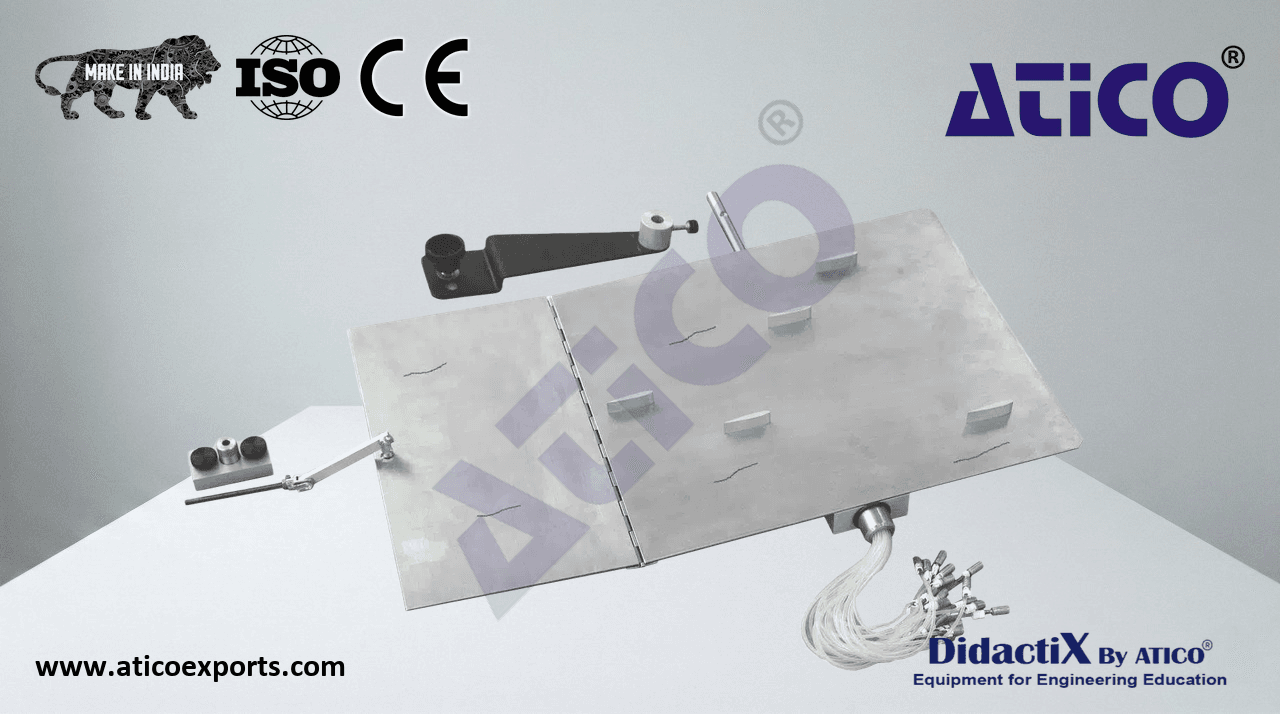

Shows boundary layer development and separation. The model is a flat plate that spans the full width of the wind tunnel working section. It has aerodynamically shaped blocks mounted across the plate at different distances from the leading edge. Learn about FLAT PLATE BOUNDARY LAYER MODEL - SUBSONIC aerodynamics India for optimal educational outcomes.. Each block has five tapping points at different heights along its leading edge. Each tapping connects to flexible, numbered tubing that routes outside the wind tunnel. Learn about FLAT PLATE BOUNDARY LAYER MODEL - SUBSONIC for educational labs for optimal educational outcomes.. Students can connect the tubes to other optional pressure measurement instruments.
