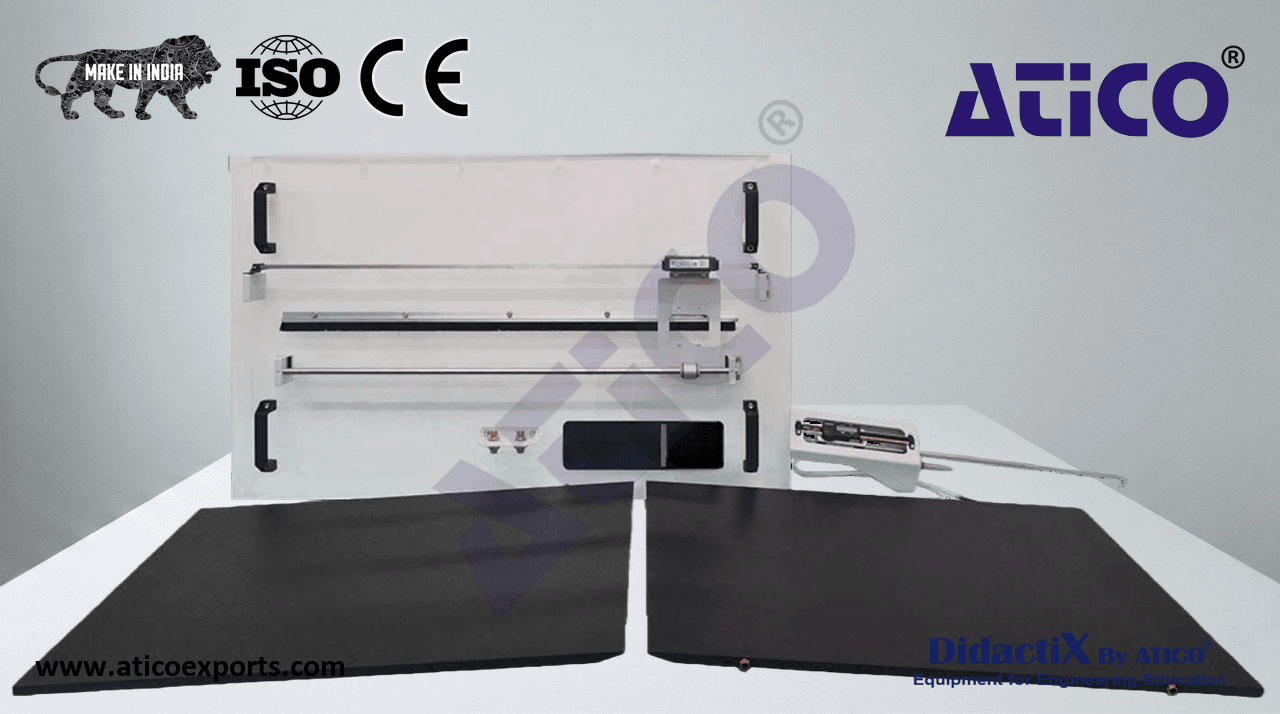

FLAT PLATE BOUNDARY LAYER MODEL

A flat boundary layer model to illustrate the phenomena of boundary layer development and separation. For use with the Subsonic Wind Tunnel.

Shows boundary layer development and separation. The model is a flat plate that spans the full width of the wind tunnel working section. It has aerodynamically shaped blocks mounted across the plate at different distances from the leading edge. Learn about FLAT PLATE BOUNDARY LAYER MODEL suppliers for optimal educational outcomes.. Each block has five tapping points at different heights along its leading edge.
