Flooding Control Application

The Flooding Control Aplication, to know and study the operation of the most common flooding control systems.

ATENG 11071 — Flooding Control Application

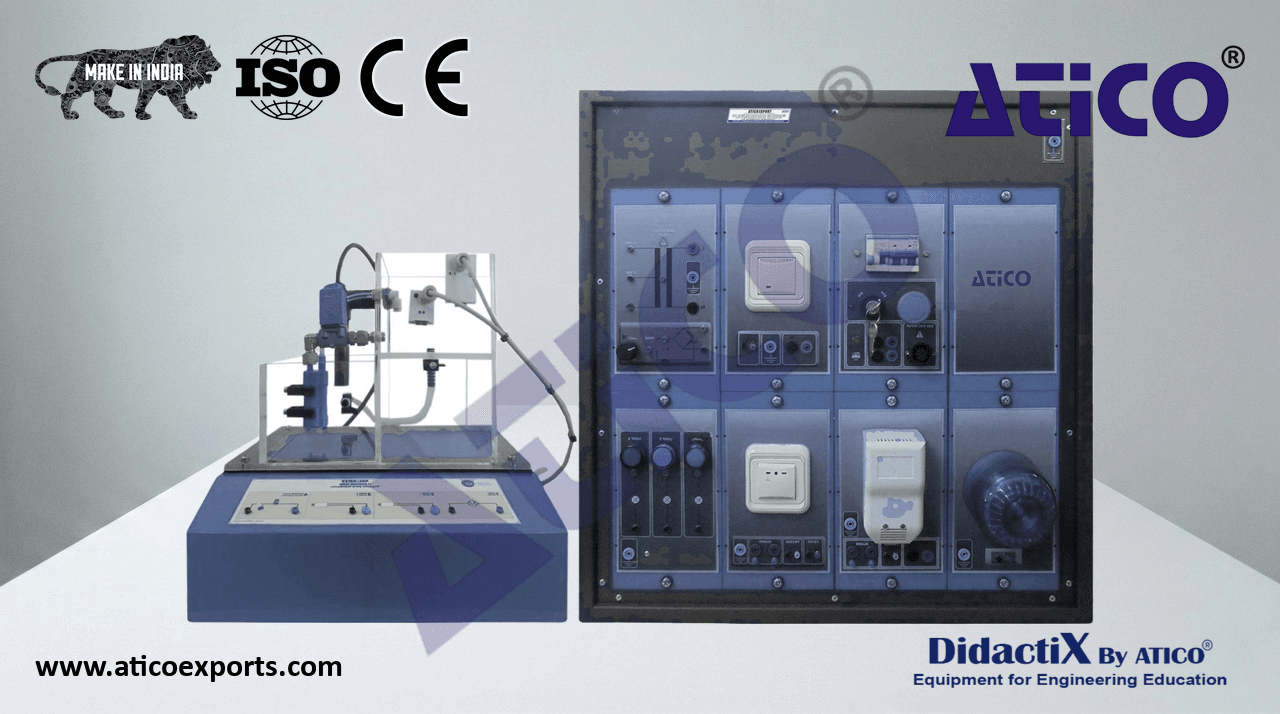

• The application “ATENG 11071” includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single–phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  N-ALI02
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-DET03. Fitted Power Supply Module (gas and flooding detector).
• Voltage supply: 230 VAC.
• Output voltage: 12 VAC.
  Ground connection.
  Service LED.
  N-DET03
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Voltage supply (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single–Phase 24 VAC / 12 VAC.
• 24 VDC.
  N-ALI03
• 0 – 24 VDC through potentiometer.
• N-SEL21. Indoor Siren Module.
• Volume configuration through voltage: 12 – 24 VDC.
  87 – 112 dB.
  12 – 30 mA.
  32 tones.
  N-SEL21
• N-DET01. Flooding Detector Module.
• Voltage supply: 230 VAC
• Frequency: 50 / 60 Hz.
• Power: 5 W.
  Alarm LED.
  N-DET01
  One input for probe.
  Two alarm outputs.
  Connectable to the solenoid valve.
  Status LED.
• N-DET04. Fitted Flooding Detector Module.
• Voltage supply: 12 VAC.
  One input for probe.
  Two alarm outputs.
  Alarm and status LED.
  N-DET04
  Acoustic alarm.
  3

Specifications

• N-SEL03. Three Pilots Light Module.
• Voltage supply: 24 VAC.
• Colors: red, yellow and green.
• All necessary cables to realize the practical exercises are included.
  N-SEL03
  Cables and accessories, for normal operation.
