Flow – Level – Pressure – Temperature Regulation Bench

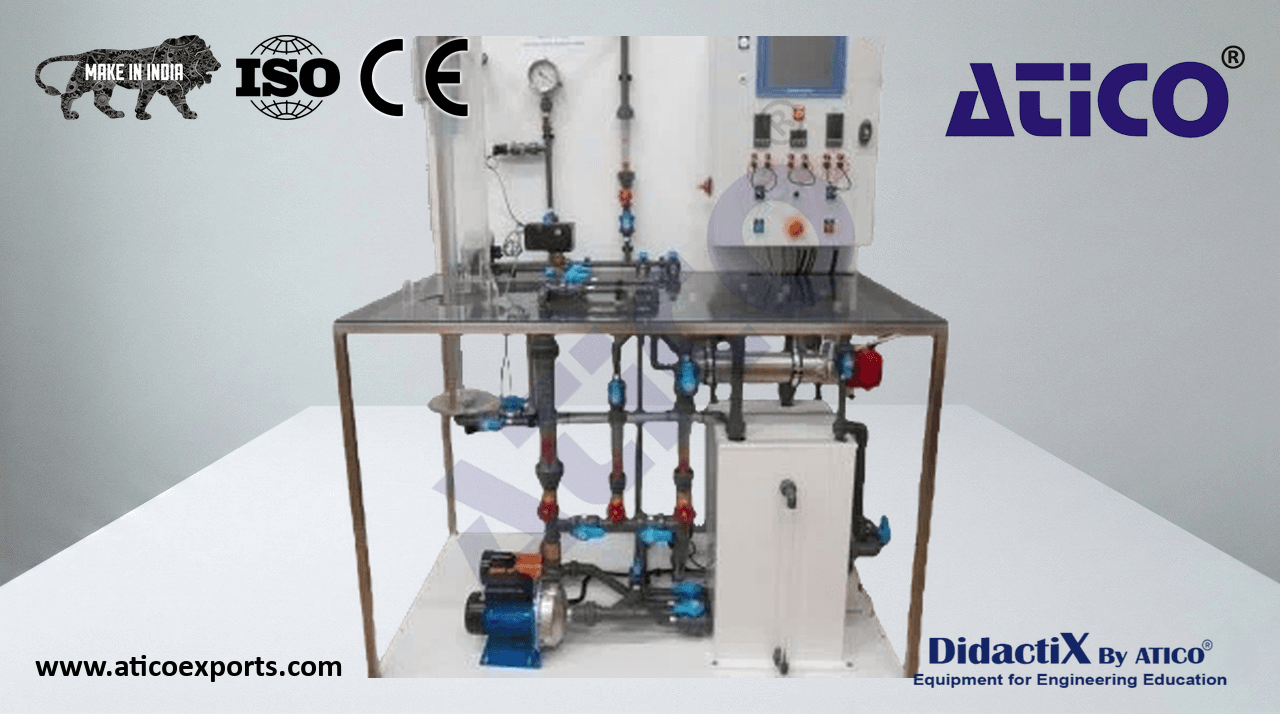

The bench consists of a common module (supply tank, pump, electrical cabinet) and specific instrumentation for each loop to be studied (actuator, pneumatic valve, static power unit, measurement, differential pressure sensor, Pt100 probes, paddle flow meter). The student can select the loop via a multi-position commutator and measure regulator inputs/outputs. Educational Objectives: Level regulation (1st order and integrating process), pressure regulation, temperature regulation, flow regulation, cascade temperature/flow regulation, on/off temperature regulation, static response study, open and closed loop identification, level sensor calibration. Learn about Flow – Level – Pressure – Temperature Regulation Bench price for optimal educational outcomes..

**Technical

Specifications**

Composition:

• 50-liter supply tank with tapping and overflows at two levels
• Stainless steel coil for water heating in the tank
• Altuglas column (height 1. 2 m, diameter 200 mm) with overflow, graduated scale, drain, and tapping
• Centrifugal pump (1 m³/h at 10 m head, 0. 37 kW, 380V three-phase)
• Master regulator with universal input, 4–20 mA output, and algorithms P, PI, PID, PD + MR, auto/manual, self-adaptive, triple display (PV/output/setpoint), RS485 card
• Slave regulator with RS485 card
• Additional temperature regulator
• Proportional pneumatic valve
• I/P converter
• Pressure sensor (4–20 mA output)
• Paddle flow meter (4–20 mA output)
• Four float-type flow meters (200–2000 L/h, 150–1500 L/h, 40–400 L/h)
• Pressure measurement sensor (4–20 mA) at the base of the water column
• Immersion heater (6 kW) with thermostat
• Two Pt100 temperature sensors with 4–20 mA transmitters
• IP66 electrical cabinet with regulators, pump protection and command, multi-position commutator for regulator I/O assignment, thermostat, static power unit, converters, sensor power supplies
• Secured double-well terminals for regulator I/O access

Option – Acquisition module: 9. 7'' touchscreen with synoptic display and real-time values; USB port for CSV data export compatible with spreadsheet software.
