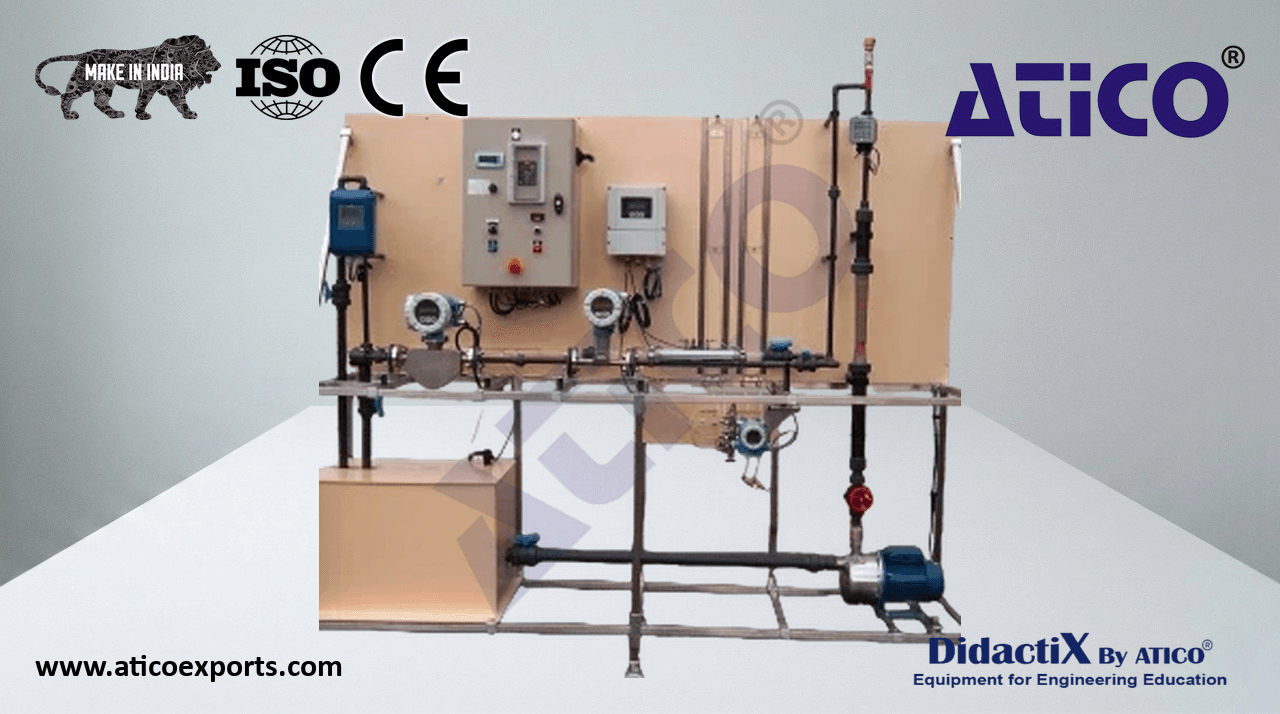

Flow Measurement Bench

This bench enables the study of industrial flow meters by comparing their measurement techniques and accuracy. Learning Objectives: Study of sensor installation. Study of different application cases. Learn about Flow Measurement Bench price for optimal educational outcomes.. Sensor calibration. Determination of sensor characteristic curves and accuracy. Learn about Flow Measurement Bench for educational labs for optimal educational outcomes..

A centrifugal pump draws an incompressible fluid (water) from a buffer tank and distributes it via a membrane control valve and rotameter to two pipe sections with different flow sensors: a paddle flow meter, electromagnetic flow meter, and vortex flow meter on one section; a Venturi tube and normalised orifice plate (both connected to a differential pressure sensor) on the other. The fluid circulates in a closed loop back to the buffer tank.

One tank with drain and draw-off point; one three-phase stainless steel centrifugal pump.
One variable speed drive allowing pump speed regulation based on a flow setpoint from one of the flow meters.
One rotameter.
One pipe section with selector valve containing: a paddle flow meter (for low-viscosity liquids) — a plastic vane turbine rotates under the effect of flow; a detector transmits the rotational speed, and the associated electronics convert the frequency to instantaneous flow; a vortex flow meter — a body inserted in the flow generates downstream vortices whose shedding frequency is proportional to volumetric flow; transmitter with 4–20 mA output and local display.
One pipe section with selector valve containing: a Venturi tube, DN25, in acrylic with U-tube manometer and differential pressure sensor port; a normalised orifice plate, DN25, in acrylic with U-tube manometer and differential pressure sensor port; a differential pressure sensor, 4–20 mA output, connected to an indicator with square-root extraction for flow determination.
One vertical pipe section with an electromagnetic flow meter for conductive liquids — a voltage induced in the fluid is picked up by two measurement electrodes and the signal converter determines fluid velocity; transmitter with 4–20 mA output and local display.
One IP55 sealed electrical cabinet containing: a lockable isolator, power indicator light, key-operated emergency stop, variable speed drive; a 4-position selector to choose the flow meter input to the controller.
