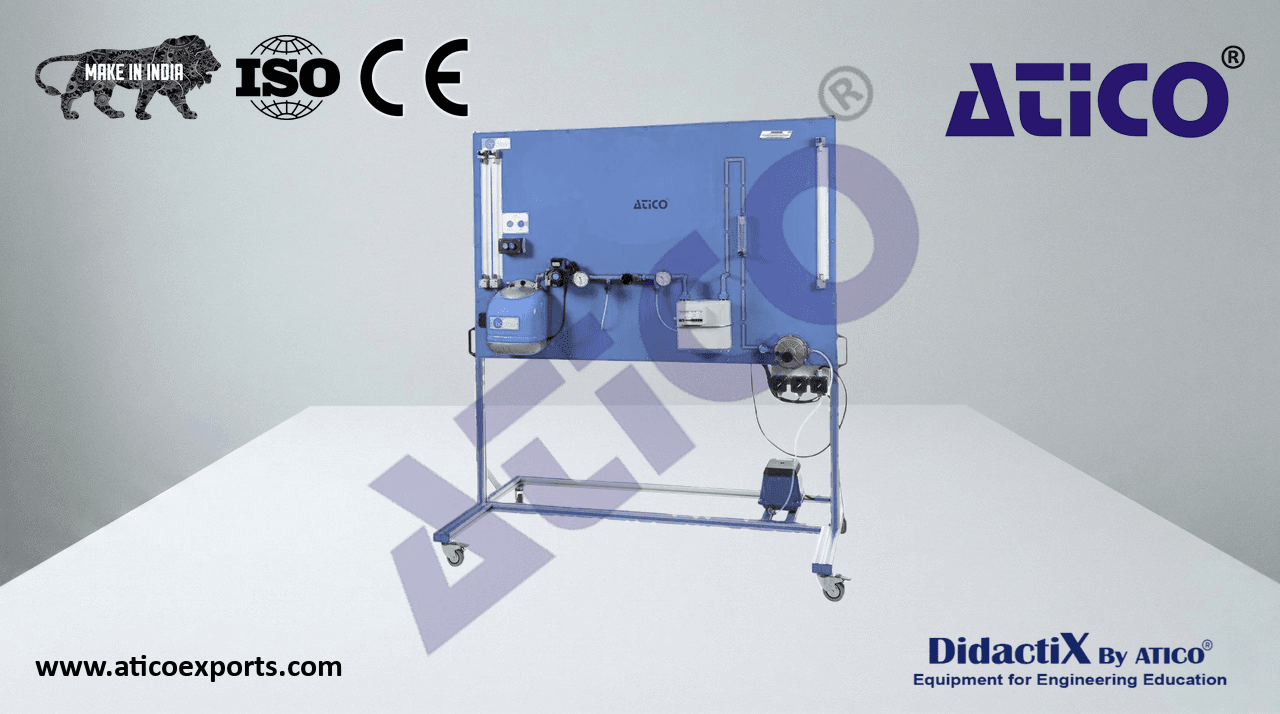

ATENG 12962 — Forced Draft Gas Burner Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Components of the gas line:
Relief valve.
Pressure stabilizer.
- Home gas meter. Maximum flow: 6 Nm³/h.
Flow control valve.
- Compressor:
- Diaphragm pump. Power: 62 kW.
ATENG 12962 detail
- Maximum flow rate: 95 l/min.
- Maximum pressure: 0.4 bar.
- Gas burner:
- Forced air gas burner. Thermal power: 5 – 45 kW.
Inlet valve of the gas burner.
Forced air fan.
Flame detector.
Thermostat.
Air minimum pressure switch.
Gas minimum pressure switch.
- Measurements:
- Pressure manometers:
Analog manometer and tube manometer in the gas line.
Analog manometer and tube manometer in the gas burner inlet.
Tube manometer for minimum inlet pressure.
- Air flow meter. Range: 0 – 35 l/min.
- Additional tools:
Flat-blade screwdriver to regulate the pressure regulator.
Star screwdriver to regulate the pressure switches.
Cables and accessories, for normal operation.
