The Gas and Smoke Detection Application, to study the operation of a gas leak detection and fire prevention system.

ATENG 11072 — Gas and Smoke Detection Application

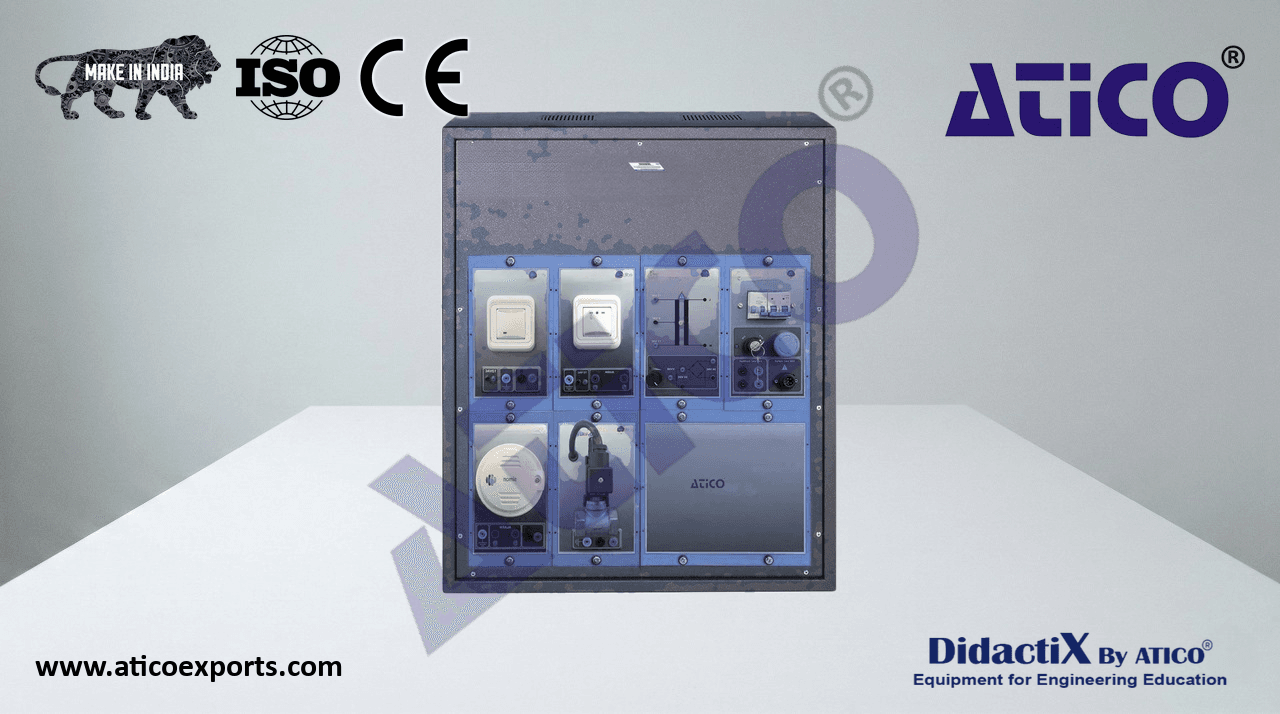

• The application “ATENG 11072” includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  N-ALI02
  Single-shase supply hose connecting plug.
• Differential magnetothermal, 2 poles, 25 A, 30 mA AC, 6 KA.
  Emergency stop push-button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-phase 24 VAC / 12 VAC.
• 24 VDC.
• 0 – 24 VDC through potentiometer.
  N-ALI03
• N-DET02. Gas Detector Module.
• Voltage supply: 12 VAC.
  Four alarm output terminals.
  Acoustic alarm indicator.
  Status indicator light.
  Test button. N-DET02
• N-DET03. Fitted Power Supply (gas and flooding detector) Module.
• Voltage supply: 230 VAC.
• Output voltage: 12 VAC.
  Ground connection.
  Service LED.
  N-DET03
• N-DET36. Smoke Detector Module.
• Voltage supply: 230 VAC.
  Four alarm output terminals.
  Alarm sound and status LED.
  N-DET36
• N-DET12. Gas Solenoid Valve Module.
• Voltage supply: 230 VAC.
• Power: 14 W.
  Ground connection.
  Automatic reset.
• Maximum pressure: 500 mBar. N-DET12
• Closing time: 0.1s.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
