Gas Turbine Mini Jet Engine Training Set

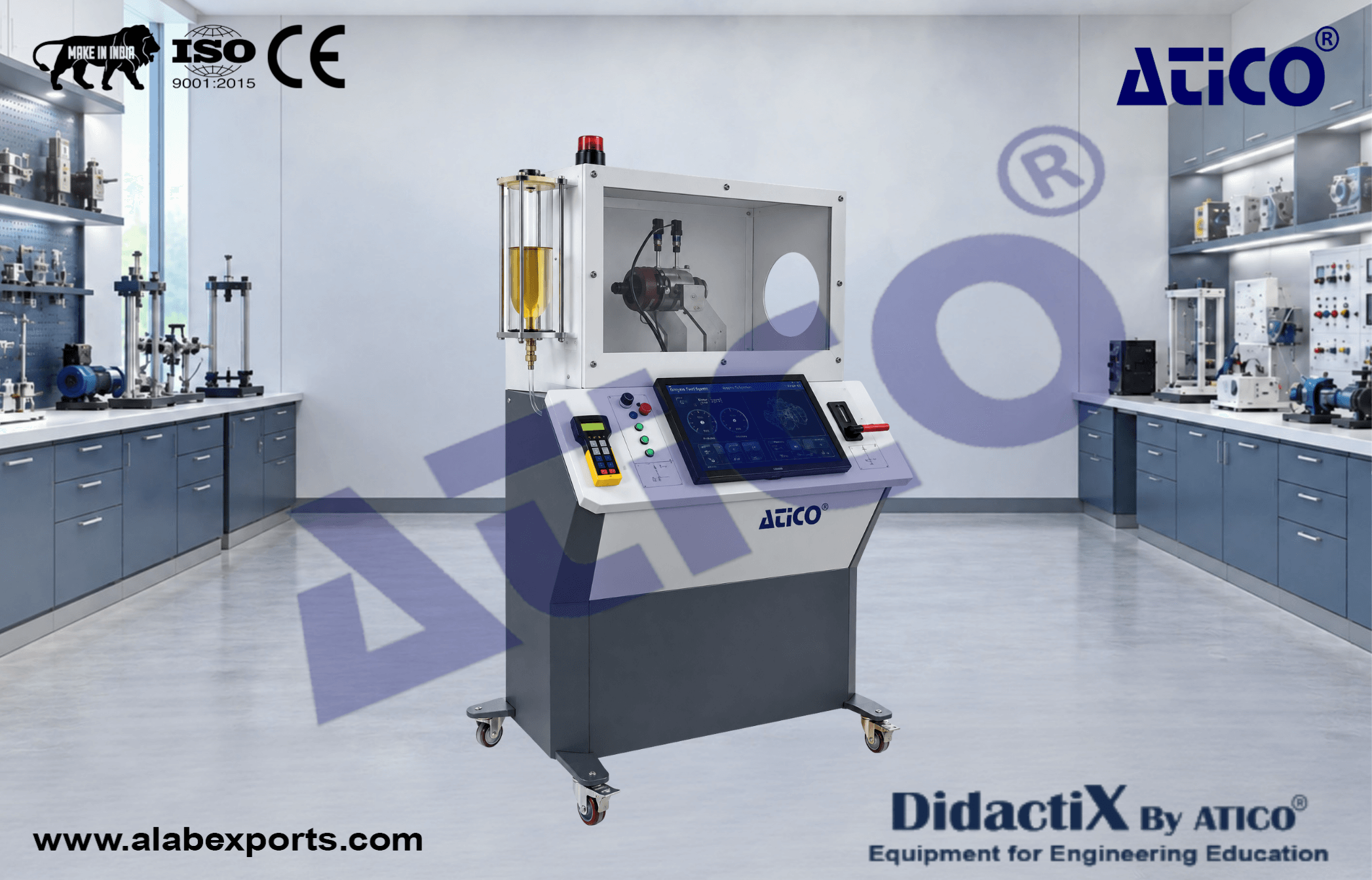

The Gas Turbine Mini Jet Engine Training Set is used to analyze the working principles of a computer-controlled gas turbine engine and fluid mechanics. The training set examines specific thrust, fuel consumption, and air/fuel ratio of a gas turbine jet engine, along with open-cycle operating principles.

It comprises a single-shaft gas turbine, fuel system, starter, ignition system, measurement equipment, and control equipment. The single-shaft gas turbine includes a radial compressor, axial gas turbine, circular combustion chamber, and nozzle.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Indicator LCD :

• RPM Gauge
• P2, P3, T1, T2, T3, T5 Gauges
• Thrust Gauge
• Fuel Flow Gauge
• Caution Panel

Sensors :

• Thrust Sensor (0-500 Newton)
• P2 Pressure Sensor
• P3 Pressure Sensor
• T1 Temperature Sensor
• T2 Temperature Sensor
• T3 Temperature Sensor
• T5 Temperature Sensor
• Fuel Flow Sensor

Gas Turbine Engine :

• Max RPM: 125,000
• Idle RPM: 33,000
• Fuel Consumption: 35–50 L/h
• EGT: 0–700°C

Control Panel :

• Master Switch
• Master Lamp
• Trim Switch
• Engine Start Switch
• Automatic Stop Switch
• Emergency Stop Switch
• Beacon Switch
• Computer ON/OFF

General :

• Delivered fully assembled, tested, and ready to operate.
• AC power 220/110 Volt required.
• Dimensions (L × W × H): 150 × 120 × 180 cm

Documentation :

• User’s Manual
• Students’ Study Guide
• Computer-Based Training
• Wiring Diagrams
• Flow Schematics
• Components Diagrams
• Instructor’s Training Resources

• Movable platform
• Starter engine
• Ignition plug
• Fuel tank
• Fuel pump
• Fuel filter
• Fuel valve
