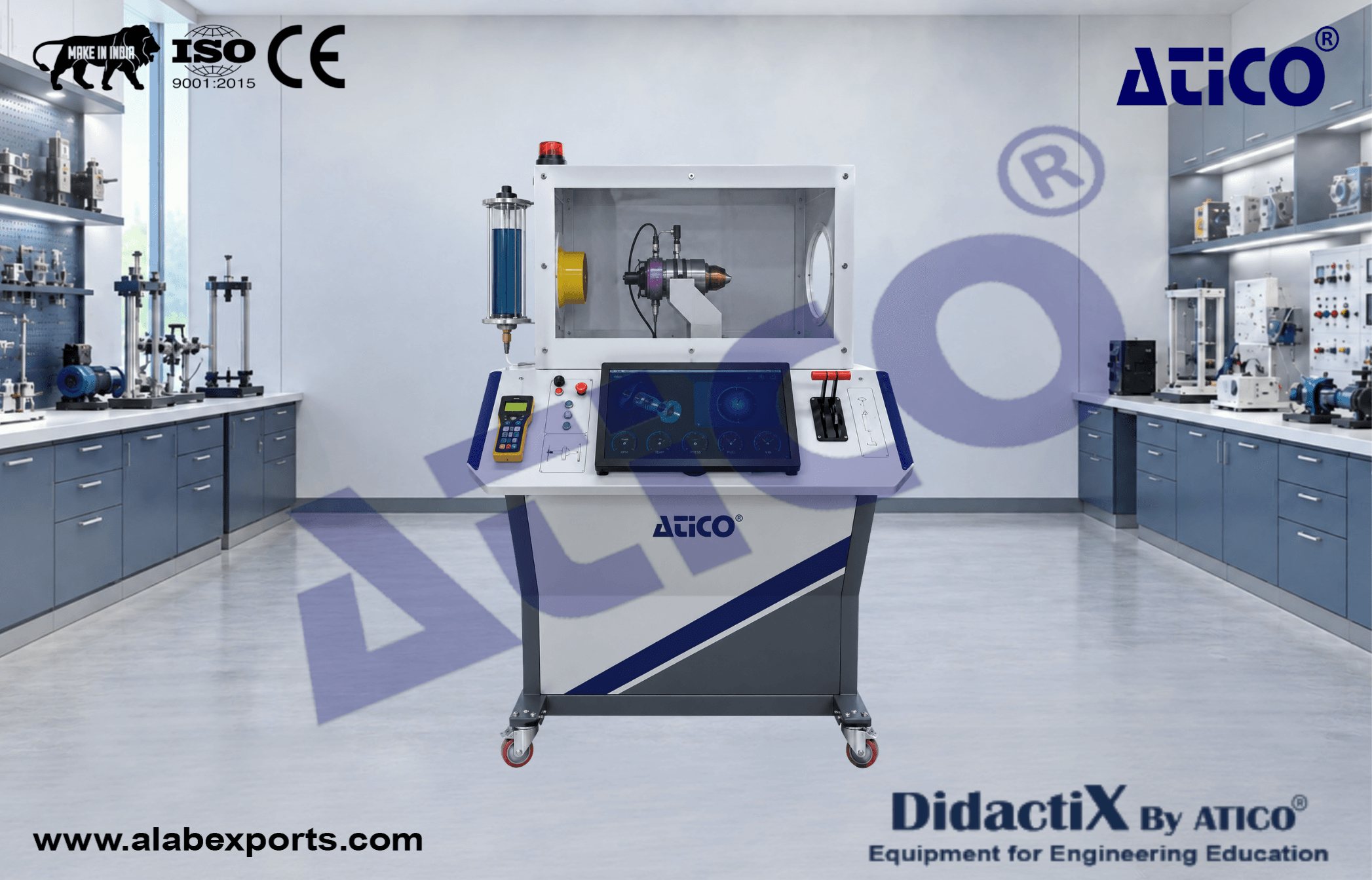

Gas Turbine Mini Jet Engine Training Set Less Sensors

The Gas Turbine Mini Jet Engine Training Set is used to analyze the working principles of a computer-controlled gas turbine engine and fluid mechanics.

The training set examines specific thrust, fuel consumption, and air/fuel ratio of a gas turbine jet engine and open-cycle operating principles. It comprises a single-shaft gas turbine, fuel system, starter, ignition system, measurement equipment, and control equipment.

The single-shaft gas turbine includes a radial compressor, axial gas turbine, circular combustion chamber, and nozzle.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Indicator LCD :

• RPM Gauge
• T1 (Air Inlet) and T5 (EGT) Gauges
• Thrust Gauge
• Fuel Flow Gauge

Caution Panel :

• Caution Panel

Gas Turbine Engine :

• Max RPM: 125,000
• Idle RPM: 33,000
• Fuel Consumption: 35–50 L/h
• EGT: 0–700°C

Sensors :

• Thrust Sensor (0-500 Newton)
• P2 Pressure Sensor
• T1 Temperature Sensor
• T5 Temperature Sensor
• Fuel Flow Sensor

Control Panel :

• Master Switch
• Master Lamp
• Trim Switch
• Engine Start Switch
• Automatic Stop Switch
• Emergency Stop Switch
• Beacon Switch
• Computer ON/OFF

Construction & Training :

• The system is mounted on a metal/aluminum mobile stand.
• Metal/aluminum frame with 4 wheels. 2 of 4 wheels are lockable.
• Training video for teachers
• Delivered fully assembled, tested, and ready to operate

Documentation :

• User’s Manual
• Study Guide
• Instructor’s Guide
• Components Diagrams

Power Specs :

• Electrical box
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC 60 Hz or 220-240 VAC 50 Hz

Dimensions and Weight :

• Height: 170 cm
• Width: 120 cm
• Depth: 75 cm
• Weight: 130 kg

• Movable platform
• Starter engine
• Ignition plug
• Fuel tank
• Fuel pump
• Fuel filter
• Fuel valve
