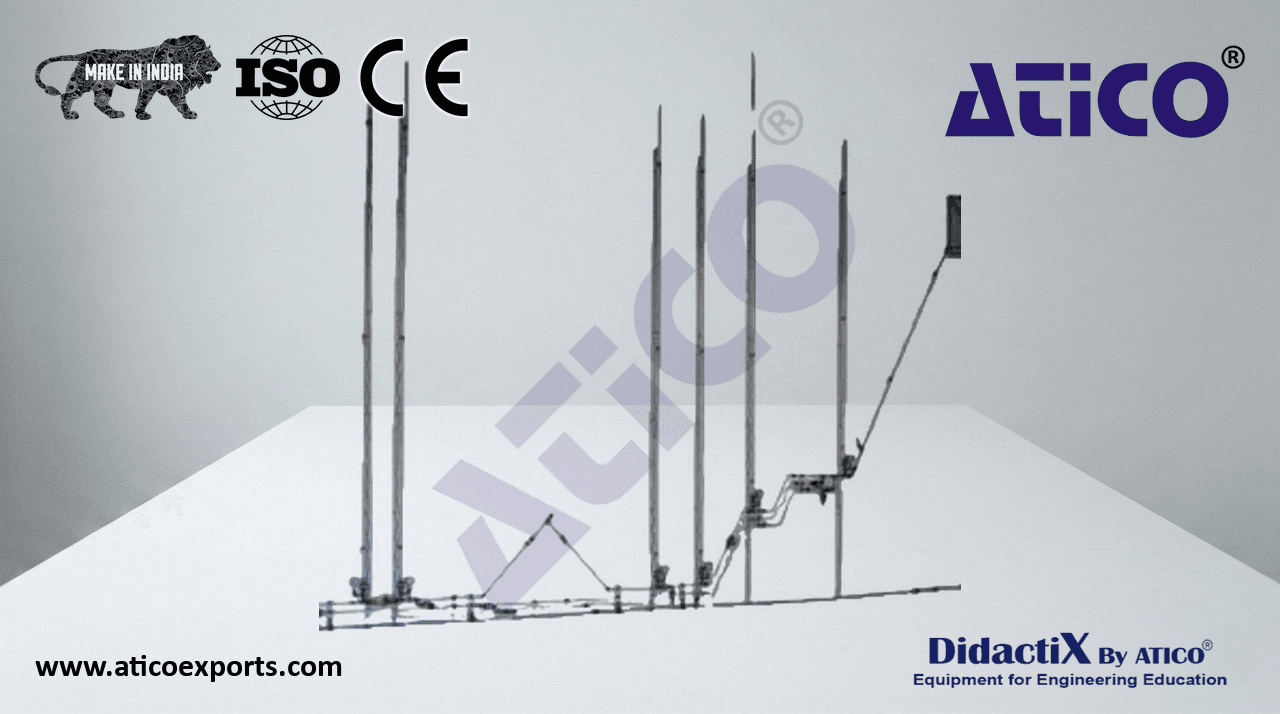

Gravitational Drinking Water Supply System Study / Hydraulic Behaviour Visualisation of a Water Distribution and Supply Network

Realistic implementation of a pump-fed drinking water supply system. This study bench enables work under highly realistic conditions on fluid dynamics concepts relevant to all types of industrial processes, particularly water conveyance. Learning Objectives: Determination of reference planes, piezometric lines, and energy lines for a given flow. Characterisation of pressurised flows during transient regimes. Water treatment by chlorination. Comparison of management systems for such an installation.

1 lower water reservoir with low-level alarm, 2 return nozzles, drain valve, bypass valves, and transparent cover. 1 centrifugal stainless steel body drainage pump.

1 lower water reservoir fitted with: 1 low-level alarm; 2 return nozzles; 1 drain valve; 1 set of bypass valves; 1 transparent protection cover.
1 centrifugal stainless steel body drainage pump.
1 water treatment system comprising: a chlorine feed tank with drain valve; 1 variable-speed peristaltic chlorine dosing pump with potentiometer control.
1 pump-fed pressurised reservoir supply pipe with: 1 single-jet velocity water meter; 1 control valve.
1 external-feed pressurised reservoir supply pipe with: 1 DN25 PVC pipe; 1 volumetric water meter; 1 solenoid valve; 1 pressure tapping.
1 pressurised tank fitted with: 1 low-level alarm; 1 high-level alarm; 1 pumping station inlet; 1 overflow return to pumping station; 1 distribution network outlet; 1 transparent protection cover.
1 pressurised tank overflow pipe with 1 DN32 pipe.
1 gravitational distribution network: approximately 15 m developed length in DN20 PVC pipe; 1 set of draw-off nozzles; 1 set of isolation valves; 1 set of flow control valves; 1 set of drain and bleed valves; construction adapted to building structure.
1 return pipe from the network end to the reservoir.
1 peristaltic pump variable speed drive.
1 single-jet velocity water meter (CEE/ISO).
1 electrical network analyser with 3 digital displays: current, voltage, frequency, power factor, power, and energy.
2 volumetric water meters (CEE/ISO).
1 pressure recorder.
1 flow measurement device.
8 pressure measurements with 8 pressure gauges.
6 piezometric columns with 6 transparent PVC tubes and 6 limnimetric scales (10 cm graduation).
1 IP55 control cabinet with general switch, mushroom-head emergency stop, fuses, and start/stop buttons.
304L stainless steel tubing frame with aluminium fittings; wall-mounted on 4 walls.
Electrical supply with 30 mA differential protection; low-level alarm on feed tank; mushroom-head emergency stop.
