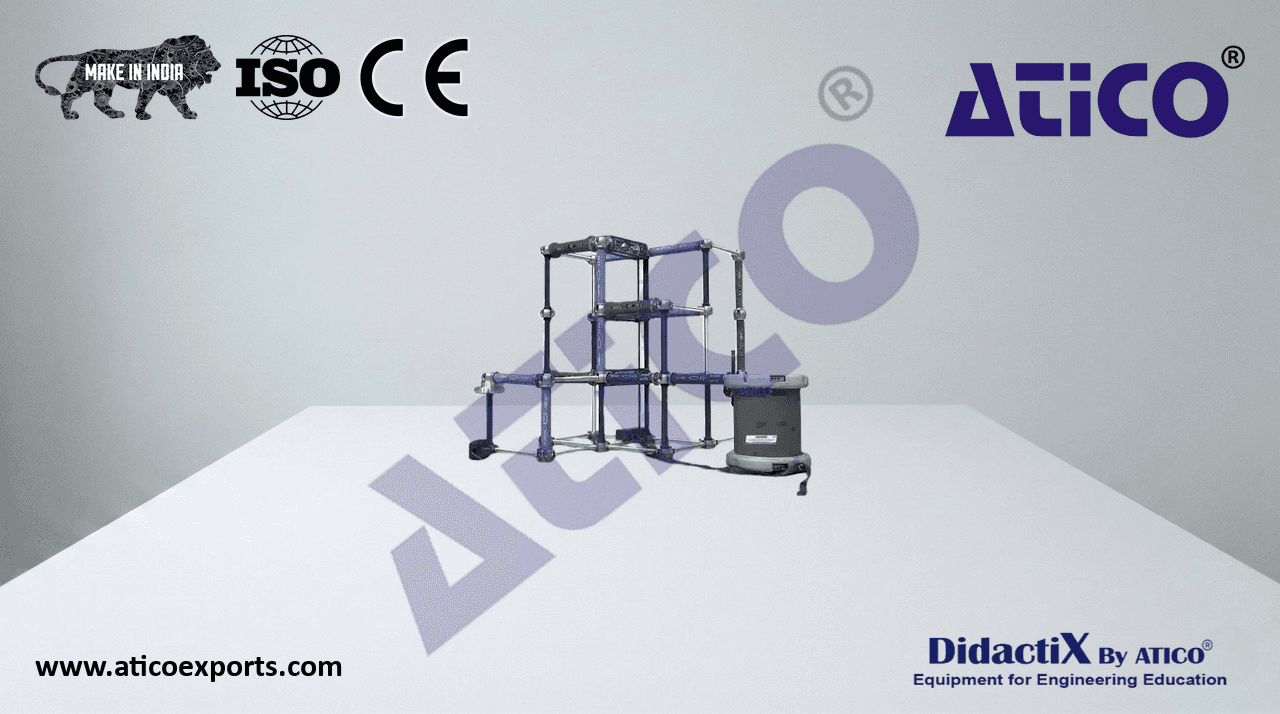

ATENG 11597 — High Voltage Laboratory System
(for main items)
- With this unit there are several options and possibilities:
- Main items: 1, 2, and 3.
- Optional items: 4, 5 and 6.
- Let us describe first the main items (1 to 3):
- 1HVLS. Unit:
- HVLS-UB. Base Unit for ATENG 11597:
- Voltage regulator 0-220V.
Instrumentation panel.
Measurement and control instruments according
with the option chosen (HVLS-AC, HVLS-DC, HVLS-
IV).
Required Elements (at least one is required) (Not
- Included):
- HVLS-AC. AC Voltage Tests Kits:
- Basic Modules:
HVSPHT/100. Single phase transformer
- 100kV:
- Transformation ratio: 2x220V/100kV/220V.
- Nominal Power: 5 kVA, 10kVA for 60 min.
- Frequency: 50/60 Hz.
Cascade Connection Set.
- HVFMC. Flexible metal connection:
Flexible metal connection.
Connector transformer.
Connecting cup.
- Length: 1.5 m.
- HVMD. Manual discharger:
- Unit: ATENG 11597
- Length: 2.5 m.
- ATENG 11843. Connecting bars:
Aluminum.
- HVAES. Assembly elements set:
Connecting Cup.
Horizontal connection element.
Vertical connection element.
- HVES. Electrode set:
- Electrode 200 mm.
- Electrode 300 mm.
- HVMCS. Measuring capacitor set:
Capacitor for 100kV and 100pF.
Capacitor for 200kV and 100pF.
Capacitor for 300kV and 100pF.
- Measurement and control equipment:
- HVDACV. Digital AC Peak voltmeter:
- Supply voltage: 220 V.
- Frequency: 50 Hz.
- Measuring Range: 100 - 1000 Û / √2 kV.
In control and measurement rack.
- Test Modules:
- HVMSGS. Measuring Spark Gap set:
Measuring Spark Gap.
Connecting bar.
Vessel for vacuum/pressure.
Vacuum Pump.
Compressor.
- HVOT. Oil testing:
Measuring Rod.
Oil testing cup.
- HVCGC. Compressed gas capacitor:
AC voltage 100 Kv.
Capacitance 37pF.
- Dielectric gas: Sf6.
- Pressure: 3.5 bar.
3
Complete Technical Specifications (for main items)
- HVCACO. Capacitor coupling:
- Rated Voltage: 120 Kv.
- Capacitance: 1 nF.
- Partial Discharge: 5 pC.
- HVLS-DC. DC Voltage Tests Kits:
- Basic Modules:
- HVSPHT/100. Single phase transformer 100kV:
- Transformation ratio: 2x220V/100kV/220V.
- Nominal Power: 5 kVA, 10kVA for 60 min.
- Frequency: 50/60 Hz.
Cascade Connection Set.
- HVFMC. Flexible metal connection:
Flexible metal connection.
Connector transformer.
Connecting cup.
- Length: 1.5 m.
- HVMD. Manual discharger:
- Length: 2.5 m.
- ATENG 11843. Connecting bars:
Aluminum.
- HVAES. Assembly elements set:
Connecting Cup.
Horizontal connection element.
Vertical connection element.
- HVD. HV Diode:
Resistor.
- Rated current: 20 mA.
- HVFIC. Filter/impulse capacitor:
- Nominal voltage: 140kV.
- Capacitance: 2 5nF.
- HVCR280. Charging resistor 280M:
280Mohm.
- HVIB. Insulating bar:
- Voltage:
- DC: 100 kV.
- Impulse: 140 kV.
- HVGSE. Grounding switch electrode:
Termination in conjuction with grounding switch for safety grounding.
- Measurement and control equipment:
- HVDCV. DC voltmeter:
- Supply voltage: 220 V.
- Frequency: 50 Hz.
- Measuring Range: 140kV/280kV/400kV.
In control and measurement rack.
- Test Modules:
- HVMSGS. Measuring Spark Gap set:
Measuring Spark Gap.
Connecting bar.
Vessel for vacuum/pressure.
Vacuum Pump.
Compressor.
- HVCR2.5. Charging resistor 2.5M:
2.5 Mohm.
- HVLS-IV. Impulse Stress Test Kits:
- Basic Modules:
- HVSPHT/100. Single phase transformer 100kV:
- Transformation ratio: 2x220V/100kV/220V.
- Nominal Power: 5 kVA, 10kVA for 60 min.
- Frequency: 50/60 Hz.
Cascade Connection Set.
4
Complete Technical Specifications (for main items)
- HVFMC. Flexible metal connection:
Flexible metal connection.
Connector transformer.
Connecting cup.
- Length: 1.5 m.
- HVMD. Manual discharger:
- Length: 2.5 m.
- ATENG 11843. Connecting bars:
Aluminum.
- HVAES. Assembly elements set:
Connecting Cup.
Horizontal connection element.
Vertical connection element.
- HVD. HV Diode:
Resistor.
- Rated current: 20 mA.
- HVFIC. Filter/impulse capacitor:
- Nominal voltage: 140kV.
- Capacitance: 2 5nF.
- HVCR280. Charging resistor 280M:
280Mohm.
- HVLC. Load capacitor:
- Nominal voltage: 140kV.
- Capacitance: 25 nF.
- HVCR10. Charging resistor 10M:
10 Mohm.
- HVWFR. Wave front resistor:
350 ohm.
- HVWTR. Wave tail resistor:
2400 ohm.
- HVSG. Sphere gap:
- Impulse voltage: 140 kV.
- HVDFSG. Drive for sphere gap:
- Input: 220 kV.
- Frequency: 50/60 Hz.
- HVIB. Insulating bar:
- Voltage:
- DC: 100 kV.
- Impulse: 140 kV.
- Measurement and control equipment:
- HVTD. Triggering device:
- Supply voltage: 220 V.
- Frequency: 50 Hz.
In control and measurement rack.
- HVETS. Electronic trigger sphere:
- Supply voltage: 220 V.
- Frequency: 50 Hz.
- Measuring Range: 100 - 1000 Û / √2 kV.
- HVDCV. DC voltmeter:
- Supply voltage: 220 V.
- Frequency: 50 Hz.
- Measuring Range: 140kV/280kV/400kV.
In control and measurement rack.
- HVIV. Impulse voltmeter:
- Supply voltage: 220 V.
- Frequency: 50 Hz.
- Measuring Range: 100-1000kV.
In control and measurement rack.
5
Complete Technical Specifications (for main items)
- Test Modules:
- HVMSGS. Measuring Spark Gap set:
Measuring Spark Gap.
Connecting bar.
Vessel for vacuum/pressure.
Vacuum Pump.
Compressor.
- Required elements:
- AEL-PC. Touch Screen and Computer.
- Touch Screen:
- Energy efficiency class: A.
- Screen diagonal: 68.6 cm (27 inch (s)).
- Power consumption (operating): 26 watts.
- Annual energy consumption: 38 kWh. AEL-PC
Power consumption (standby / off) 0.49 watts.
- Screen resolution: 1920 x 1080 pixels.
- Computer:
- Processor Number: Intel Core i7-6600U Processor (4M Cache, up to 3,40 GHz).
- Cache: 4 MB Intel Smart Cache.
- Clock speed: 2.6 GHz.
-
Of Cores/# of Threads: 2/4.
- Max. TDP/Power: 15 W.
- Memory Types: DDR4-2133, LPDDDR3-1866, DDR3L-1600.
- Graphics: Intel HD Graphics 530.
Slot for PCI Express.
- The complete unit includes as well:
Advanced Real-Time SCADA.
Advanced impulse testing systems to analyze the response of high voltage systems (optional).
Advanced AC High Voltage testing systems to analyze the response of high voltage systems
(optional).
Advanced DC High Voltage testing systems to analyze the response of high voltage systems
(optional).
Real control devices.
Real power component used in power substations.
Real experiments in solids and insulating liquids.
Modular elements easy to assemble.
Study of real industrial components in a safe environment.
Study of air insulation capacity at different pressure conditions.
2 Cables and Accessories, for normal operation.
- 3Manuals:
- This unit is supplied with 8 manuals: Required Services, Assembly and Installation, Interface and Control Software, Starting-up, Safety,
Maintenance, Calibration & Practices Manuals.
- References 1 to 3 are the main items: ATENG 11597 + Cables and Accessories + Manuals are included in the minimum supply for enabling
normal and full operation.
