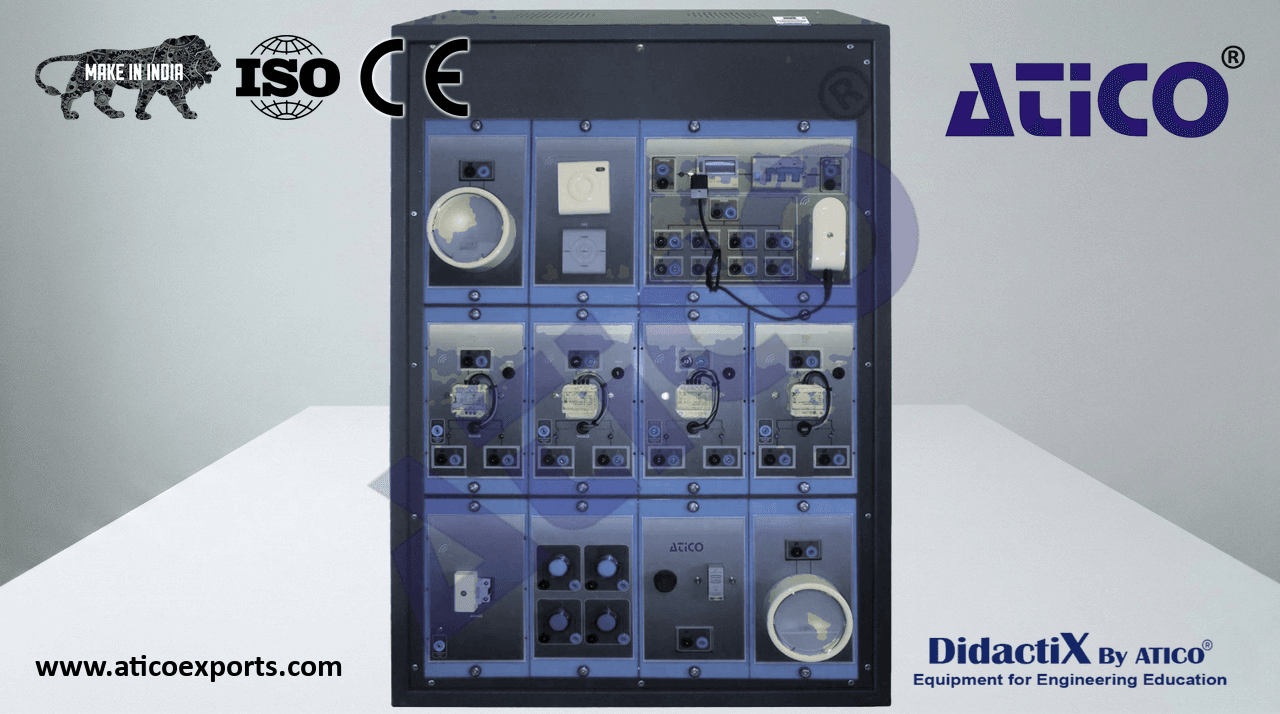

Home Automation Application with ZigBee Wireless Protocol

The Elementary Control Application of Home Electric Systems, is a home automation application, which is composed by a set of modules that cover different areas of home automation field, such as, wireless control of lighting, energy management or wireless intrusion sensor.

ATENG 11080 — Home Automation Application with ZigBee Wireless Protocol

• The application “ATENG 11080” includes the following elements:
• N-IOWM. Wireless output Module (4 units).
• Voltage supply: 230 VAC.
• 2 A fuse.
  Ground connection.
• Two outputs of 230 VAC.
  Two pilot lights to indicate energized outputs. N-IOWM
• ZLight, wireless module to control the outputs closing/opening:
• Maximum power: 50 W.
• Voltage supply range: 85 – 263 V.
• Frequency: 50 / 60 Hz.
• Transmission range: 100 m outdoors and 30 m indoors.
• Sixteen transmission channels: 2.405 – 2.480 GHz.
• N-HPM. Home Power Module.
• Voltage supply: 230 VAC.
  Residual current circuit breaker (RCCB).
  Power meter.
  Energized circuit LED.
  N-HPM
• Output voltage port: 230 VAC.
• Input voltage port: 230 VAC (it can be directly connected to the 230 VAC output).
  Eight supply output ports.
  Ground connection.
• Zmeter, wireless power meter capable of switching the circuit ON / OFF:
  ON / OFF switch.
• 3.5 mm jack.
  Two AAA batteries.
• Detection range: 10 m.
• Transmission range: 100 m outdoors and 30 m indoors.
• Channels: 19 (2445 MHz), 20 (2450 MHz), 25 (2475 MHz).
• N-SEL04. Four Pilot Lights Module.
• Voltage supply: 230 VAC.
• Colors: red and green.
  Ground connection. N-SEL04
• N-LAM16. Incandescent Lamp Module (2 units).
• Nominal voltage: 230 VAC (PH + N).
  Halogen lamp.
• Power: 60 W.
  N-LAM16
• N-WSM. Wireless Switch Module.
  Ground connection.
• Wireless switch:
  Five opening/closing command.
  Temperature sensor.
  N-WSM
  CR2032 lithium batter.
• Transmission range: 100 m outdoors and 30 m indoors.
• Sixteen channels: 2.405 – 2.480 GHz.
  3

Specifications

• N-TIM05. Bell + Buzzer Module.
• Voltage supply: 230 VAC.
• Bell sound: 70 dB.
• Buzzer sound: 80 Db.
• N-WISM. Wireless Instrusion Sensor Module. N-TIM05
• Sensor ZDOOR:
  Lithium battery CR2032.
  Fixed magnet for mobile part of door/window.
  Sensor for fixed part of windows/door, it includes pilot light and button.
• Transmission range: 100 m outdoor and 30 m indoor.
• Sixteen transmission channels: 2.405 – 2.480 GHz.
  N-WISM
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
