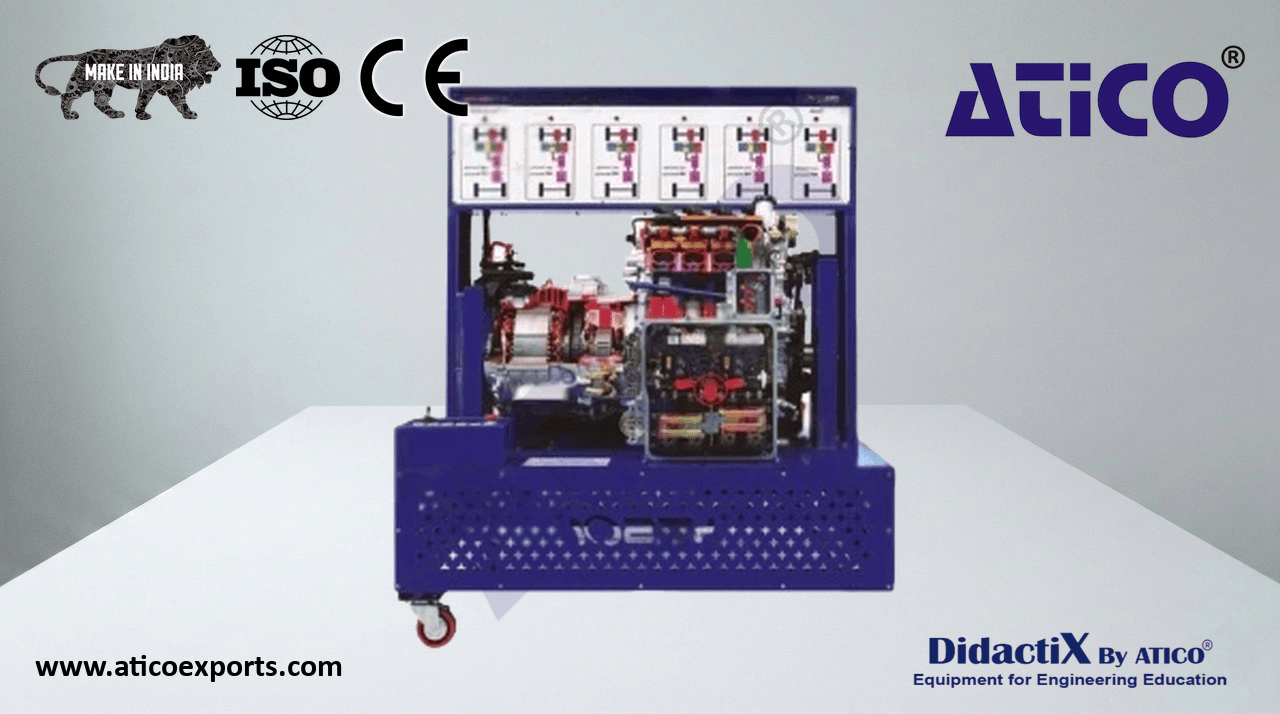

Hybrid Engine with 6 Different Position Control Panels

Educational structure equipment for hybrid engine and motor, automatic transmission. Easy to educate each part and operating principle of hybrid engine. Certain sections are cut and painted with different colors for educational effect. Learn about Hybrid Engine with 6 Different Position Control Panels India for optimal educational outcomes.. It is capable of verifying internal structure through precise cutting. Each cut section is painted with different colors for educational effectiveness. Learn about Hybrid Engine with 6 Different Position Control Panels manufacturers for optimal educational outcomes.. It is capable of showing movement identical to real car by operating AC 220V motor. The display panel is expressed in 6 types according to gear shift condition. Learn about Hybrid Engine with 6 Different Position Control Panels equipment for optimal educational outcomes..

Composition: Gasoline engine test, Hybrid motor test, Inverter, Battery, Power cable, Fuel tank, Shift lever, Battery, Fuel motor, Intake, Exhaust system
HV ASSY is installed at rear of engine. Engine type: 1NZ-FXE
Cylinder number: 4-cylinder inline type
Valve type: DOHC
Bore x Stroke: 75.

Composition: Gasoline engine test, Hybrid motor test, Inverter, Battery, Power cable, Fuel tank, Shift lever, Battery, Fuel motor, Intake, Exhaust system
HV ASSY is installed at rear of engine.
Engine type: 1NZ-FXE
Cylinder number: 4-cylinder inline type
Valve type: DOHC
Bore x Stroke: 75.0 x 84.7 mm
Displacement: 1496cc
Size: Approx. 1,400 X 1,200 X 1,600 mm
Weight: Approx. 450 kg
