Hydraulic System Trainer

Overview

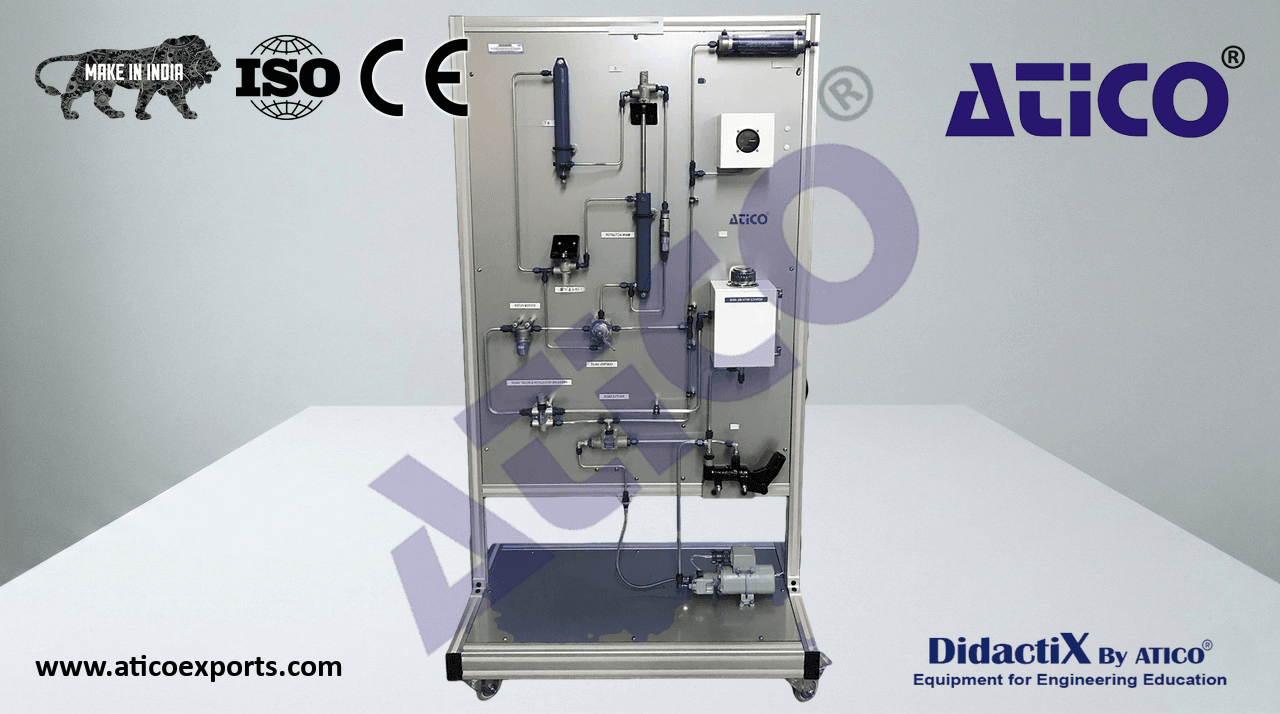

This trainer provides hands-on training so students can understand the function, identify components, and troubleshoot a fully functional hydraulic system. It is a complete standalone trainer designed so that each component can be removed, overhauled, reinstalled, and functionally tested.

Technical Specifications

• Fluid Reservoir (various capacities available)
• Rotary vane or gear hydraulic pump with electrically driven motor (110V AC/60 Hz or 220V AC/50 Hz)
• Aircraft hydraulic cylinder (dual acting), sequenced by a sequencing valve
• Pressure Gauge (direct reading)
• Check valve
• 4-way selector valve
• Hand Pump
• Filter Assembly
• Pressure relief valve (adjustable within safe limits)
• Accumulator Assembly
• Complete curriculum with schematics and User/Training Manual
• Large, laminated, colored schematic poster of system plumbing
