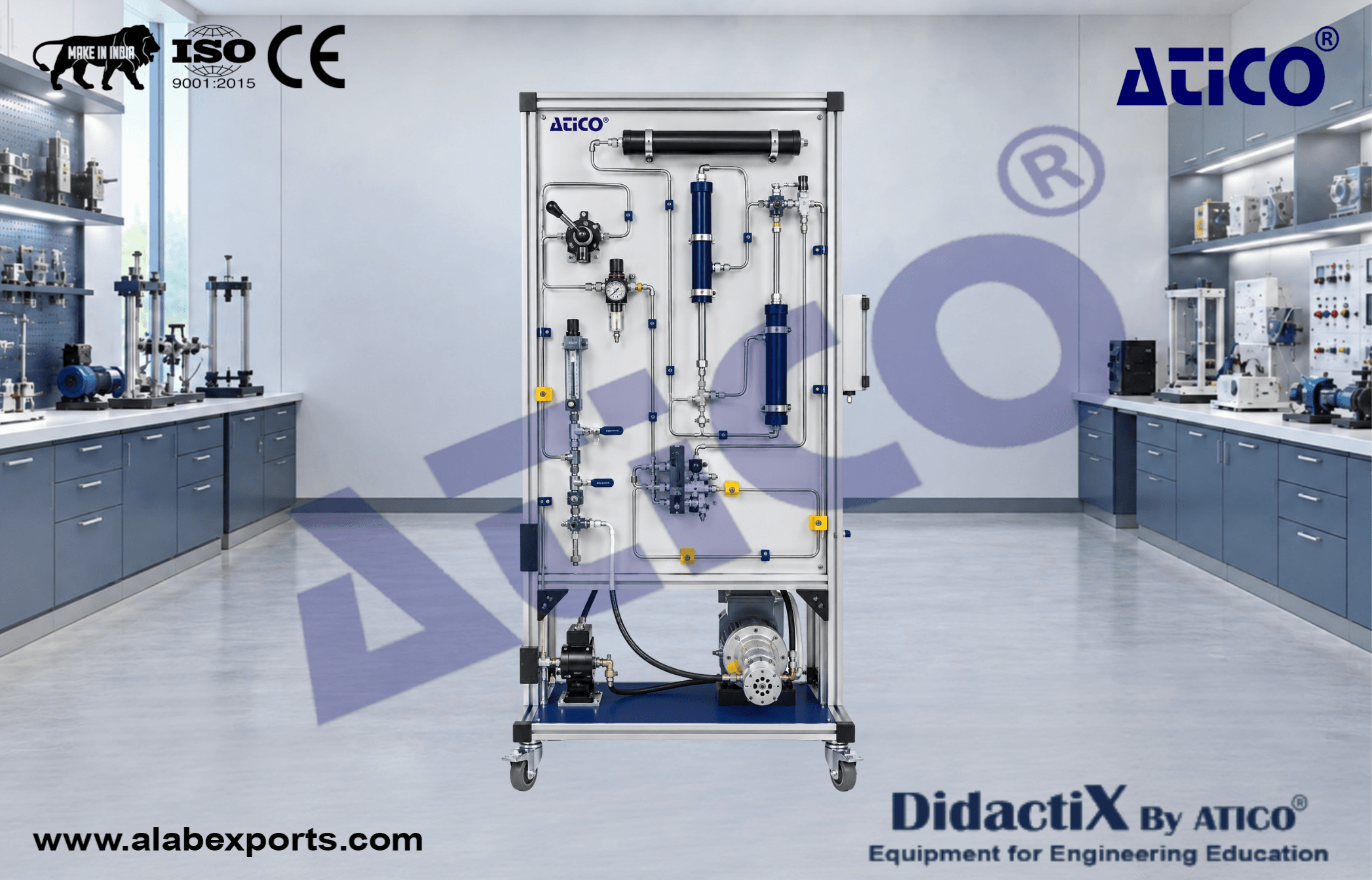

Hydraulic System Trainer Basic

Aircraft Hydraulic System Trainer provides students with practical experience needed to understand system functions, become familiar with components and improve troubleshooting skills.

The fully functional hydraulic system is designed so that every component can be disassembled, reassembled and functionally tested.

All components mounted on the trainer are operational, removable and can be reinstalled.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Hydraulic Valves :

• OR Valve
• Pressure Relief Valve
• Main Flow Control Valve
• Hydraulic Accumulator Control Valve
• Check Valves
• Landing Gear and Door Control Valve

Hydraulic Sequencing Valves :

• Landing Gear Door Sequencing Valve and Switch
• Landing Gear Sequencing Valve and Switch

Hydraulic Actuators :

• Landing Gear Door Actuator
• Landing Gear Actuator

Analog Hydraulic Pressure Indicators :

• Main Hydraulic System Pressure Indicator
• Hydraulic Accumulator Pressure Indicator

Simulated Emergency Hydraulic Power Sources :

• Hydraulic Accumulator

• Hydraulic Hand Pump

• Electrically Driven Hydraulic Pump

• Hydraulic Tank and Side Gauge

• Hydraulic Filter

• Digital Accumulator Pressure Sensor

• Terminals

Documentation :

• User's Manual
• Study Guide
• Instructor's Guide
• Training video for teachers

Power Specs :

• Electrical box
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz

Required Items :

• Hydraulic Oil: 28 Liters

Optional Items :

• Computer-Based Training Software

• Hydraulic control valve operation
• Landing gear cylinder operation
• Landing gear door cylinder operation
• System is powered by hydraulic pump, hand pump or accumulator
• Hardware used in the trainer is mounted to the frame so that it can be easily observed by students
• The system is mounted on a metal/aluminum mobile stand
• Metal/aluminum frame with 4 wheels; 2 of 4 wheels are lockable
• Delivered fully assembled, tested and ready to operate
• Colored ultraviolet printing method on aluminum composite panel
• Wirings on the trainer are connected via terminals
• Wires have clear identification labels
• When pump malfunction is given in the trainer, the accumulator and hand pump can control the flap, speed brake, landing gear and landing gear door cylinders
