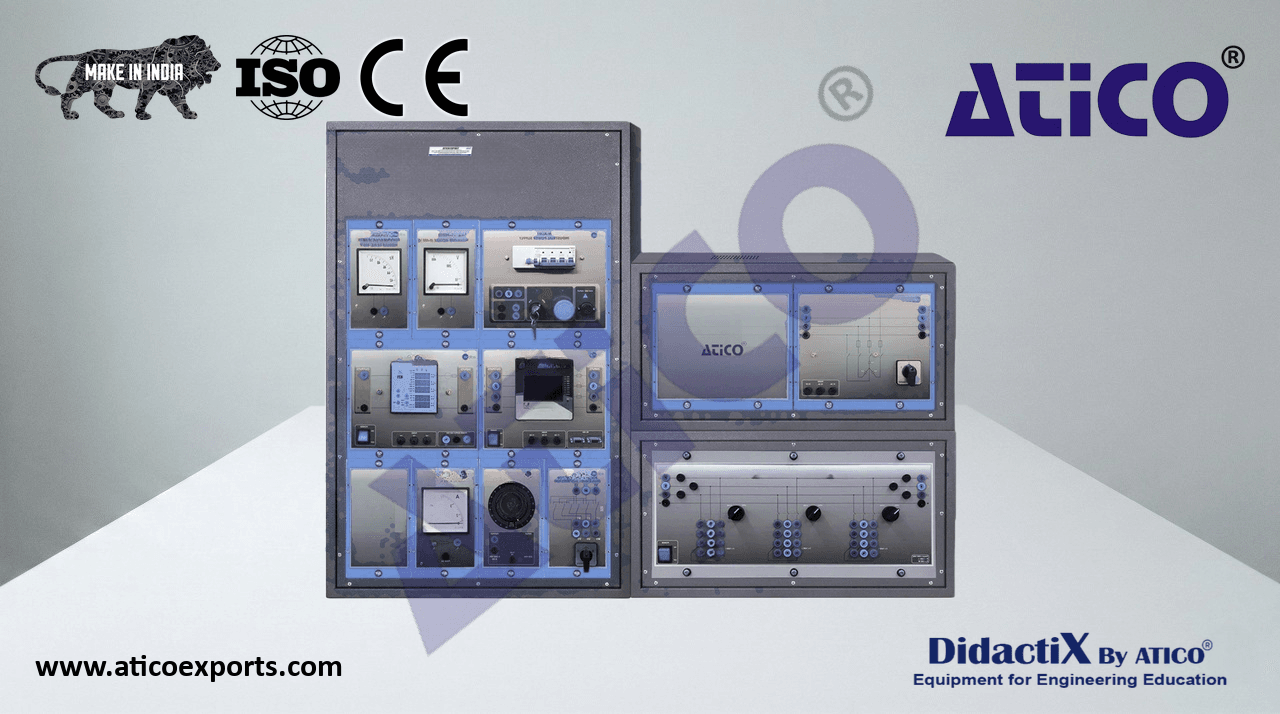

The βATENG 11050β application includes the following elements:
N-ALI01. Industrial Main Power Supply Module.
Supply voltage: 400 VAC, 3PH + N.
ON / OFF removable key.
Output voltage connections:
Three-phase + Neutral: 400 VAC.
Single-phase: 230 VAC.
N-ALI01
Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button.
N-MED22. AC Voltmeter Module (0 β 400 V).
Measurement range: 0 β 400 VAC.
Terminals:
N-MED22
Measurement terminals.
N-MED10. AC Ammeter Module (0 β 5 A).
Measurement range: 0 β 5 A.
Terminals:
Measurement terminals.
N-MED10
N-MED26. Reed Frequency Meter Module 50 Hz, 400 V.
Nominal voltage: 400 VAC.
Nominal frequency: 50 Hz.
Accuracy: 5 Hz.
N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition. N-MED26
The network analyzer module allows fulfilling measurements, displaying and analyzing all
the parameters of the AC electrical networks. It has an LCD screen and push-buttons for the
navigation through the different menus. It includes a specific software for monitoring current
and voltage curves, harmonics display, tariffs programming, alarms programming and electrical
parameters storage.
Features:
Multifunctional three-phase power meter:
Three-phase and single-phase voltage. Up to 690 VAC L-L. N-EALD
Line and neutral nominal current: 10 A.
Active, reactive and apparent power.
Suitable frequencies: 25 Hz, 50 Hz, 60 Hz and 400 Hz.
Display of the V-I vector diagram.
Supply voltage: 85 β 265 VAC.
Energy quality control:
Current and voltage individual harmonics measurement. Up to the 40th harmonic.
Voltage and THD current, TDD current and K-Factor.
Maximums and minimums display.
Waveforms display, 128 samples/sec.
Events and data storage:
Harmonics analyzer:
Voltage and THD current, TDD current and K-Factor, up to the 40th harmonic.
Current and voltage harmonic spectrum and angles.
Tariff programming:
Class 0.5S IEC 62053 β 22, active and reactive power in four quadrants.
Measurement of the total and per phase three-phase active, reactive and apparent powers.
Usage time, four energy/demand records of total tariffs.
Eight tariffs, four seasons and four types of days.
Automatic daily report of energy consumption maximums and minimums.
Communications:
RS β 485 communication port.
3
Specifications
N-MED49. Hour Counter Module.
Real time hour counter of time service.
N-SWT4. Four Position Selector Module (measuring point selector).
Nominal voltage: 400 VAC.
Three input terminals for power supply connection. N-MED49
Six output terminals for motor connection.
