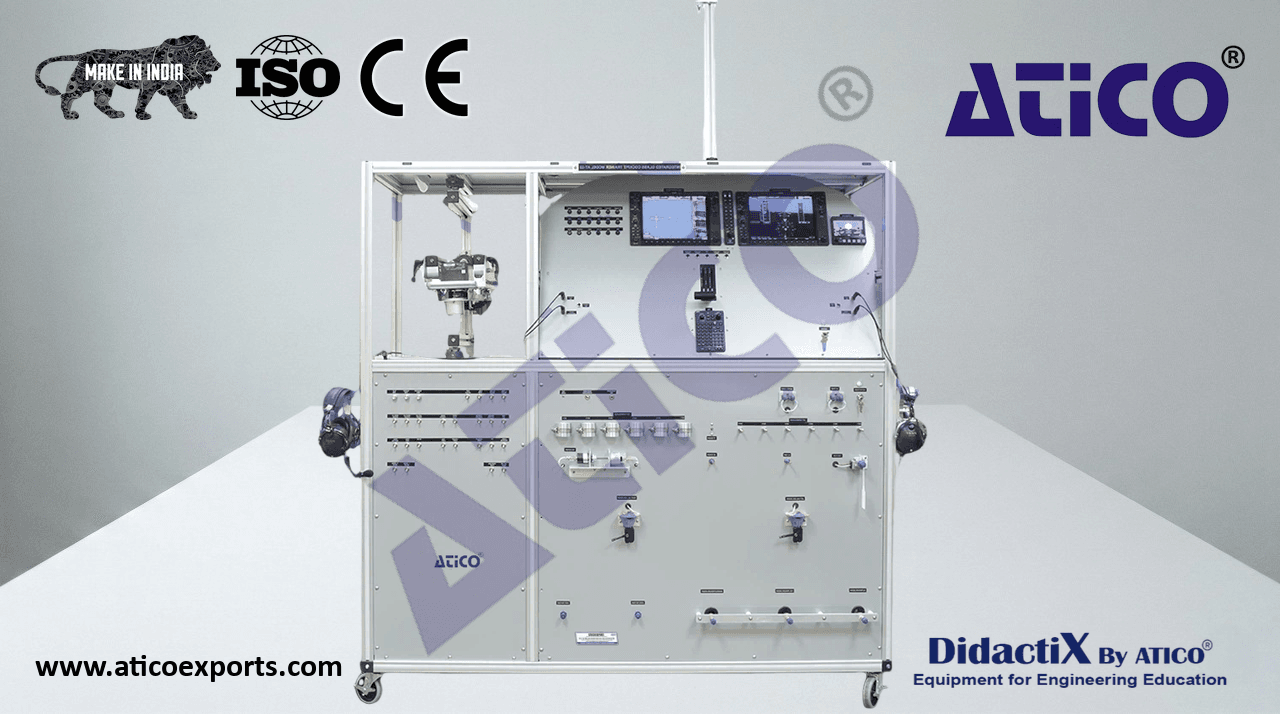

+91 98967 93832This glass cockpit trainer comprises real avionics equipment in a fully integrated avionics suite with dual electronic flight displays. The system serves as a navigation input selection hub and provides course deviation and vertical descent indicators, heading bug, and GPS roll steering information.
| Specification | Details |
|---|---|
| Displays | Dual high-resolution 10.4 inch 1024×768 displays |
| Integrated Avionics | Precision approach WAAS-certified GPS, ILS/VOR navigation receiver, 16-watt VHF communication transceiver (25 kHz or 8.33 kHz spacing), Mode-S transponder with Traffic Information Service, solid-state AHRS with remote magnetometer, digital air-data computer, digital audio panel with auto-squelch and clearance recorder, worldwide terrain and obstacle database, modular rack-mounted LRUs, airport diagram database, electronic charting, victor/jet airway display, programmable checklist, automated reversionary display |
| Engine Information System | Manifold pressure, RPM, fuel quantity/flow/pressure/mpg/totalizer, oil temperature and pressure, CHT and EGT, trim positions (elevator/aileron/rudder/flap), electrical bus voltages and ammeters, engine hours |
