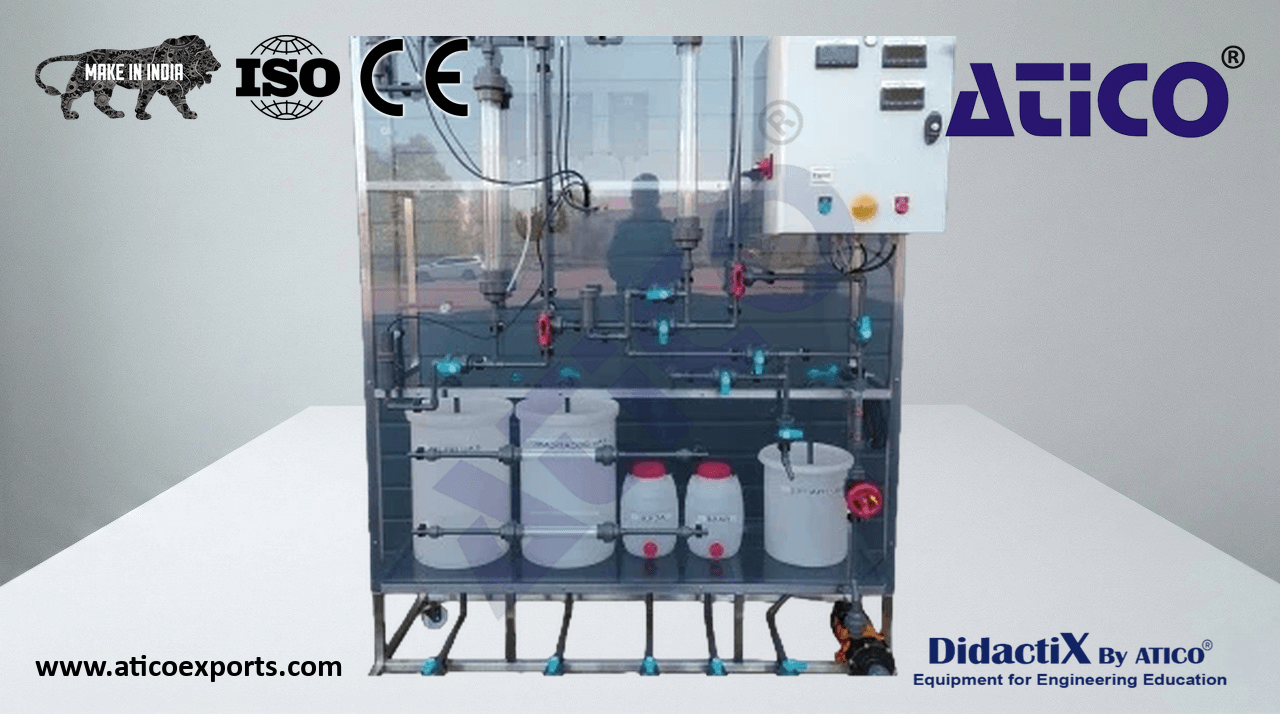

Ion Exchange Pilot

This pilot enables understanding of water softening, demineralization, and decationization operations by ion fixation on ion exchange resins. Educational Objectives: Depending on water analysis, flow rate to treat, and desired quality, students can choose: the resin to use, the type and quantity of regenerant, the flow rate and type of operation (co-current/counter-current). Resin capacity as a function of regeneration can be measured and material balances established. Learn about Ion Exchange Pilot India for optimal educational outcomes..

Composition:

• Two transparent acrylic columns, 26 mm diameter, 0. 11L (dismountable to change resins)
• 1 liter of anionic resin
• 1 liter of cationic resin
• Polypropylene centrifugal pump
• Five polyethylene tanks of different capacities with drain valves
• 1 conductivity sensor with transmitter (4-20 mA output)
• 1 pH sensor with transmitter
• Five measurement probe installation points (moved according to process)
• Two fluid circuits for co-current or counter-current column feed
• Control cabinet for pump protection and conductivity sensor transmitters
• PVC piping; mounted on stainless steel chassis with aluminum clamping nuts

Options:
1.

Two transparent acrylic columns, 26 mm diameter, 0.11L; columns are dismountable to change resins
One liter of anionic resin
One liter of cationic resin
A polypropylene centrifugal pump
Five polyethylene tanks of different capacities with drain valves
1 conductivity measurement sensor with transmitter, 4-20 mA output
1 pH measurement sensor with transmitter
Five probe installation points (probes moved according to chosen process)
Two fluid circuits for feeding columns in co-current or counter-current
Control cabinet for pump protection and conductivity sensor transmitters; PVC piping; mounted on stainless steel chassis with aluminum clamping nuts
