Joints and Mechanisms Set

The 'joints and mechanisms' educational set facilitates understanding of fundamental concepts related to joint kinematics: identification of simple joints, possible movements, contact surfaces, etc. Educational Objectives: Students have solids to materialize joints, simulation software, and real products to illustrate each type of joint.

Proposed Lab Topics

• Construct standardized simple joints and discover internal movements, symbols, and contact surfaces
• Discover kinematics from a volumetric representation and a real product
• Identify joints between solids using standards and deduce relative movements
• Analyze the movement of a solid in rotation and translation in a given reference frame

Composition

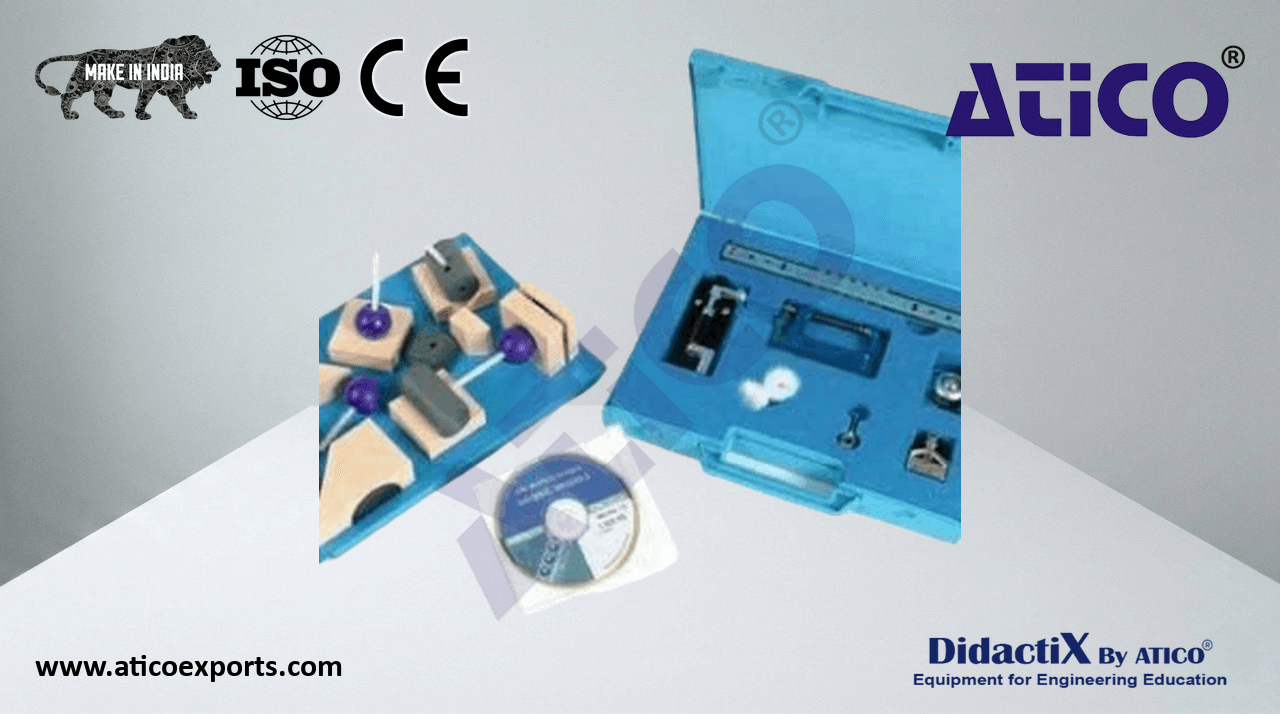

• Joint kinematics kit and educational documentation (EX510)
• Joints and mechanisms kit (EX519)
• CD-ROM: study of simple and compound joints (EX518-1)

Construct standardized simple joints and discover internal movements, symbols, and contact surfaces
Discover kinematics from a volumetric representation and a real product
Identify joints between solids using standards and deduce relative movements
Analyze the movement of a solid in rotation and translation in a given reference frame
Joint kinematics kit and educational documentation (EX510)
Joints and mechanisms kit (EX519)
CD-ROM: study of simple and compound joints (EX518-1)
