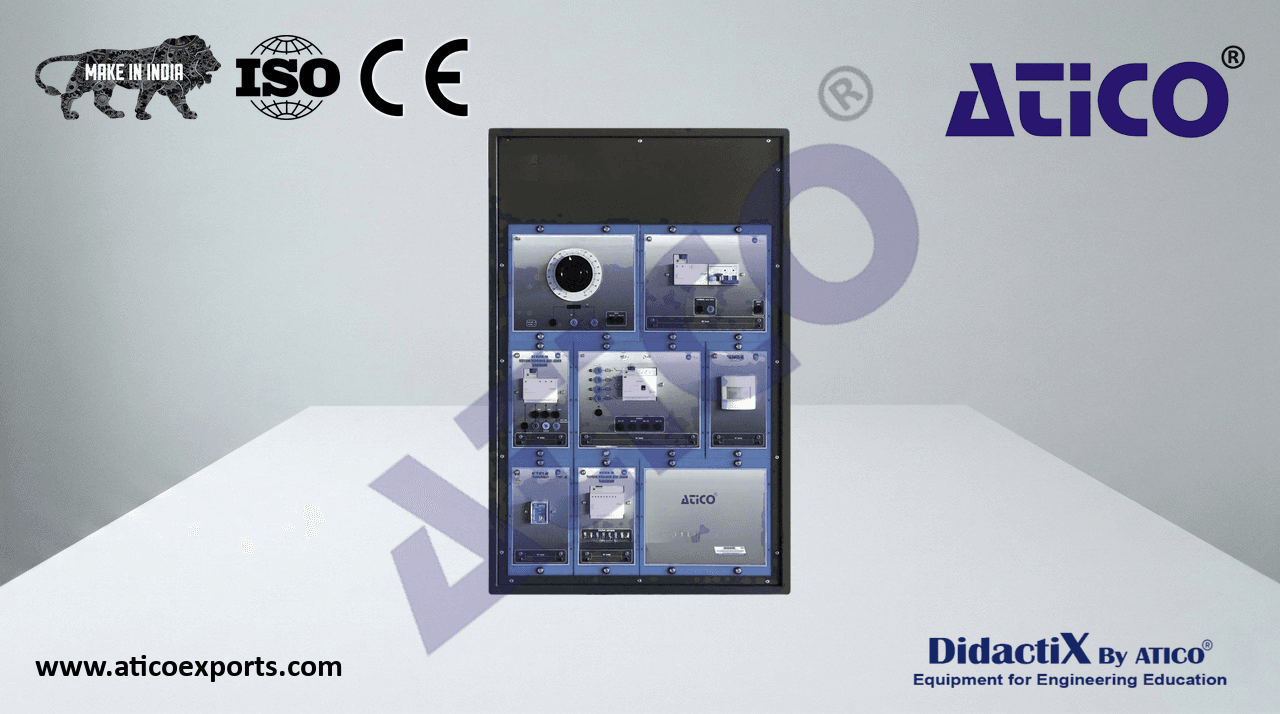

KNX Lighting Control Training Application

The Lighting Control Training Application, is designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems.

ATENG 11098 — KNX Lighting Control Training Application

• The ATENG 11096 Base Unit, “AEL-KNX-UB,” includes the following elements:
• N-KNX34. KNX/EIB USB Programming Interface Module.
• Power supply: KNX line, 21…30 VDC.
• Current consumption (max.): < 5 mA.
• USB connection: USB2.0 connector.
• N-KNX18. KNX/EIB Power Supply Module.
• Power supply: 230 VAC. N-KNX34
• Maximum load: 640 mA.
• Output voltage: 24 VDC.
• N-KNX4. KNX/EIB Binary Input Module.
• Nominal voltage: 230 VAC.
• Frequency: 50 Hz.
  N-KNX18
• KNX bus voltage: 24 VDC.
• Mains inputs/outputs: 4 mm safety sockets.
• Bus inputs/outputs: 2 mm safety sockets.
• N-KNX5. KNX/EIB Binary Output Module. (2 units).
• Nominal voltage: 230 VAC.
• Frequency: 50 Hz. N-KNX4
• KNX bus voltage: 24 VDC.
• Mains inputs/outputs: 4 mm safety sockets.
• Bus inputs/outputs: 2 mm safety sockets.
• N-KNX30. Módulo de Panel Táctil KNX/EIB.
• Nominal voltage: 230 VAC.
  N-KNX5
• Frequency: 50 Hz.
• KNX bus voltage: 24 VDC.
• Mains inputs/outputs: 4 mm safety sockets.
• Bus inputs/outputs: 2 mm safety sockets.
• N-KNX35. KNX/EIB Infrared Transmitter/Receiver Module.
• The IR remote is powered by two batteries of type alkaline (LR03/AAA; 1,5 V).
  N-KNX30
• Normal functions:
  Switching.
  Switching and dimming.
  Control of blinds.
• MED65. Digital Multimeter.
• Digital multimeter with 3 ½ digits, with 4 mm double connector termination cables to facilitate N-KNX35
  interconnections.
• With this digital multimeter we will be able to measure:
  Voltage.
  Current.
  Resistance.
  Capacitors capacity.
  MED65
  Temperature.
• Required elements of the ATENG 11096 Base Unit, “AEl-KNX-UB” (at least one) (Not included):
  ATENG 11098. KNX Lighting Control Training Application.
• N-KNX19. KNX/EIB Proximity Sensor Module.
• KNX bus voltage: 24 VDC.
• Bus inputs/outputs: 2 mm safety sockets.
• Working temperature: -5 °C to +45 °C.
  N-KNX19
  6

Specifications

• N-KNX20. KNX/EIB Push-Button Module.
  Pushbuttons can be programmed for 1 or 2-button operation.
  1 and 2 button operation for switching, dimming, blinds.
  Change of values / scenes with up to 4 values.
  Short/long push button and 2 object operation.
  Group control with long/long button press.
• N-LAM32. One LED Lamp Module. (4 units).
• Lamp led 24 VDC.
• N-KNX8. KNX/EIB Dimmer Actuator Module
  DALI dimmable driver.
• Power: 2 – 21 W.
  N-LAM32
• Input voltage: 230 VAC.
• Output voltage: 9 – 42 V.
• N-DKG. DALI-KNX Gateway Module.
• Input voltage: 240 VAC.
• Frequency: 50/60 Hz.
• Communication port protocol: DALI. N-DKG
• Gateway: KNX/DALI.
• N-DAC. DALI Controller Module.
  DALI input controller.
  4 independent inputs for floating contacts.
  For standard snap-action switch or circuit breaker connections.
  N-DAC
• Power supply via DALI line: 24 VDC.
  ATENG 11099. KNX for ATENG 11845 Control Training Application.
• N-KNX1. KNX/EIB Heating Actuator Module.
• Nominal voltage: 230 VAC.
• Frequency: 50 Hz.
• KNX bus voltage: 24 VDC.
• Mains inputs/outputs: 4 mm safety sockets.
  N-KNX1
• Bus inputs/outputs: 2 mm safety sockets.
• N-KNX17. N-KNX17. KNX/EIB Movement Sensor Module.
  Movement sensor for bus system KNX.
  Max. transmission range frontally 7 m.
• Number of channels: 1.
  N-KNX17
• N-KNX29. KNX/EIB Temperature Sensor Module.
• KNX bus voltage: 24 VDC.
• Bus inputs/outputs: 2 mm safety sockets.
• Range measurement: 0 – 40 °C (approx.).
• N-KNX33. KNX/EIB Window/Door Contact Module.
• KNX bus voltage: 24 VDC.
  N-KNX29
• Bus inputs/outputs: 2 mm safety sockets.
