Lan Network Unit

The LAN Networking Unit, to study LAN networks. The unit allows students to acquire knowledge related to LAN networks and the elements which compose them.

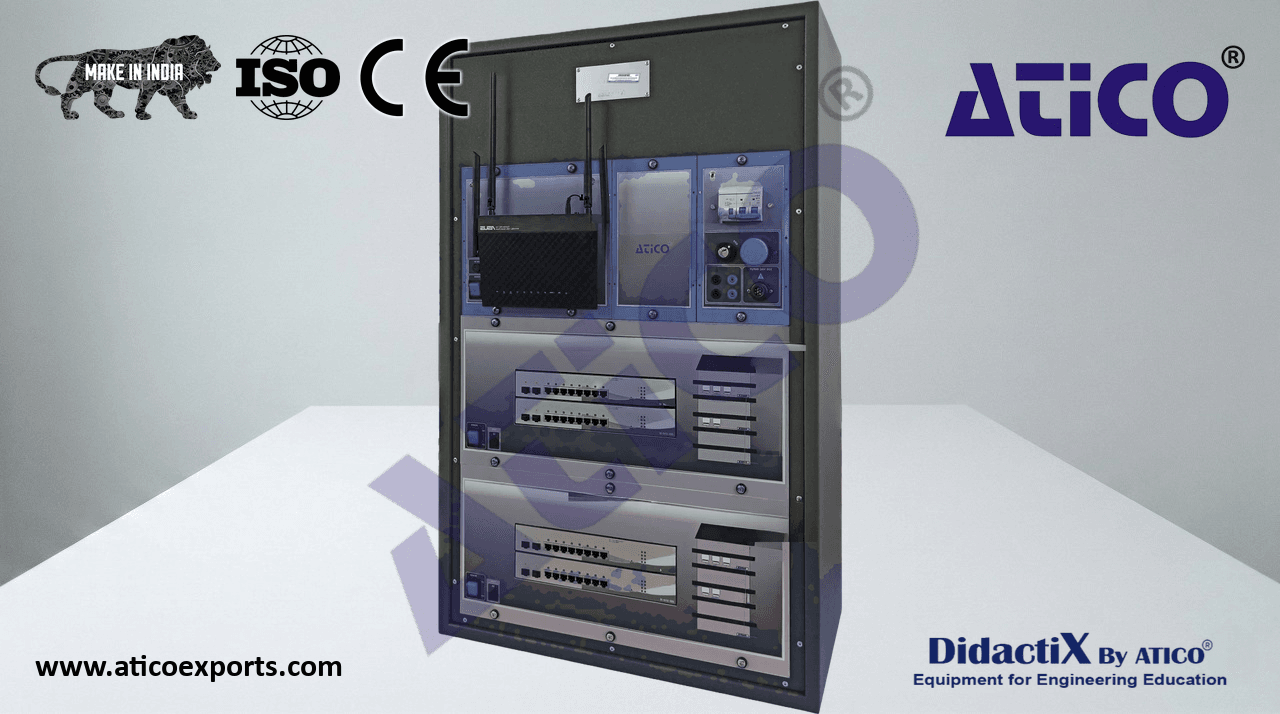

ATENG 10976 — Lan Network Unit

• The “ATENG 10976” unit includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON/OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  N-ALI02
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push button.
• N-MOD. Modem Communication Module.
• Supply voltage (single-phase): 110 - 240 VAC (50/60 Hz).
• Router:
• Ports:
  RJ45 10/100/1000 Mbps for LAN x 4.
  RJ45 10/100/1000 Mbps for WAN x 1.
  RJ11 for xDSL x 1.
  N-MOD
  USB 2.0 x 1.
  Antenna x 4.
• Push-buttons: ON/OFF button, reset button, WPS ON/Off button and Wi-Fi ON/OFF button.
• N-SWT/SFP. Ethernet and SFP Port Switch Module (2 units).
• Power supply (single-phase): 100 - 240 VAC (50/60 Hz).
• Switch:
• Ports:
  RJ45 10/100/1000 Mbps x 8.
  N-SWT/SFP
  SFP x 2.
  L2/L3 level functions.
  Web interface.
• Required element (Not included):
• PC. PC to work with the unit.
• Operating system: Windows 10 or later.
• Processor: Intel Core I5 or faster.
• RAM: 8 GB minimum.
• Hard disk: 500 GB minimum.
  PC
• Screen resolution: 19’’ or greater.
  A CD/DVD drive.
  One PCIe slot available.
  Cables and accessories, for normal operation.
