Lateral and Fluidized Bed Dryer

Drying aims to eliminate by vaporization the liquid impregnating a solid. Example applications: beetroot pieces, banana slices, yeast, dog kibbles, corn kernels, puffed rice, frozen peas, etc. Pedagogical Objectives: Study of drying of food or food-compatible products in an educational or research context. Learn about Lateral and Fluidized Bed Dryer exporters for optimal educational outcomes..

Technical Description: A circuit comprising 3 drying modules. Fluidized bed dryer: diameter 200 mm, load 500 g.

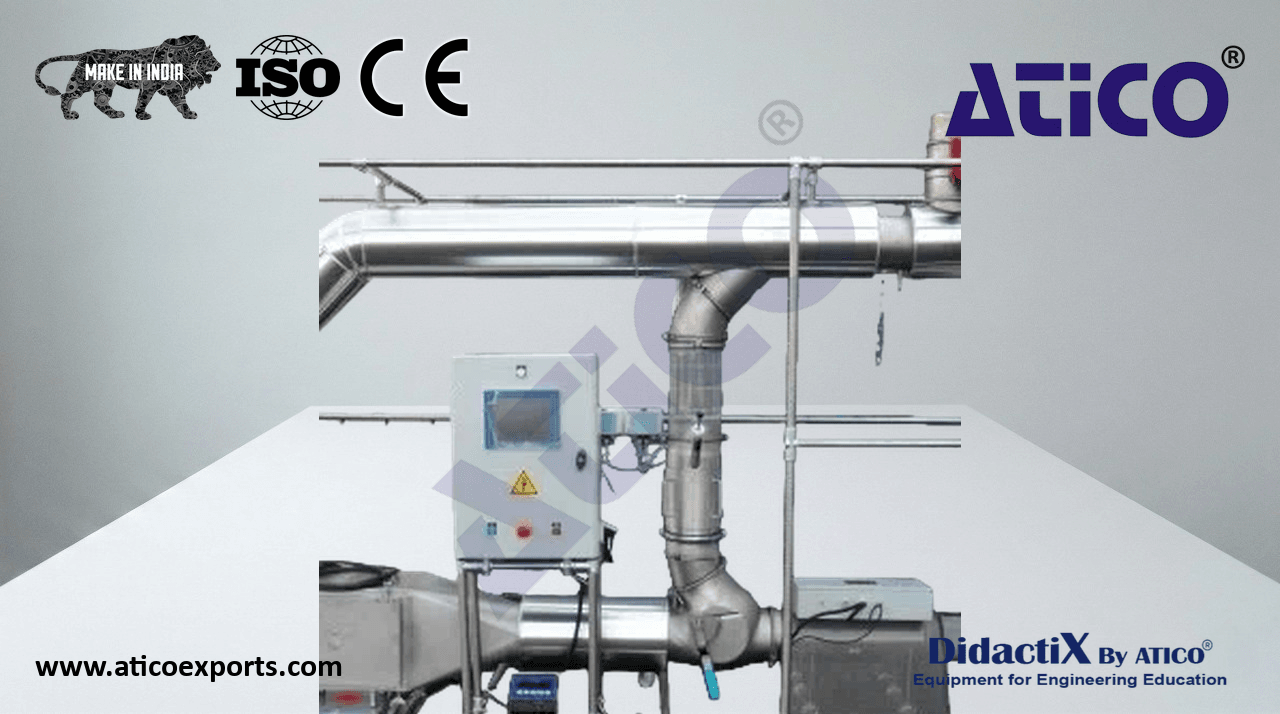

Air circuit: HORIZONTAL SWEEP MODULE — 304L stainless steel casing with front-opening door. Interior fitted with 3 stainless steel grid racks on an open structure resting on the balance platform. Balance located outside the casing to avoid high-temperature exposure. Peephole on door for product temperature measurement by pyrometer. Air flow diversion during weighing mode. FLUIDIZED BED MODULE — 304L stainless steel product bowl with interchangeable screen (two screens supplied, mesh size to be specified) and polycarbonate expansion zone for good product movement visibility. Fluidized bed diameter: 200 mm. Sample port nozzle for in-process moisture sampling. Mechanical locking of product bowl. Recovery hatch at the base of the fluidized bed. CONNECTING DUCTS — Food-grade thermolac-coated steel ducts (colour to be selected). Duct sections and drying modules connected by high-temperature clamp joints, easily demountable for cleaning. AIR HEATER — Two 15 kW modules. FAN — Direct-drive centrifugal fan. Flow adjustable by variator.
HORIZONTAL SWEEP MODULE — 304L stainless steel casing with front-opening door. Interior fitted with 3 stainless steel grid racks on an open structure resting on the balance platform. Balance located outside the casing to avoid high-temperature exposure. Peephole on door for product temperature measurement by pyrometer. Air flow diversion during weighing mode.
304L stainless steel casing with front-opening door
Interior fitted with 3 stainless steel grid racks on an open structure resting on the balance platform
Balance located outside the casing to avoid high-temperature exposure
Peephole on door for product temperature measurement by pyrometer
Air flow diversion during weighing mode
FLUIDIZED BED MODULE — 304L stainless steel product bowl with interchangeable screen (two screens supplied, mesh size to be specified) and polycarbonate expansion zone for good product movement visibility. Fluidized bed diameter: 200 mm. Sample port nozzle for in-process moisture sampling. Mechanical locking of product bowl. Recovery hatch at the base of the fluidized bed.
304L stainless steel product bowl with interchangeable screen and polycarbonate expansion zone
Fluidized bed diameter: 200 mm
Sample port nozzle for in-process moisture sampling
Mechanical locking of product bowl
Recovery hatch at the base of the fluidized bed
CONNECTING DUCTS — Food-grade thermolac-coated steel ducts connected by high-temperature clamp joints, easily demountable for cleaning
AIR HEATER — Two 15 kW modules
FAN — Direct-drive centrifugal fan, flow adjustable by variator
IP55 sealed electrical cabinet including: touchscreen; start/stop button; emergency stop button; fuses and circuit breakers; fan speed variator; air temperature regulator after heater; humidity/temperature/differential pressure probe transmitters; safety: air temperature limit
Touchscreen
Start/stop button
Emergency stop button
Fuses and circuit breakers
Fan speed variator
Air temperature regulator after heater
Humidity, temperature and differential pressure probe transmitters
Safety: air temperature limit
Instrumentation: Pt100 temperature probe above fluidized bed bowl. 3 RH/temperature probes. Differential pressure sensor across fluidized bed bowl. Electronic balance. Air flow measurement by aerofoil profile probe with differential pressure sensor. Data acquisition and display on approx. 7" touchscreen with USB data storage and PC communication.
Pt100 temperature probe above fluidized bed bowl
3 RH/temperature probes
Differential pressure sensor across fluidized bed bowl
Electronic balance
Air flow measurement by aerofoil profile probe with differential pressure sensor
Data acquisition and display on approx. 7" touchscreen with USB data storage and PC communication
