Level Measurement Bench

This bench enables the implementation of different level measurement technologies used in industry. Learning Objectives: Study of sensor installation. Study of different application cases. Learn about Level Measurement Bench exporters for optimal educational outcomes.. Sensor calibration. Determination of sensor characteristic curves and accuracy. Learn about Level Measurement Bench price for optimal educational outcomes..

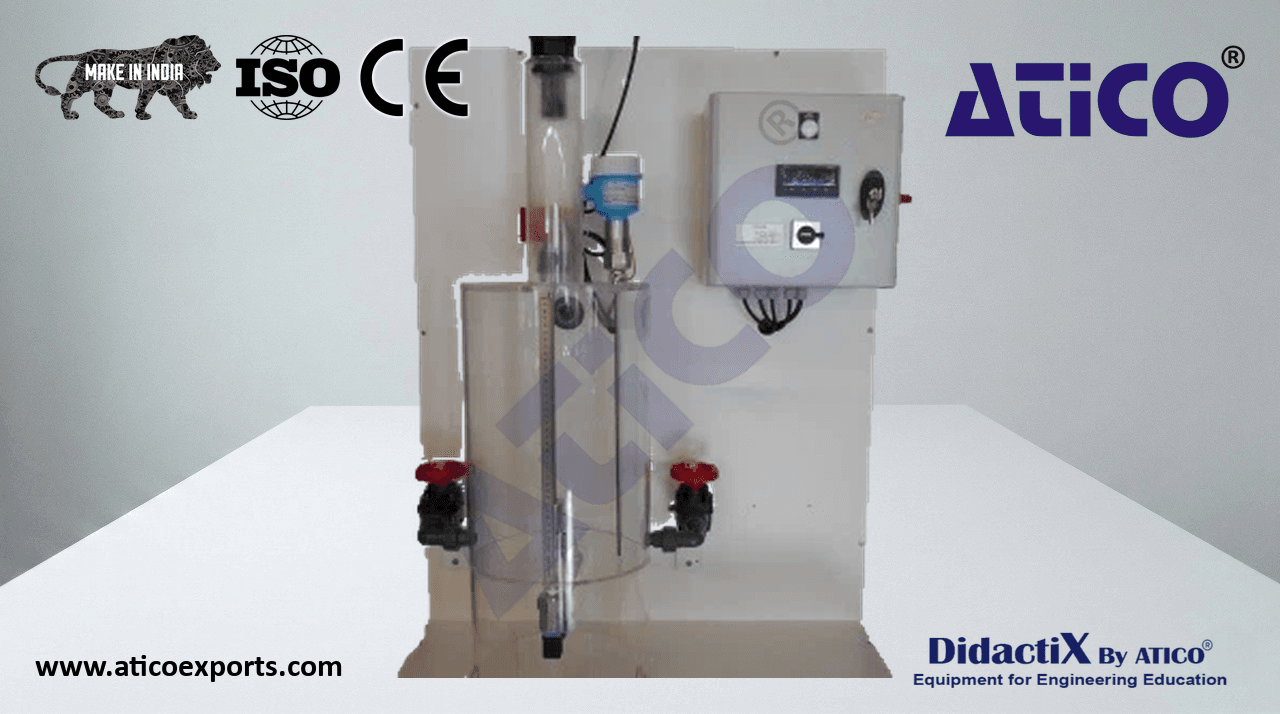

A vessel is fitted with an adjustable-pressure water supply, a feed flow control valve, an overflow, a total drain valve, an outlet flow control valve, and a level gauge. Multiple level sensor types are installed in the vessel: ultrasonic, capacitive, float, and hydrostatic pressure sensors.

One water supply circuit pressure reducer with pressure gauge.
One PVC membrane flow control valve for the feed.
One acrylic vessel with lid supporting the level sensors.
One capacitive level sensor with insulated rod; 4–20 mA output.
One ultrasonic level sensor; 4–20 mA output.
One hydrostatic pressure level sensor; 4–20 mA output.
One float level sensor; 4–20 mA output.
One digital indicator with bar-graph display; 4–20 mA input, measurement retransmission output 4–20 mA.
One PVC membrane flow control valve for the outlet.
One IP55 sealed electrical cabinet containing: lockable isolator; power indicator light; key-operated emergency stop; multi-channel level indicator.
