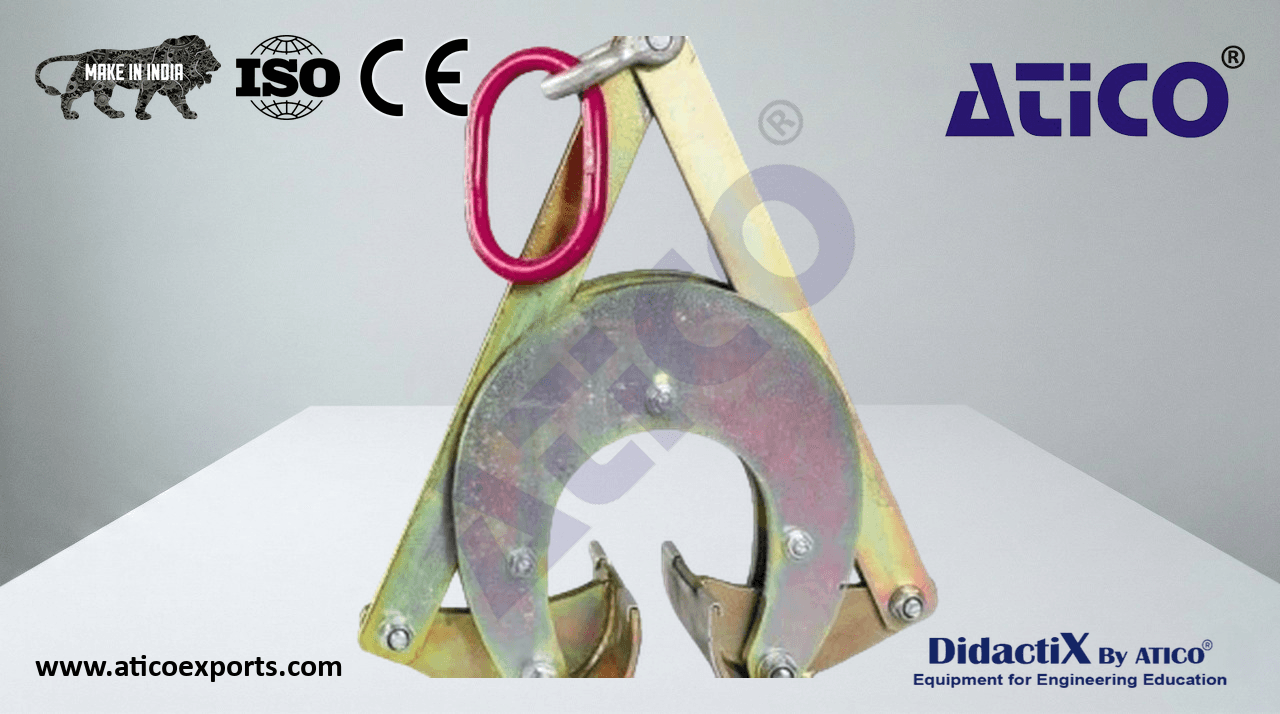

Lifting Clamp

The set consists of a model clamp, a volumetric model, and a site lifting clamp. The lifting clamp is designed to lift plates of various thicknesses with a maximum mass of 750 kg. Educational Objectives: Students draw the kinematic diagram of the clamp, take measurements, and graphically determine the forces on each part. Learn about Lifting Clamp equipment for optimal educational outcomes.. Kinematic diagram, determination of forces on each part, fundamental principle of statics and graphical problem solving.

Composition

• Site lifting clamp
• Model clamp
• Accessories for manipulations (pulleys, axles, knurled buttons, dynamometers, etc. )
• CD-ROM with educational and technical resources (3D).

Site lifting clamp
Model clamp
Accessories for manipulations (pulleys, axles, knurled buttons, dynamometers, etc.)
CD-ROM with educational and technical resources (3D)
