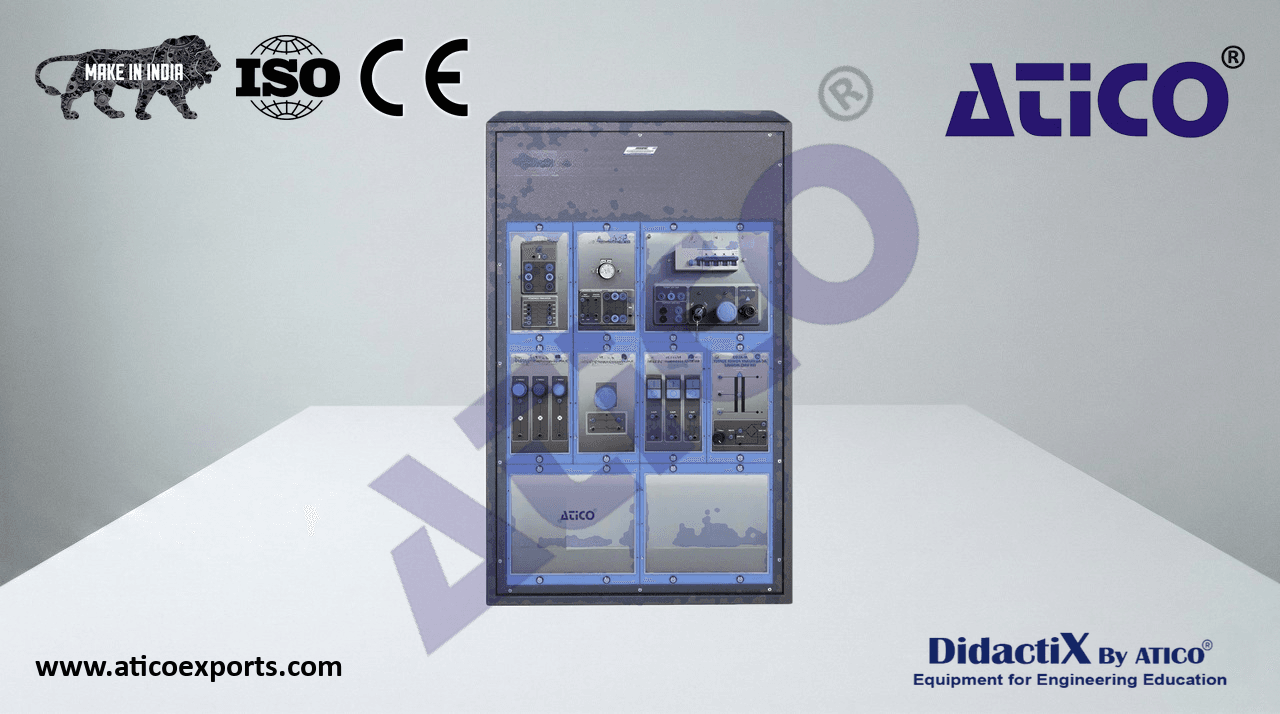

Logical Control Operations Application

The Logical Control Operations Application, to study basic logics operations using timers, push-button, signaling lamps, contactors, thermal relays and combinations of them used in the industrial world.

ATENG 11044 — Logical Control Operations Application

• The application “ATENG 11044” includes the following elements:
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
• Three-phase supply hose with IP44 3PN+E 32 A 400 V connecting plug.
  N-ALI01
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-PUL02. Emergency Stop Push-Button Module.
  Emergency push-button to connect or disconnect the control circuit.
• Nominal voltage: 24 VAC.
• Contacts:
  One normally open contact (NO). N-PUL02
  One normally close contact (NC).
• N-PUL48. Module with Three Dual Camera Push Buttons.
  Two independent chambers.
• Nominal voltage: 24 VAC.
  Three double chamber push-buttons (green and red).
• Contacts: N-PUL48
  Three normally open contacts (NO) for green switch.
  Three normally close contacts (NC) for red switch.
• N-LAM02. Auxiliary Lamps Module.
• Nominal voltage: 24 VAC.
  Three lamps (red, yellow and green).
• N-CON01. Three-Pole Contactor Module (24 VAC). (2 units). N-LAM02
• Nominal voltage for power contacts: 400 VAC.
• Nominal voltage for control contacts: 24 VAC.
• Nominal voltage for the control coil: 24 VAC.
• Contacts:
  Three-phase normally open contact (NO) for power circuit.
  Three normally open contacts (NO) for control circuit.
  Two normally close contacts (NC) for control circuit. N-CON01
• N-REL30. Synchronization Relay Module.
• Nominal voltage for power contacts: 400 VAC.
• Nominal voltage for control contacts: 24 VAC.
• Nominal voltage for the control coil: 24 VAC.
• Contacts:
  One three-phase normally open contact (NO) for power circuit.
• Three auxiliary contacts:
  N-REL30
  One instantaneous normally open contact (NO).
  One time normally open contact (NO).
  One time normally close contact (NC).
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Voltage supply (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-Phase: 24 VAC / 12 VAC.
• 24 VDC.
• 0 – 24 VDC through potentiometer.
• All necessary cables to realize the practical exercises are included. N-ALI03
  Cables and accessories, for normal operation.
