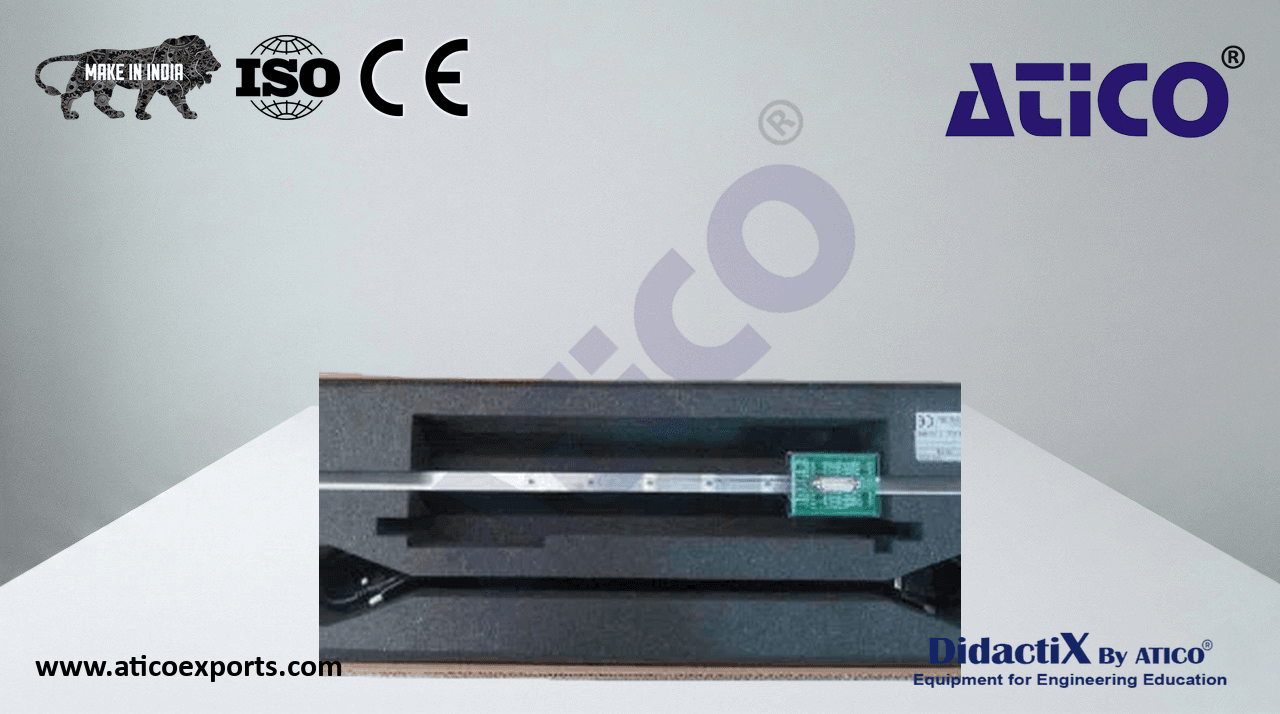

Longitudinal Distribution Study Beam

Longitudinal strain distribution at various points along an instrumented bar placed on the tension-flexion test bench. A 6-channel strain gauge bridge displays the deformation values.

Technical Description: Each specimen is equipped with:

• 12 Constantan 350 Ω strain gauges
• Gauge factor K = 2. 04
• 1 wiring circuit for full bridge gauge configuration
• 1 test certificate
• 1 shielded 15-channel connection cable, 1 m length, for the strain gauge bridge

Material: Tension specimen — light alloy.

12 Constantan 350 Ω strain gauges
Gauge factor K = 2.04
1 wiring circuit for full bridge gauge configuration
1 test certificate
1 shielded 15-channel connection cable, 1 metre long, for the strain gauge bridge
