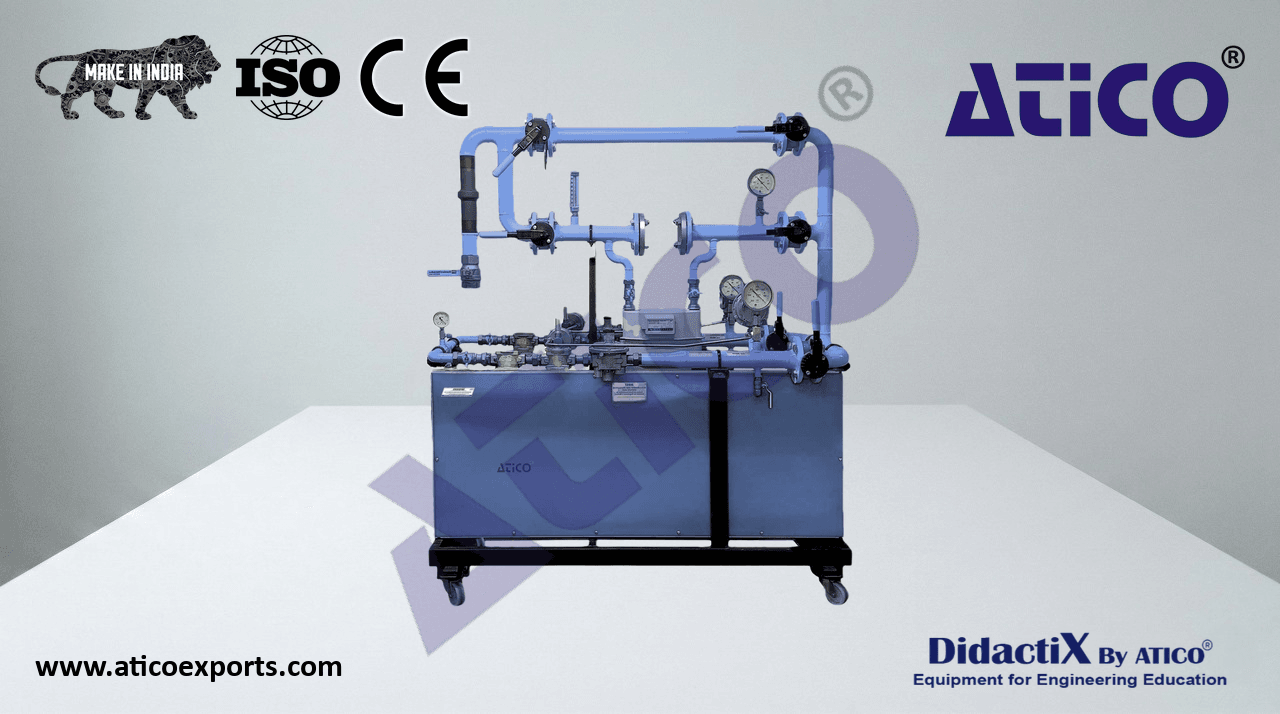

ATENG 12959 — Measurement and Regulation Station Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Main components of the station:
- Air compressor:
- Maximum flow rate: 350 l/min.
- Maximum pressure: 10 bar.
Ten cut-off valves (butterfly and ball) approved for gas.
- Two line filters: DN25/PN16.
- Four pressure triggers:
- Two maximum pressure triggers: 400 – 800 mbar. ATENG 12959 detail
- Two minimum pressure triggers: 8 – 45 mbar.
- Gas meter. Maximum flow: 10 m³/h.
- Five pressure manometers:
- High pressure manometer: 0 – 16 bar.
- Four low pressure manometers: 0 – 0.6 bar.
- Two differential manometers: 0 – 1000 mbar.
Billing manometer.
- One thermometer: -10 – 50 °C.
- Two relief valves: 16 – 2100 mbar.
- Two dielectric joints: PN10.
- Two pressure regulators: 0.5 bar.
- Assembly and disassembly tools set:
Tool case with several compartments.
Six combination wrenches.
Two flat screwdrivers.
Soft face hammer.
Spare gaskets for all the connections.
Cables and accessories, for normal operation.
