Micro Solar Power Plant

A micro solar power plant is an electrical power station using solar energy to produce electricity on a small scale via photovoltaic panels. This electricity can be stored in batteries to supply isolated sites. Learning Objectives: Educational system for student training. Learn about Micro Solar Power Plant specifications for optimal educational outcomes.. Enables students to be introduced to the operation of a photovoltaic installation: study of industrial components (photovoltaic panel, charger, inverter, electrical components); wiring of elements; commissioning and configuration of components; study of component chain efficiency and energy balance by measuring voltages and currents at various circuit points and from data provided by available instruments (control screen, voltage and current clamp meter). Calculation of battery energy storage autonomy. Learn about Micro Solar Power Plant suppliers for optimal educational outcomes..

The system consists of industrial components and is manufactured in compliance with CE standards. One 12 V – 115 Wc – 0.

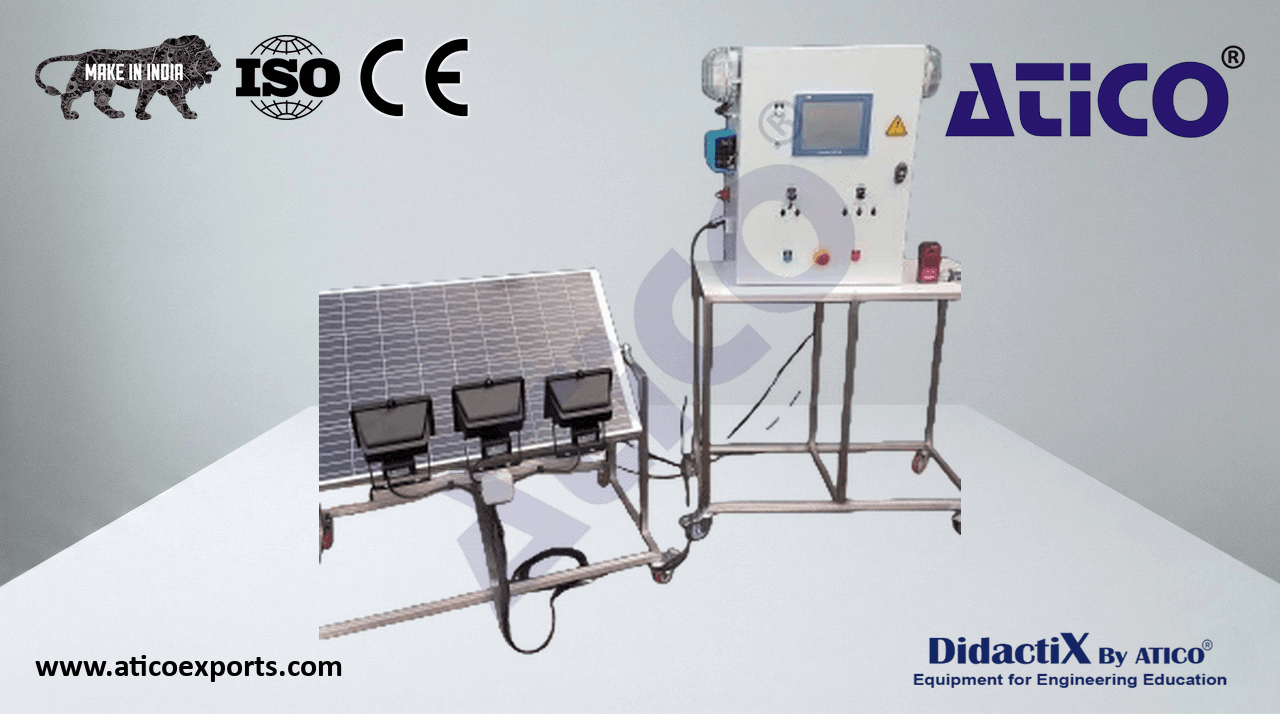

One 12 V – 115 Wc – 0.69 m² monocrystalline solar panel mounted on a frame with castors; inclination adjustable.
One IP66 control cabinet mounted on a stainless steel tube frame with castors. The cabinet contains: one 12 V MPPT solar controller, 10 A charge current, max. 130 W, with ModBus RS485 communication; one fully configurable 12 V / 230 V, 175 W continuous inverter.
Three 40 W, 25 W, and 15 W (220 V) load lamps.
Two 10 W and 25 W (12 V) load lamps.
One network analyser at the inverter output.
5 voltage/current measurement points accessible on the front panel.
One 12 V 60 Ah gel battery.
One 12 V / 10 A battery charger.
One 10″ touchscreen terminal for data acquisition, power calculation, and data storage, enabling: synoptic visualisation of measured data (voltage/current at 5 points, irradiance) and calculated data (power at 5 points, efficiency); graphical display of time-based data; CSV data export (processable in a spreadsheet).
Differential circuit breakers and fuses.
Start/stop button.
Mushroom-head emergency stop button.
One user outlet.
One USB port.
