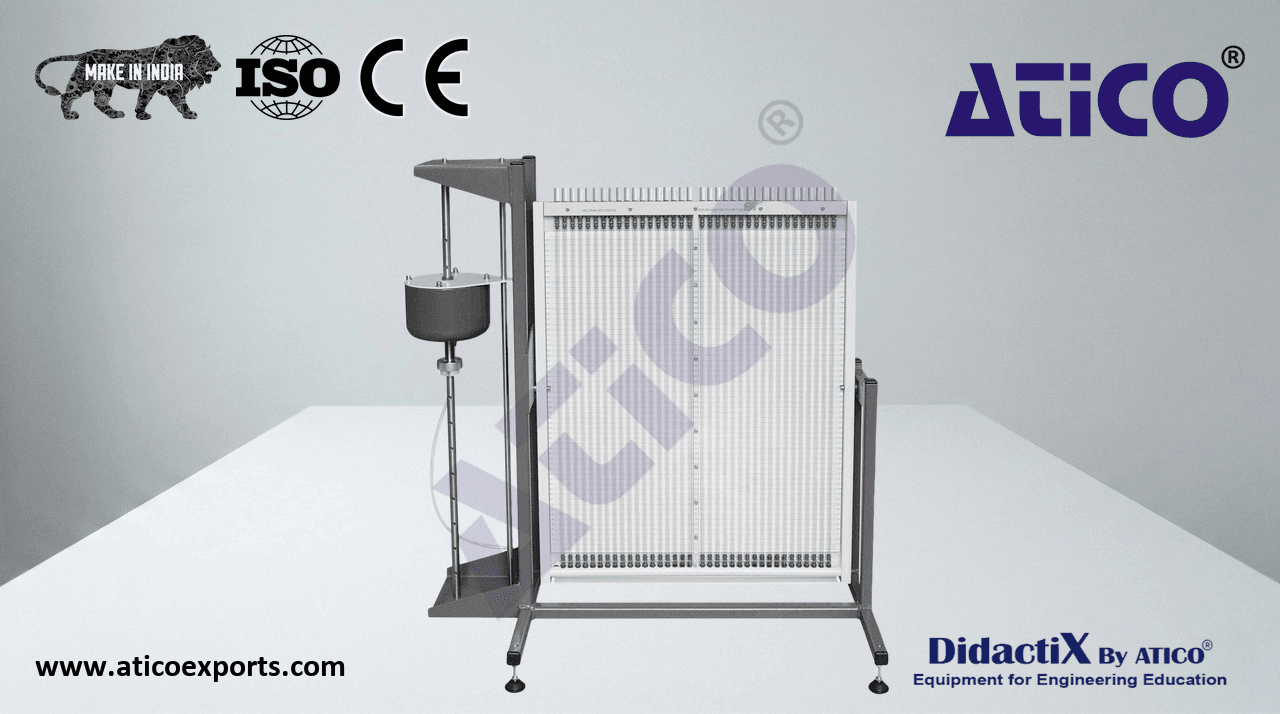

MULTI-TUBE MANOMETER

A tilting 36-tube manometer for use with Subsonic Wind Tunnels and other products, or as a general purpose instrument.

A 36-tube tilting manometer for measuring pressure on models in subsonic wind tunnels and fan test sets. A backboard with graduated scale holds each manometer tube. For safety and convenience, the manometer uses water as the manometer fluid. Learn about MULTI-TUBE MANOMETER manufacturers for optimal educational outcomes.. This is via an adjustable reservoir with fine-adjust hand-wheel held at the side of the equipment. Water colouring is included to aid visibility. Learn about MULTI-TUBE MANOMETER exporters for optimal educational outcomes.. The top of each manometer tube has a connection piece for tubing to connect to pressure tappings on the equipment being monitored. The whole manometer tube assembly is mounted on a swivel. Learn about MULTI-TUBE MANOMETER equipment for optimal educational outcomes.. This allows it to be tilted in pre-set increments to increase the sensitivity of measurement. Adjustable feet enable the whole apparatus to be precisely levelled before use. Learn about MULTI-TUBE MANOMETER suppliers for optimal educational outcomes.. The manometer is supplied with operating instructions, a filling funnel and a spirit level.
