Orifice and Free Jet Flow Deluxe

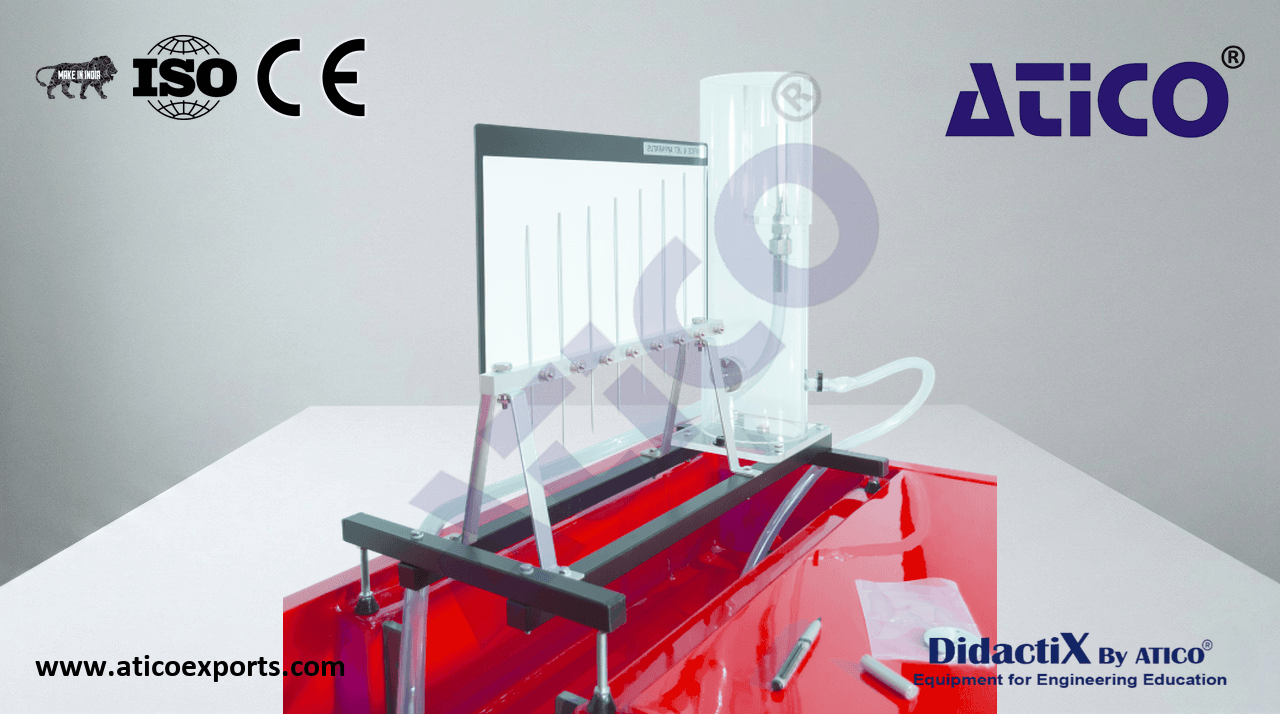

A constant head tank is maintained with water from the Hydraulics Bench. The orifice (3mm or 6mm) is installed at the base of this tank ensuring a flush inside surface. The jet trajectory is mapped using 8-point gauges to determine the discharge coefficient. Learn about Orifice and Free Jet Flow specifications for optimal educational outcomes..

The Orifice & Free Jet Flow accessory incorporates a constant head tank fed with water from the hydraulics bench. The orifice is installed at the base of this tank by means of a special wall fitting which provides a flush inside surface.

• Orifice diameters: 3.0mm and 6.0mm
• Jet trajectory probes: 8
• Max constant head: 410mm
