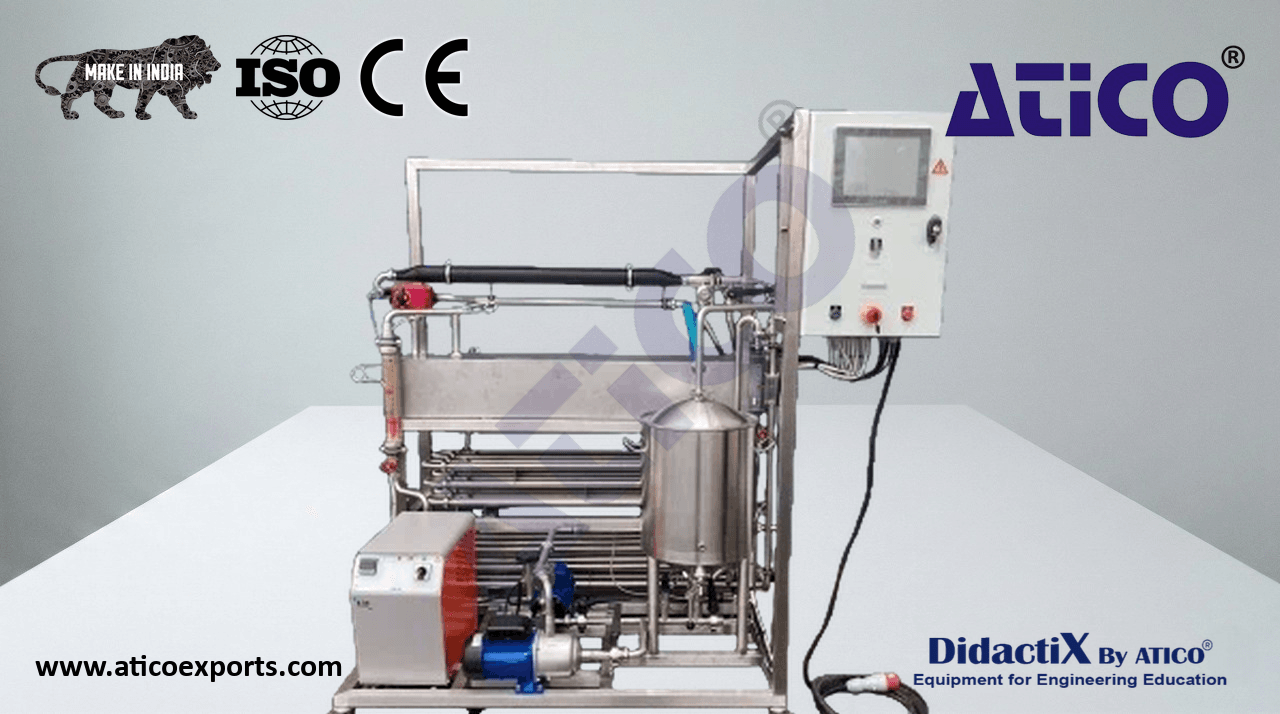

Pasteurization Pilot Unit with Holding Tube and Tubular Heat Exchangers

Unit designed for pasteurization of 10 to 100 L/h of product at 85°C. For products with viscosity below 20 cP. Pedagogical Objectives: Study of heat transfer efficiency in a flattened-tube heat exchanger and its properties for pasteurization. Learn about Pasteurization Pilot Unit with Holding Tube and Tubular Heat Exchangers India for optimal educational outcomes.. Study of heat exchanger operation. Study of parameters: flow rate, pasteurization temperature and holding time. Learn about Pasteurization Pilot Unit with Holding Tube and Tubular Heat Exchangers price for optimal educational outcomes.. Calculation of pasteurization value. Study of temperature regulator operation.

Technical Description: The pasteurizer consists of three 304L stainless steel thermal exchange zones:

• Preheating (~0. 5 m²): tubular product-in/product-out heat exchanger
• Pasteurization (~1.

Preheating ~0.5 m²: tubular product-in/product-out heat exchanger
Pasteurization ~1.0 m²: tubular product/water heat exchanger
Cooling ~0.5 m²: tubular product/water heat exchanger
One holding zone
One 30 L 304L stainless steel launch tank with lid and drain valve
One stainless steel centrifugal pump, 4 bar, 250 L/h
One glass/stainless steel needle flowmeter (0–160 L/h) on product feed circuit
One cold water flowmeter (60–600 L/h)
One hot water flowmeter (150–1,500 L/h)
One diversion valve at the pasteurization zone outlet
5 Pt100 temperature probes, 3 thermometers
One diversion valve dependent on pasteurization outlet temperature measurement
External connections: SMS standard
One hot water production unit
One electrical cabinet with pump control and protection, temperature regulator, temperature display on integrated touchscreen and data recording to USB key. PC communication with pasteurization value calculation software
