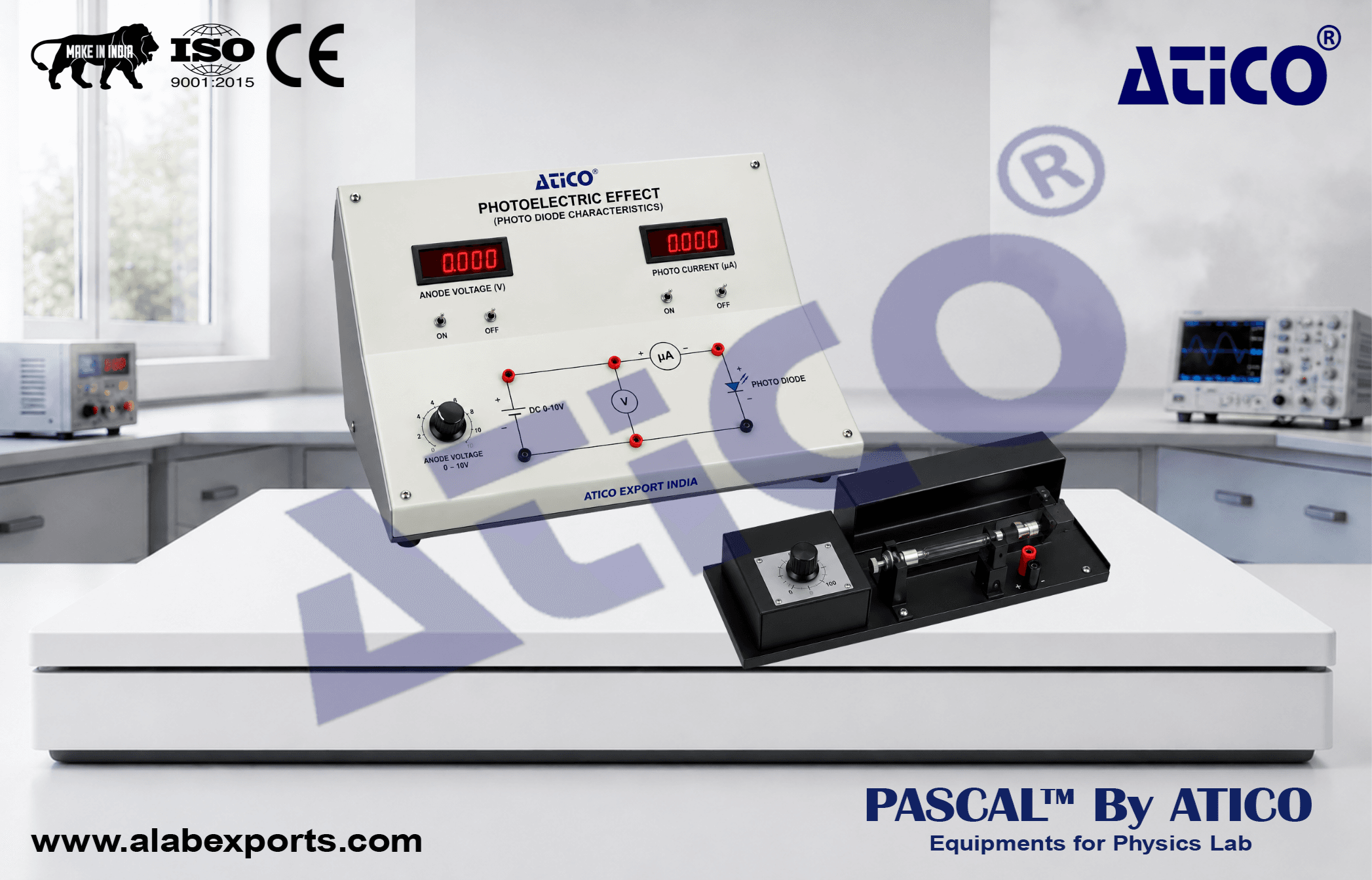

Photo Diode Characteristics

EXPERIMENT: DETERMINATION OF RESPONSIVITY, QUANTUM EFFICIENCY AND I-V CHARACTERISTICS

EXPERIMENT SETUP CONSISTS OF:

• Photodiode Characteristics Kit – Variable regulated power supply, digital voltmeter and digital milliammeter
• Illumination Chamber – Independent variable output power supply with LED power displayed in mW and photodiode slot at marked distances
• Set of Patch Cords

Designed and manufactured by Atico Export to meet the practical demands of modern laboratories.
