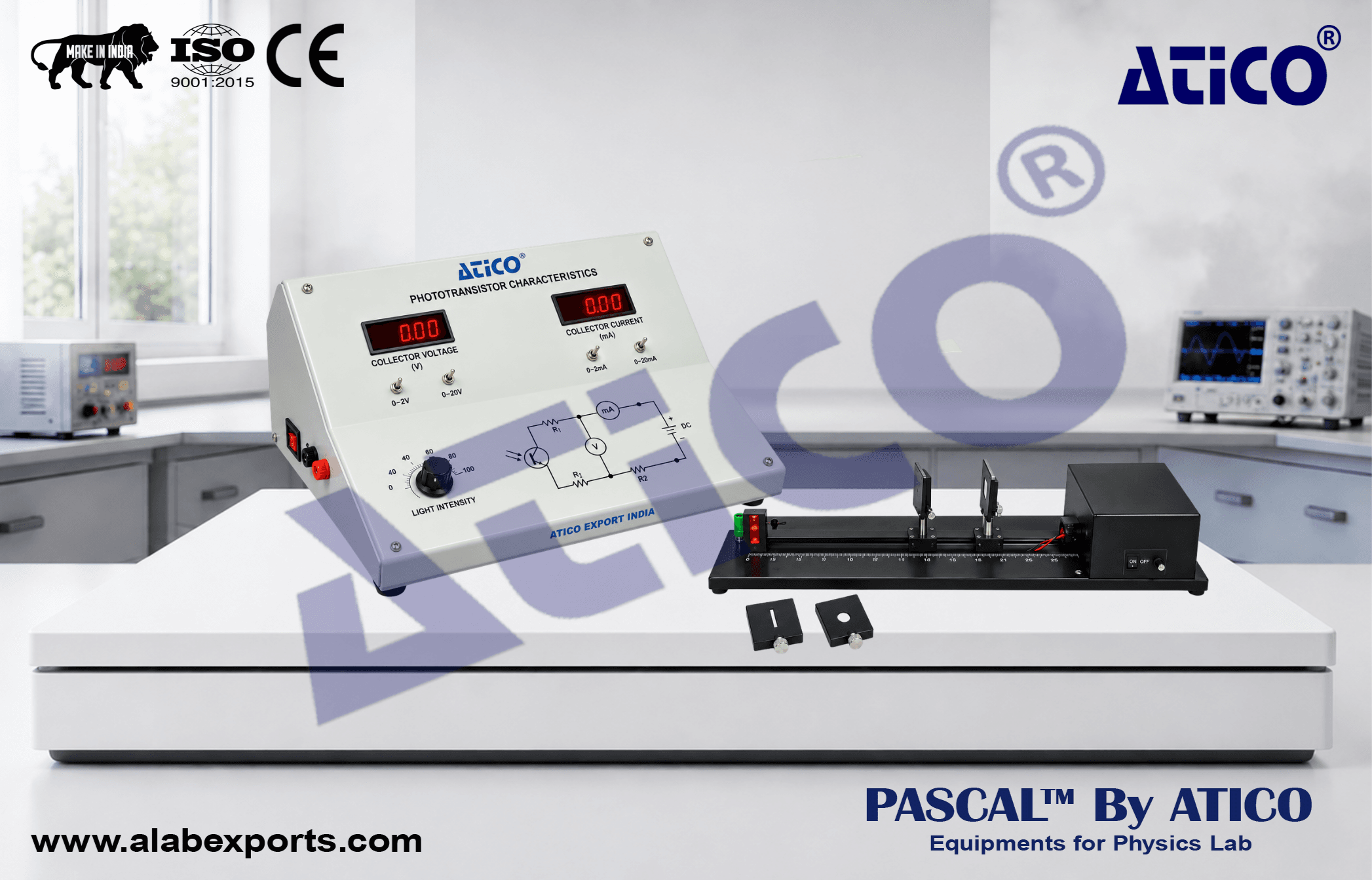

Photo Transistor & LDR Characteristics

EXPERIMENT: RESISTIVITY VARIATION WITH TEMPERATURE FOR A SEMICONDUCTOR SAMPLE AND DETERMINATION OF ITS ENERGY GAP

EXPERIMENT SETUP CONSISTS OF:

• Phototransistor / LDR Characteristics Kit – Variable regulated power supply, digital voltmeter and digital ammeter
• LED Illumination Chamber – Independent LED illumination power supply and phototransistor / LDR component slot at marked distances
• Set of Patch Cords

Designed and manufactured by Atico Export to meet the practical demands of modern laboratories.
