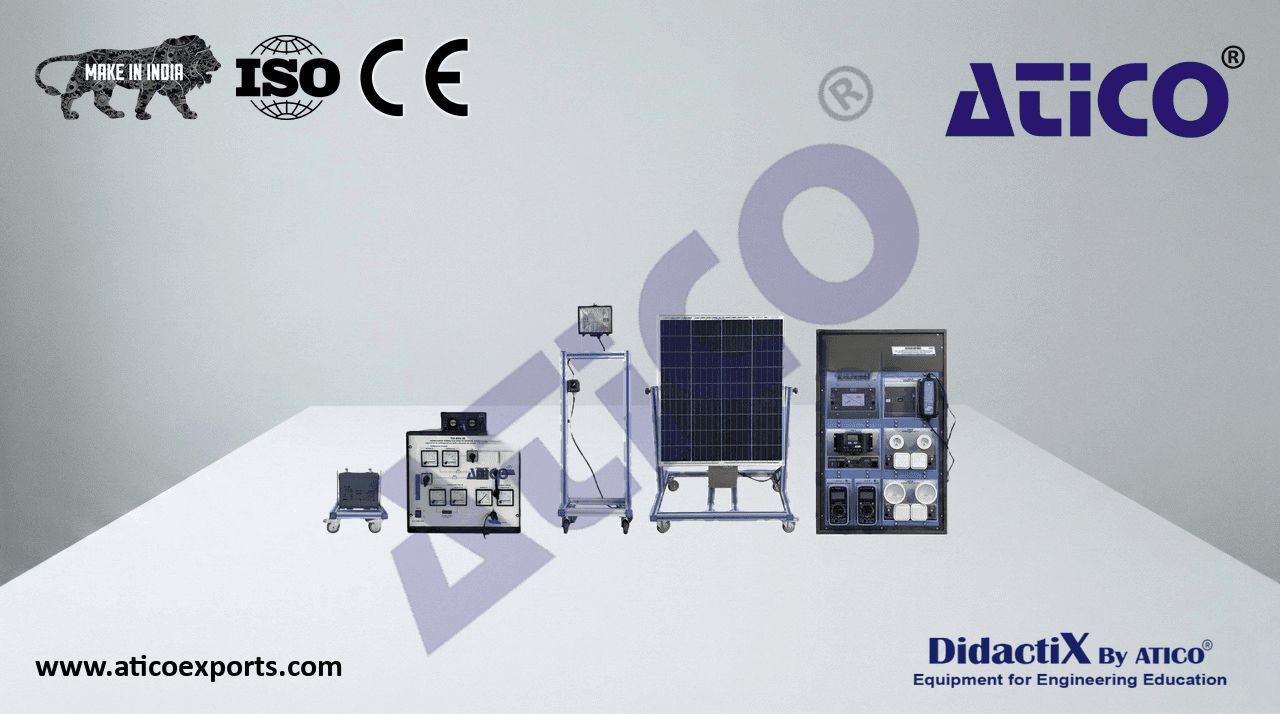

Photovoltaic Solar Energy Modular Unit (Complete Version)

Photovoltaic Solar Energy Modular Unit (Complete Version), is a laboratory scaled unit designed to study all the parameters involved in the solar radiation direct conversion into electricity.

ATENG 11495 — Photovoltaic Solar Energy Modular Unit (Complete Version)

• Supply and Consumption at 12 VDC.
  Supply and Consumption in alternating current (AC).
  Supply to the electrical grid.
• Photovoltaic module:
  Solar panel (polycrystalline) mounted on an anodized aluminum structure with wheels for mobility, and with calibrated cell to measure
  solar irradiation.
• It consists of thirty six high performance photovoltaic cells (35 x 55 mm), with a typical power of 50 Wp for a 17 VDC voltage.
  Both the protections and the materials used give it a very good resistance to water, abrasion, hail impact and other adverse environmental
  factors.
• Technical data:
• Maximum nominal power: 66 W.
• Voltage at maximum power point (Vmpp): 17.8 V.
• Current at maximum power point (Impp): 3.70 A.
• Short-circuit current (Isc): 4.05 A.
• Open circuit voltage (Voc): 22.25 V.
• Dimensions: 660 x 35.5 x 780 mm. Weight: 3 Kg approx.
• Lamp module:
• Composed by one lamp to simulate the sunlight. Regulated power: 0 – 400 W.
  Battery offering optimal performance with low power applications.
  Set of interconnection cables.
• The “ATENG 11495” unit includes the following elements:
• EE-HYB-KIT. Hybrid Grid Inverter Kit with Self-Energy Management.
  This inverter can take electrical energy either from the laboratory power grid (50/60 Hz) or
  from a photovoltaic panel (not included) to supply power to a local load (included) or to store
  such energy in a battery (included). This criteria will depend on the amount of stored energy in
  the battery at any given time and whether or not sufficient solar energy is available to supply
  the energy demand at that time.
  In order to study the different modes of operation of the hybrid inverter, this kit consists of a
  battery, a variable resistive load and several analog DC and AC current and voltage meters.
  Depending on the energy stored in the battery and the energy demanded by the variable
  load, it will be possible to observe the inverter behavior by means of the analog meters
  EE-HYB-KIT
  located at different points of the electrical circuit. For example, it will be possible to measure
  the current flows in and out of the battery, the current consumed by the resistive load and also,
  the current flows coming from the grid in case there is not enough energy in the battery to
  supply the demand of the resistive load.
• Supply voltage: 230 VAC.
• Frequency: 50/60 Hz.
• Nominal power: 1000 W.
  Power switch.
• Bidirectional DC ammeter: -50 A – 0 – 50 A.
• DC voltmeter: 0 – 15 VDC.
• AC ammeter for load consumption measurement: 0 – 5 A.
• AC voltmeter for measuring the voltage at the load: 0 – 250 VAC.
• AC ammeter for measuring input current of the network: 0 – 5 A.
• AC voltmeter for mains voltage measurement: 0 – 250 VAC.
  Mains disconnecting switch.
  Load disconnecting switch.
  Battery disconnecting switch.
• Battery circuit breaker: 40 A.
• Differential circuit breaker: 230 VAC, 10 A, 30 mA.
• Fuses: 2 x 16 A.
• Variable resistor: 0 – 1000 Ohm, 1000 W.
• Hybrid inverter:
• Battery voltage: 12 VDC.
• MPPT regulator: 17 – 80 VDC.
• Gel battery:
• Nominal voltage: 12 VDC.
• Capacity: 60 Ah.
  3

Specifications

• ATENG 11497. Photovoltaic Solar Energy Modular Unit (Intermediate Version).
• N-ES10. Solar charge controller with an automatic recognition for operating voltage 12 V or
• 24 V. It monitors several parameters such as voltage, current and charge level of
  N-ES10
  the battery, load current, status, etc. Additional functions can be activated such as
  the settings, night light function and auto-test. The regulator is equipped with various
  devices to protect its electronics, battery and load.
  N-ES20
• N-ES20. 12 VDC Load Module.
• Loads module that incorporates two 12 V, 20 W lamps, with independent switches.
  N-ES30
• N-ES30. DC/AC inverter that outputs a sinewave shaped output of 230 V / 50 Hz ± 2% and
• the nominal input voltage is 12 VDC. Two different operating modes: continuous
  mode and ASB mode (Auto Standby) to reduce the power consumption. It is provided
  with a diagnosis system to indicate the user the status by different flash sequences.
  N-ES40
• N-ES40. AC Voltage measurements module until 250 V and DC until 250 V (digital multimeter).
• N-ES50. Loads module that incorporates two lamps of 220 V, 50 W, with independent switches. N-ES50
  N-ES80. Module for measurements of solar irradiation (W/m2) and measurements of current
• until 10 A, with digital multimeter.
  N-ES80
• N-ES90. Module for 12 VDC battery charger.
  Cables and accessories, for normal operation.
  N-ES90
