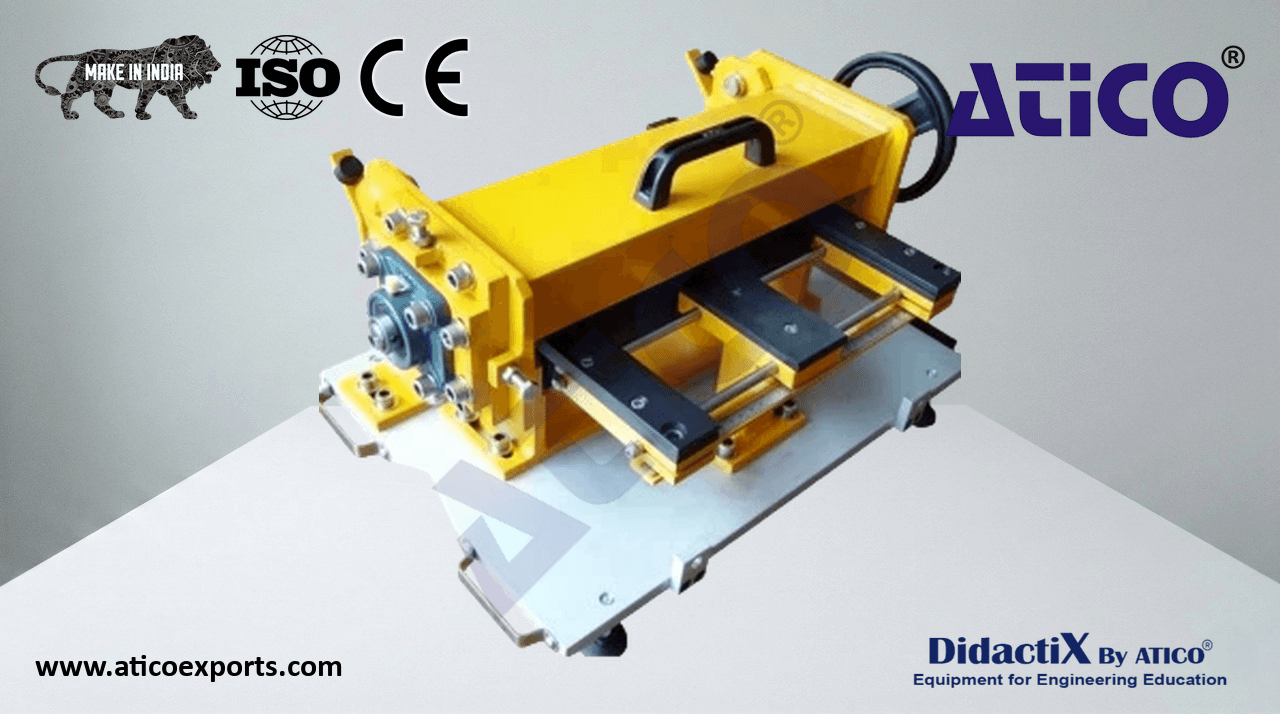

Pinch Roll Training System

Product Overview

This system is designed for BEP and BAC PRO maintenance training. It consists of two pinch rolls whose industrial function is to drive a strip or sheet material (steel strip, aluminum strip, paper). Pinch rolls are generally found in the metallurgy and paper-making sectors (finishing lines, paper production). Learn about Pinch Roll Training System equipment for optimal educational outcomes.. The raw material for educational use is A4 or A3 paper sheets. It is a bench machine requiring multiple mechanical adjustments to achieve correct paper sheet drive. Learn about Pinch Roll Training System specifications for optimal educational outcomes.. The final state of the paper reflects adjustment faults. Various components (bronze bushings, bearings, guide bars) allow use in preventive and corrective maintenance contexts. Learn about Pinch Roll Training System exporters for optimal educational outcomes..

Applications

**Technical

Technical Specifications

Specifications**

This is a reduced-scale reproduction of an industrial machine called pinch rolls, used to guide and drive steel, aluminum, or paper strips on production lines. It essentially consists of a support table, an upper roll, a lower roll, two paper input and output guide systems, and a manual drive system. It has been designed to be particularly robust, with rigid welded steel parts, industrial-grade components, and large-dimension fasteners. This allows multiple assembly and disassembly operations without risk of damage or loss of components. Composition

The pinch roll assembly
Two faulty guide bushings
Two faulty bearings
One faulty bearing housing
A ream of paper
A complete set of drawings (nomenclature, assembly, and detail drawings) under a 3D modeling format
Technical and educational documentation on CD-ROM

Complementary equipment (optional): All measurement and control equipment: torque wrench, circlip pliers, level, square, depth gauge, comparator, pair of V-blocks, standard tooling. Dimensions and mass: Length: 680 mm – Width: 395 mm – Height: 310 mm – Weight: 60 kg.
