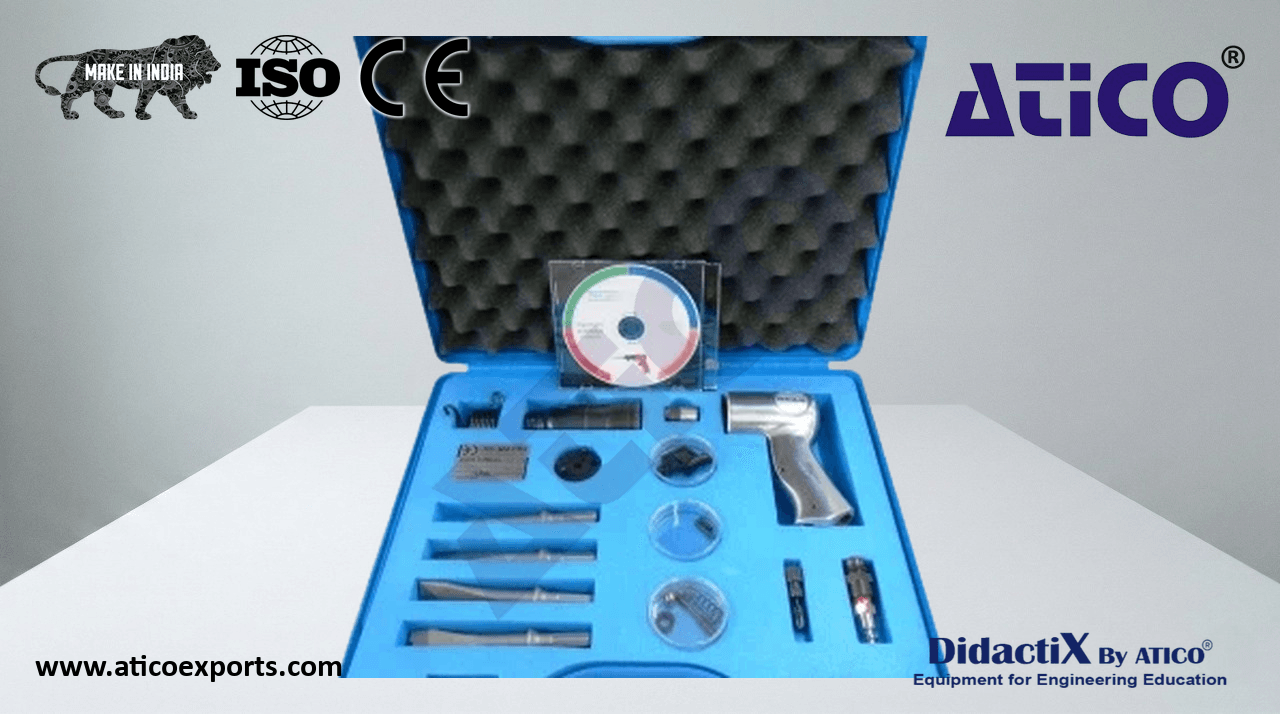

Pneumatic Chipping Hammer

The pneumatic chipping hammer kit is an educational tool developed from a manufactured product used by construction professionals. Students assemble and disassemble the tool, analyze constructive solutions, and study the product–process–material relationship.

Proposed Lab Topics

• Analyze constructive solutions
• Identify the functions in which a part participates and inventory the surfaces involved
• Specify materials by interpreting material designation
• Distinguish and identify manufacturing processes by observing part characteristics
• Study the product–process–material relationship
• Conduct a pneumatic study

Composition

• Disassembled pneumatic chipping hammer
• CD-ROM with educational and technical resources (3D)

Analyze constructive solutions
Identify the functions in which a part participates and inventory the surfaces involved
Specify materials by interpreting material designation
Distinguish and identify manufacturing processes by observing part characteristics
Study the product–process–material relationship
Conduct a pneumatic study
Disassembled pneumatic chipping hammer
CD-ROM with educational and technical resources (3D)
