Pneumatic Toggle Clamp

The pneumatic toggle clamp is used for example for clamping parts during machining operations on machine tools and for assembling mechanical parts by bonding. Educational Objectives: Development of a computer construction tree generating a 3D model for a part, kinematic diagram.

Composition

• A pneumatic toggle clamp
• CD-ROM with educational and technical resources (3D and 2D)

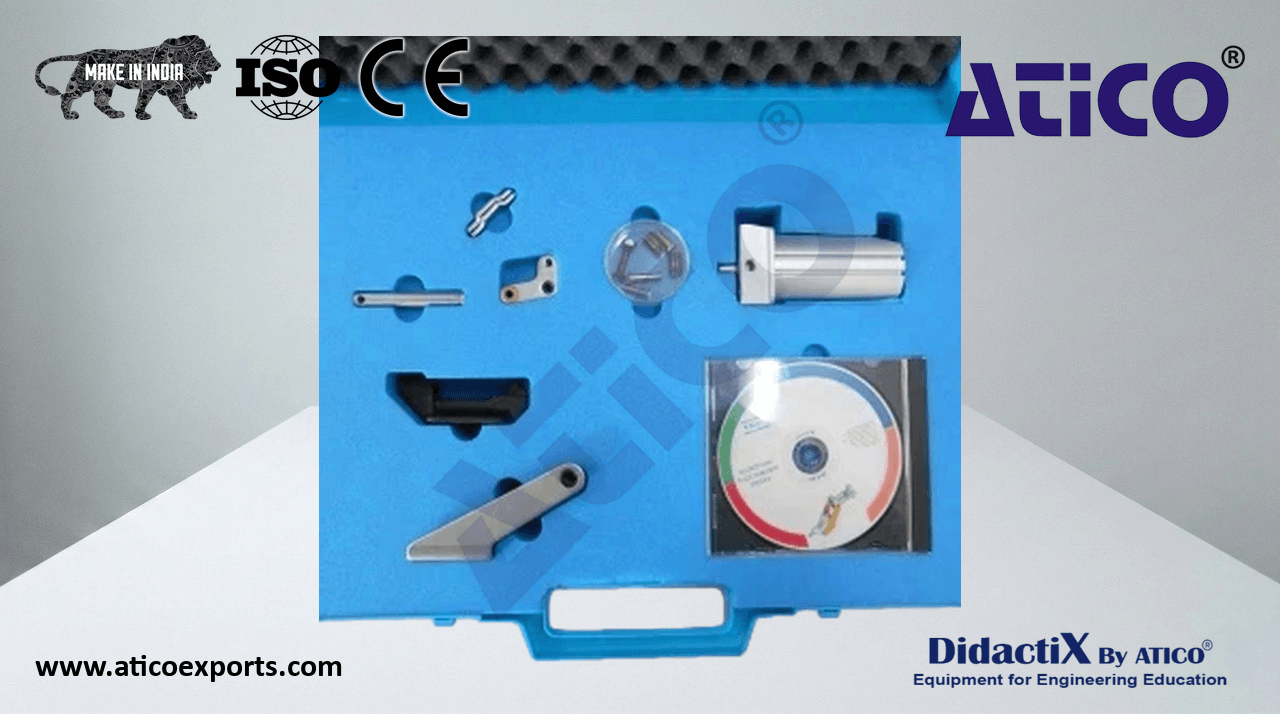

A pneumatic toggle clamp
CD-ROM with educational and technical resources (3D and 2D)
