Position Control Application

The Position Control Application, to study different types of position sensors and their possible applications.

ATENG 11068 — Position Control Application

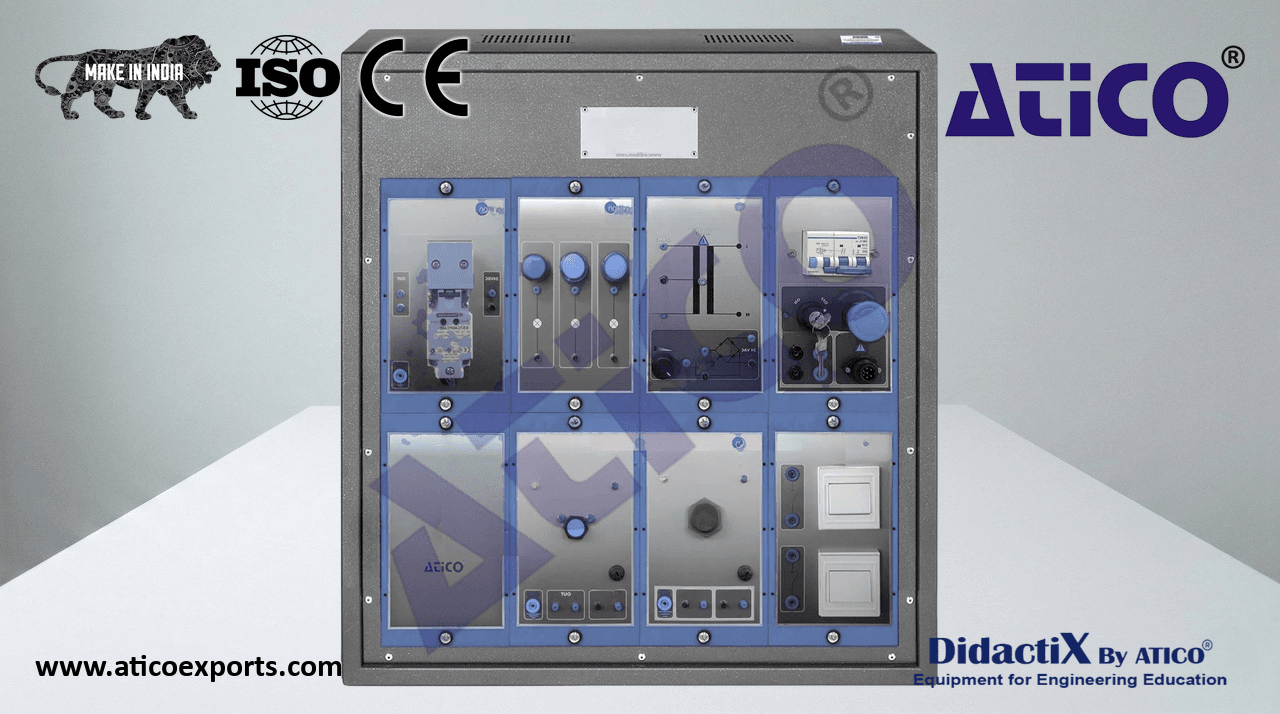

• The application “ATENG 11068” includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON/OFF removable key.
• Output voltage connections:
  N-ALI02
• Two single-phase: 230 VAC.
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-phase 24 VAC / 12 VAC.
  N-ALI03
• 24 VDC.
• 0 – 24 VDC through potentiometer.
• N-INT14. Module of Two Single-Pole Circuit Breakers.
  Two single-pole switches.
  Each switch has one input terminal and one output terminal.
• 10 A fuse.
  N-INT14
• Nominal voltage: 230 VAC
  Two terminals.
• N-SEN29. AC Cylindrical Inductive Proximity Sensor Module.
• Supply voltage: 24 VAC.
• Output voltage: 0 – 24 VDC.
  Detects metallic bodies.
  N-SEN29
• Detection maximum: 10 mm.
  Fuse 250 mA.
  Input and output terminals.
• N-SEL03. Three Pilots Light Module.
• Voltage supply: 24 VAC.
• Colors: red, yellow and green.
  N-SEL03
  3

Specifications

• N-SEN04. Cylindrical Inductive Proximity Sensor Module Type PNP.
• Voltage supply: 24 VDC.
• Output voltage: 0 – 24 VDC.
  Detects metallic bodies.
  N-SEN04
  NO contact.
  PNP output.
• Detection maximum: 15 mm.
  Status and detection LED.
  Input and output terminals.
• N-SEN14. AC Cylindrical Capacitive Proximity Sensor Module.
• Voltage supply: 24 VDC.
• Output voltage: 0 – 24 VDC.
  Detects metallic and non metallic bodies.
  N-SEN14
• Detection maximum: 10 mm.
  Status and detection LED.
  Fuse 250 mA.
  Input and output terminals.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
