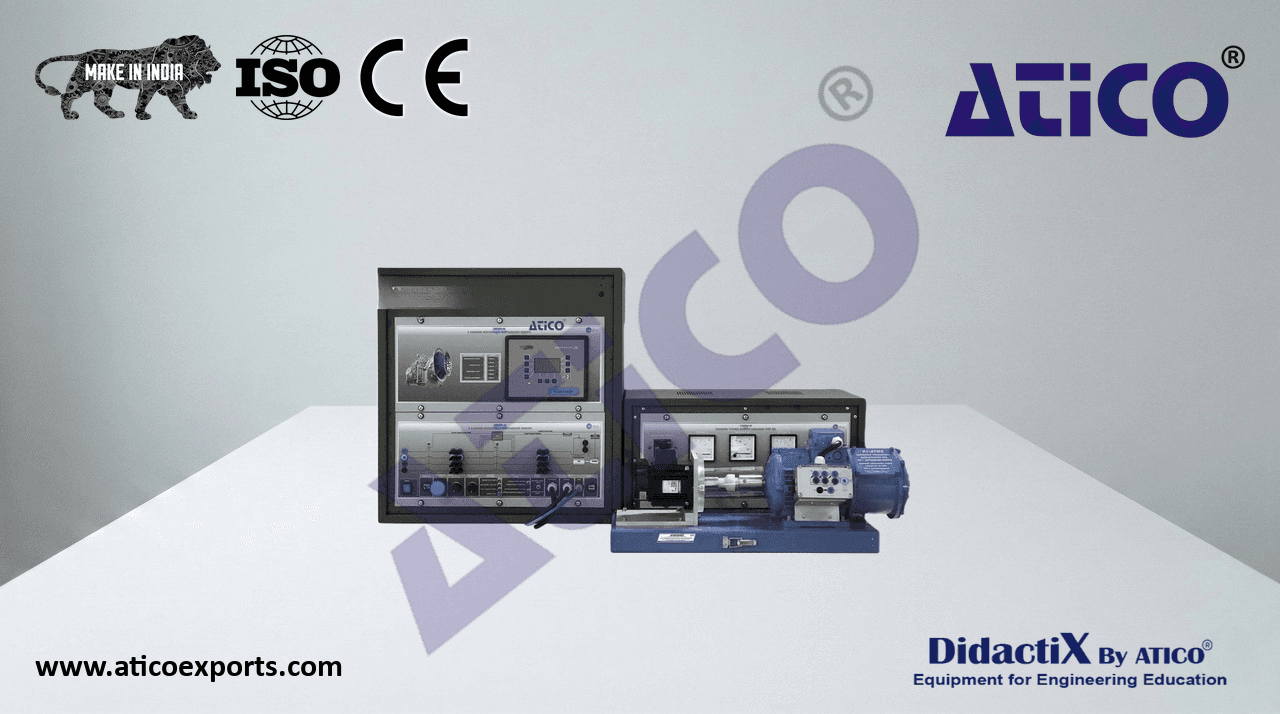

ATENG 11455 — Power Transmission Application with Synchronous Generator
(for main items)
- With this unit there are several options and possibilities:
- Main items: 1, 2, 3 and 4.
- Optional items: 5, 6 and 7.
- Let us describe first the main items (1 to 4):
- 1AEL-TI-07. Application:
- EMT6/1K. Independent Excitation 3PH Synchronous Motor-Generator, 1 kW.
- Nominal power: 1000 VA.
- Power factor: 0.8.
- Nominal output voltage: 3 x 400 VAC.
- Frequency: 50 / 60 Hz. EMT6/1K
- Speed: 3000 rpm.
- Nominal output current: 0.8 A.
- Nominal excitation current: 5 A.
- Shaft height: 71 mm.
- N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition.
The network analyzer module allows fulfilling measurements, displaying and analyzing all
the parameters of the AC electrical networks. It has an LCD screen and push-buttons for the
navigation through the different menus. It includes specific software for monitoring current and
voltage curves, harmonics display, tariffs programming, alarms programming and electrical
parameters storage. N-EALD
- Features:
- Multifunctional three-phase power meter:
- Three-phase and single-phase voltage. Up to 690 VAC L-L.
- Line and neutral nominal current: 10 A.
Active, reactive and apparent power.
- Suitable frequencies: 25 Hz, 50 Hz, 60 Hz and 400 Hz.
Display of the V-I vector diagram.
- Supply voltage: 85 – 265 VAC.
- Energy quality control:
Current and voltage individual harmonics measurement. Up to the 40th harmonic.
Voltage and current THD, TDD and K-Factor.
Maximums and minimums display.
Waveforms display, 128 samples/sec.
- Events and data storage:
- Harmonics analyzer:
Voltage and current THD, current TDD and K-Factor, up to the 40th harmonic.
Current and voltage harmonic spectrum and angles.
- Tariff programming:
Class 0.5S IEC 62053 – 22, active and reactive power in four quadrants.
Measurement of the total and per phase three-phase active, reactive and apparent
powers.
Usage time, four energy/demand records of total tariffs.
Eight tariffs, four seasons and four types of days.
Automatic daily report of energy consumption maximums and minimums.
- Communications:
RS – 485 communication port.
4
Complete Technical Specifications (for main items)
- N-PSUB2. Power Generation Substation Module 2.
- Supply voltage: 400 VAC, 3PH + N.
ON / OFF switch.
- Power and signals connection:
Auxiliary connection.
- Three-phase turbine supply hose with IP44 3PN + E 32 A 400 V connecting plug.
- Three-phase generator supply hose with IP44 3PN + E 32 A 400 V connecting plug.
- Three switches to choose between the different modes:
Local and remote control mode. N-PSUB2
Manual and automatic speed control.
Manual and automatic excitation control
- Three control switches to:
Start and stop the turbine.
Give permission to synchronize the generator with the grid.
Give permission to close 52NET circuit breaker.
- Two potentiometers to regulate:
Turbine speed.
Generator excitation.
Emergency stop button.
Two circuit breakers for synchronization and stand-alone operations.
Different terminals to measure.
- Ethernet connection: RJ45 communication port for SCADA remote control.
- Automatic speed and voltage controller (easygen):
Enables to connect up to 16 electric generators in parallel-island with distribution of active
and reactive load and start/stop in function of the load demand.
Enables to connect a generator in parallel with the grid.
Enables different switches control modes, such as opening, closing and synchronization.
Analogical outputs to control voltage and frequency regulators.
Three-phase measurement of the grid and the generator voltage.
Three-phase measurement of the generator intensity and power.
Single-phase measurement of the grid intensity.
- Protection system:
- Generator:
Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), voltage
asymmetry, detection of dead busbars, overvoltage (32), load unbalance (46), negative
sequence power/reduced power (32R/F), overcurrent by defined curve (50/51), inverse
time overcurrent (IEC255), measured ground fault (50N/51N), phase rotation, switches
faults.
- Network:
Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), vector
jump, phase rotation.
- Six alarms:
- Alarm 1: Reverse power.
- Alarm 2: Overcurrent.
- Alarm 3: Over/undervoltage.
- Alarm 4: Inverse time overcurrent.
- Alarm 5: Over/under frequency.
- Alarm 6: Shutdown alarms.
- Four operation signals:
Ready for operation.
Start request.
Synchronization conditions.
Permission for synchronization.
5
Complete Technical Specifications (for main items)
- SERV01. AC Servomotor 1.
- Nominal power: 2000 W.
- Nominal voltage: 400 VAC.
- Nominal speed: 3000 rpm.
- Nominal current: 5 A.
- N-VPS01. AC 3PH Variable Power Supply Module. SERV01
ON / OFF removable key.
- Supply voltage: 3 x 400 VAC + N.
Emergency stop push-button.
- Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
- Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
- Fuses: 3 x 6 A.
N-VPS01
- Motorized variable autotransformer:
- Nominal power: 3000 VA.
- Input voltage: 400 VAC.
- Fixed output voltage: 3 x 400 VAC+N.
- Variable output voltage:
- 0 – 450 VAC (3PH + N).
- 0 – 240 VDC.
- Nominal current: 2 A.
- Three position switch with automatic return:
- Position I: Voltage reduction.
- Position 0: Constant voltage.
- Position II: Voltage increase.
- DC ammeter: 0 – 5 A.
- AC ammeter: 0 – 5 A.
- DC voltmeter: 0 – 300 V.
- AC voltmeter: 0 – 500 V.
Autotransformer.
- Nominal power: 3000 VA.
- Elements required (only one) (Not included):
- TPEL/1800W. Single-phase AC/DC Electronic Load of 1800W (3 units).
The TPEL/1800W electrical load stands out for its versatility in operating in both AC and
- DC. With a wide power range from 0 to 1800VA and an adjustable frequency from 45 Hz
to 450 Hz, this electronic source offers exceptional capabilities.
With its advanced measurement capabilities, 7-inch LCD display, and features such as the
built-in oscilloscope, the TPEL/1800W is the ideal solution for laboratory testing of most TPEL/1800W
of ’s unit such as UPS, inverters, AC power supplies, electrical generators and AC
electronic components. In addition, its connectivity via LAN and USB interfaces ensures reliable
and fast control, adding an additional level of efficiency to its capabilities.
- Technical Features:
- Frequency Range: 45 Hz~450 Hz.
- Power Range: 0~1.8 kVA
- Voltage Range: 50-420 Vrms, 15-260 Vrms.
- Parallel Connection/Three Phase Control: Capacity can be extended up to 43.2 kVA.
- 7 Inch LCD Display: Provides a clear and accessible interface.
- Oscilloscope Function: Allows display of voltage and current waveforms.
- High Speed AD Sampling: Captures real-time waveforms.
- Measurement Modes: Includes Vrms, Vpk, Vdc, Irms, Ipk, Idc, W, VA, VAR, ATENG 11797, PF and FREQ.
- Harmonic Measurement: Up to harmonic 50 (THD-V).
- AC Electronic Load: DC/CR/CP modes.
- DC Electronic Load: DC/CR/CP/CV modes.
- External Analog Control: 0~10 V analog input, with voltage and current monitoring functions.
- Protection Functions: OTP, OCP, OVP, UVP and OPP.
- Communication Interfaces: LAN and USB, plus external interface for USB flash disk.
6
Complete Technical Specifications (for main items)
- N-REFT/3C. 3 x 300 W Three-phase Configurable Resistors Module.
Configurable star and delta connections.
Three banks with three three-phase resistors of 1600 Ω.
- Nominal voltage: 400 VAC.
- Nominal power: 3 x (3 x 300) W.
N-REFT/3C
- Required element (Not included):
- AEL-PC. Touch Screen and Computer.
- Touch screen:
- Energy efficiency class: A.
- Screen diagonal: 68.6 cm (27 inch (s)).
- Power consumption (operating): 26 watts.
- Annual energy consumption: 38 kWh. AEL-PC
Power consumption (standby / off) 0.49 watts.
- Screen resolution: 1920 x 1080 pixels.
- Computer:
- Processor number: Intel Core i7-6600U Processor (4M Cache, up to 3,40 GHz).
- Cache: 4 MB Intel Smart Cache.
- Clock speed: 2.6 GHz.
-
Of cores / # of threads: 2/4.
- Max. TDP / Power: 15 W.
- Memory types: DDR4-2133, LPDDDR3-1866, DDR3L-1600.
- Graphics: Intel HD graphics 530.
Slot for PCI Express.
- Recommended additional elements (Not included):
- N-ASYB. Analog and Digital Synchronization Module.
- Supply voltage: 230 VAC.
- Input terminals:
Generation input terminals L1, L2, L3 and N.
- Output terminals:
N-ASYB
Network input terminals L1, L2, L3 and N.
- Synchronization switch:
- 2 x 24 VDC Connections.
Digital synchronoscope.
Synchronization switch.
Double frequency meter.
Double voltmeter.
- 400 VAC Lamps.
- N-PPIM1. Instrumentation Module 1.
- Three-phase wattmeter:
- Measured range: 0 – 1.5 kW.
- Three-phase varmeter:
- Measured range: 0 – 1.5 KVar.
N-PPIM1
- Voltmeter:
- Measured range: 0 – 500 V.
- Frequency meter:
- Measured range: 45 – 55 Hz.
- DC meter:
- Measured range: 0 – 10 A.
7
Complete Technical Specifications (for main items)
- N-INDT/3C. 3 x 300 Var Three-phase Configurable Inductances Module.
Configurable star and delta connection.
- Inductance: 3 x (3 x 5) H.
- Nominal voltage: 400 VAC.
- Nominal power: 3 x (3 x 100) Var.
- Supply voltage: 230 VAC. N-INDT/3C
Common point of normally close/open contacts.
- N-CAR19T/3C. 3x300 Var Three-phase Configurable Capacitors Module.
Configurable star and delta connections.
Three banks with three three-phase capacitors of 2 μF.
- Nominal voltage: 400 VAC.
- Nominal power: 3 x (3 x 300) Var.
N-CAR19T/3C
- ATENG 11419. Biomass Power Plants Simulator.
The ATENG 11419 software with the aim of showing the user
the basic principles of operation of Rankine cycle biomass power plants, presenting in a didactic
way the elements and parameters present in the generation process, as well as the interrelations
between these parameters by means of the mathematical models integrated in the simulator.
The basic principle of biomass power plants is to transform the intrinsic energy of a fuel that
can be considered renewable into electrical energy that will be delivered to the grid. Thus,
the application offers different levels of training that will provide the user with the essential
ATENG 11419
knowledge and skills on the fundamental principles of operation and functioning of thermal
power plants, where this energy transformation takes place. In this way it will be possible to
carry out a previous configuration of the operating conditions of the plant, to later carry out the
control and management based on these factors.
By means of this software the student will be able to understand that every thermal cycle of
power generation or thermal machine can be represented as a function of the net generated
power and the incoming or outgoing thermal powers, according to the fundamental equations
of thermodynamics for each element and thermal process of the cycle.
- ATENG 11420. Geothermal Power Plants Simulator.
The ATENG 11420 software with the aim of showing the user
the basic principles of operation of geothermal power plants, presenting in a didactic way
the elements and parameters present in the generation process, as well as the interrelations
between these parameters through the mathematical models integrated in the simulator.
The basic principle of geothermal power plants is the extraction of heat from the ground in the
form of electrical energy to be fed into the grid. Thus, the application offers different levels of
training that will provide the user with the essential knowledge and skills on the fundamental
ATENG 11420
principles of operation and functioning of geothermal power plants, where this energy
transformation takes place. In this way it will be possible to carry out a previous configuration
of the operating conditions of the plant, to later carry out the control and management based
on these factors.
- ATENG 11416. Gas Power Plants Simulator.
The ATENG 11416 software with the aim of showing the
user the basic principles of operation of Brayton cycle gas turbine power plants, exposing in
a didactic way the elements and parameters present in the generation process, as well as the
interrelations between these parameters through the mathematical models integrated in the
simulator.
The basic principle of gas turbine power plants is to transform the intrinsic energy of a fuel into
electrical energy to be delivered to the grid. Likewise, the application offers different levels of ATENG 11416
training that will provide the user with the essential knowledge and skills on the fundamental
principles of control, operation and functioning of thermal power plants, where this energy
transformation takes place. In this way it will be possible to carry out a previous configuration
of the operating conditions of the plant, to later carry out the control and management based
on these parameters.
8
Complete Technical Specifications (for main items)
- ATENG 11414. Hydroelectric Power Plants Simulator.
The ATENG 11414 software to show the user the basic principles
of operation of hydraulic power plants, exposing in a didactic way the elements and parameters
involved in the generation process, as well as the interrelations between these parameters thanks
to the mathematical models integrated in the simulator.
The application offers various levels of training that will provide the user with the essential
knowledge and skills on the fundamental principles of control, operation and functioning of
hydroelectric power plants. In this way it will be possible to carry out a previous configuration
ATENG 11414
of the plant’s operating conditions, to later control and manage it based on these parameters.
- ATENG 11422. Heliothermic Solar Power Plants Simulator.
The ATENG 11422 software with the aim of showing the user
the basic principles of operation of solar thermal power plants, presenting in a didactic way the
elements and parameters present in the generation process, as well as the interrelations between
these parameters through the mathematical models integrated in the simulator.
The basic principle of solar thermal power plants is the use of heat energy from solar radiation
to obtain electrical energy. There are different types of plants such as tower plants and parabolic
trough plants. Solar towers consist of a large glass surface in the centre of which is a very
ATENG 11422
high chimney fitted with devices similar to wind turbines. In this way, the application offers
different levels of training that will provide the user with the essential knowledge and skills on the
fundamental principles of operation and functioning of solar thermal power plants, where this
energy transformation takes place.
- All necessary cables to realize the practical exercises are included.
- The complete application includes as well:
Advanced Real-Time SCADA.
Open Control + Multicontrol + Real-Time Control.
Specialized Control Software based on LabVIEW.
Projector and/or electronic whiteboard compatibility allows the unit to be explained and
demonstrated to an entire class at one time.
Capable of doing applied research, real industrial simulation, training courses, etc.
Remote operation and control by the user and remote control for technical support,
are always included.
Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
Designed and manufactured under several quality standards.
Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
calculations, etc. Apart from monitoring user's knowledge and progress reached.
This unit has been designed for future expansion and integration. A common expansion is
the Scada-Net (ESN) System which enables multiple students to simultaneously
operate many units in a network.
AEL-TI-07/CCSOF. Computer Control + Data Acquisition + Data Management
- Software:
The three softwares are part of the SCADA system.
Compatible with actual Windows operating systems. Graphic and intuitive simulation of the process in
screen. Compatible with the industry standards.
Registration and visualization of all process variables in an automatic and simultaneous way.
Flexible, open and multicontrol software, developed with actual windows graphic systems, acting
simultaneously on all process parameters.
Management, processing, comparison and storage of data.
It allows the registration of the alarms state and the graphic representation in real time.
Comparative analysis of the obtained data, after the process and modification of the conditions during
the process.
Open software, allowing the teacher to modify texts, instructions. Teacher’s and student’s AEL-TI-07/CCSOF
passwords to facilitate the teacher’s control on the student, and allowing the access to different work
levels.
This unit allows the 30 students of the classroom to visualize simultaneously all the results
and the manipulation of the unit, during the process, by using a projector or an electronic
whiteboard.
3 Cables and Accessories, for normal operation.
- 4Manuals:
- This unit is supplied with 7 manuals: Required Services, Assembly and Installation, Control Software,
Starting-up, Safety, Maintenance & Practices Manuals.
- References 1 to 4 are the main items: ATENG 11455 + AEL-TI-07/CCSOF + Cables and Accessories + Manuals are included in the minimum
supply for enabling normal and full operation.
9
