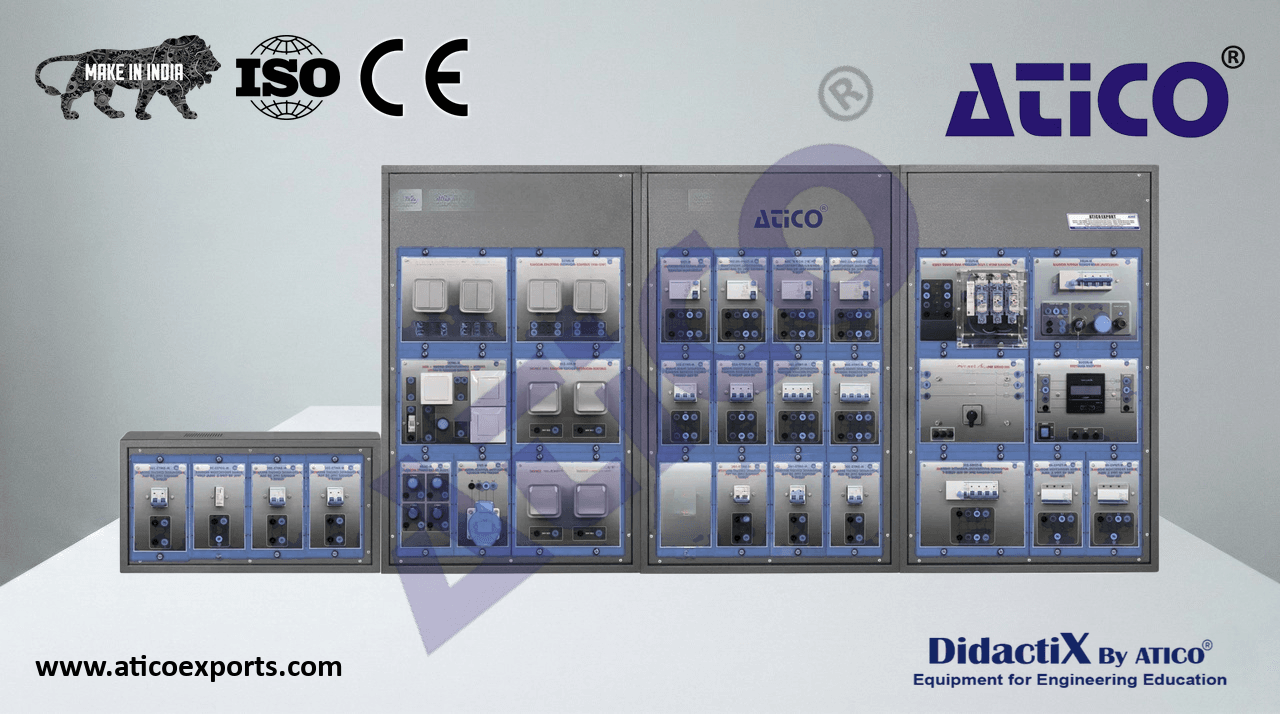

Protection Measures in Electrical Installations Application

The Protection Measures in Electrical Installations Application, for training practical and professional level in the field of installation and testing of the main electrical protections for the housing and industry and devices involved in the basic circuits.

ATENG 11057 — Protection Measures in Electrical Installations Application

• The “ATENG 11057” application includes the following elements:
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
  N-ALI01
• Three-phase supply hose with IP44 3PN+E 32 A 400 V connecting plug.
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-FUS10. Module with Three 20 A Power Fuses and One 4 A Control Fuse.
• Four fuseholders and their respective fuses:
• Three fuses of 20 A.
• Fuse of 32 A.
• Input terminals: 3PH + N.
• Output terminals: 3PH + N. N-FUS10
• N-MED60. Power Analyzer Module.
  ON / OFF switch.
• Supply voltage: 400 VAC.
• Input terminals: input connection with the measurement point.
• Output terminals: output connection with the measurement point.
• Fuses: 3 x 10 A. N-MED60
• Display of the network analyzer, where it is shown:
  Active, reactive and apparent power.
  Active, reactive and apparent energies.
  Lines and phase currents.
  Line and phase voltages.
  Frequencies.
  Power factor.
• N-REFT300. 300 Ohms Three-Phase Fixed Resistor Module.
• Nominal voltage: 400 VAC.
• Resistor value: 3 x 300 Ohms.
• Nominal power: 3 x 200 W.
  Manual commutator to switch ON / OFF the resistors.
• Fuses: 3 x 5 A.
  N-REFT300
• Terminals:
  Three input terminals (3PH).
  Three output terminals (3PH).
• N-TSP42-40. Surge Protection Module 3PH, 4P, Type 2, 40 kA, 230 / 400 V (2 units).
• Three-phase four poles surge arrester:
• Nominal voltage: 230 / 400 VAC.
• Maximum discharge current: 40 kA.
  Type 2.
  Input terminals.
  N-TSP42-40
  Ground terminal.
• N-TDM4-25C. Automatic Differential-Magnetic Thermal Switch Module 3PH, 4P, 25 A, Curve C.
• Three-phase four poles differential-magneto-thermal switch:
• Nominal voltage: 400 VAC.
• Nominal current: 25 A.
  Magneto-thermal switch with curve type C.
  Differential switch type A, sensitivity=30 mA.
  N-TDM4-25C
  Input terminals.
  Output terminals.
  3

Specifications

• N-TDIF4-63/300C. Differential Protection Module 3PH, 4P, 63 A / 300 mA, Type AC.
• Three-phase four poles differential circuit breaker:
• Nominal voltage: 400 VAC.
• Nominal current: 63 A.
  Type AC.
• Sensitivity: 300 mA
  Input terminals. N-TDIF4-63/300C
  Output terminals.
• N-TDIF4-40/30A. Differential Protection Module 3PH, 4P, 40 A / 30 mA, Type A.
• Three-phase four poles differential circuit breaker:
• Nominal voltage: 400 VAC.
• Nominal current: 40 A.
  Type A.
• Sensitivity: 30 mA.
• Input terminals. N-TDIF4-40/30A
  Output terminals.
• N-TDIF4-40/30C. Differential Protection Module 3PH, 4P, 40 A / 30 mA, Type AC.
• Three-phase four poles differential circuit breaker:
• Nominal voltage: 400 VAC.
• Nominal current: 40 A.
  Type AC.
• Sensitivity: 30 mA.
  Input terminals. N-TDIF4-40/30C
  Output terminals.
• N-TDIF. Three-phase Differential Protection Module.
• Three-phase four poles differential circuit breaker:
• Nominal voltage: 400 VAC.
• Nominal current: 25 A.
  Type AC.
• Sensitivity: 30 mA.
  Input terminals. N-TDIF
  Output terminals.
• N-TMT4-20B. Automatic Three-Phase Circuit Breaker Module 4P, 20 A, Curve B.
• Three-phase four poles magneto-thermal switch:
• Nominal voltage: 400 VAC.
• Nominal current: 20 A.
  Curve type B.
  Input terminals.
  N-TMT4-20B
  Output terminals
• N-TMT4-16C. Automatic Three-Phase Circuit Breaker Module 4P, 16 A, Curve C.
• Three-phase four poles magneto-thermal switch:
• Nominal voltage: 400 VAC.
• Nominal current: 16 A.
  Curve type C.
  Input terminals.
  N-TMT4-16C
  Output terminals
• N-TMT3-63D. Automatic Three-Phase Circuit Breaker Module 3P, 63 A, Curve D.
• Three-phase three poles magneto-thermal switch:.
• Nominal voltage: 400 VAC.
• Nominal current: 63 A.
  Curve type D.
  Input terminals.
  N-TMT3-63D
  Output terminals.
  4

Specifications

• N-TMT3-25C. Automatic Three-Phase Circuit Breaker Module 3P, 25 A, Curve C.
• Three-phase three poles magneto-thermal switch:
• Nominal voltage: 400 VAC.
• Nominal current: 25 A.
  Curve type C.
  Input terminals.
  Output terminals. N-TMT3-25C
• N-SMT2-20C. Automatic Circuit Breaker Module 1PH, 2P, 20 A, Curve C.
• Single-phase two poles magneto-thermal switch:
• Nominal voltage: 230 VAC.
• Nominal current: 20 A.
  Curve type C.
  Input terminals.
  N-SMT2-20C
  Output terminals.
• N-SMT2-16C. Automatic Circuit Breaker Module 1PH, 2P, 16 A, Curve C (2 units).
• Single-phase two poles magneto-thermal switch:
• Nominal voltage: 230 VAC.
• Nominal current: 16 A.
  Curve type C.
  Input terminals.
  N-SMT2-16C
  Output terminals.
• N-SMT2-10C. Automatic Circuit Breaker Module 1PH, 2P, 10 A, Curve C.
• Single-phase two poles magneto-thermal switch:
• Nominal voltage: 230 VAC.
• Nominal current: 10 A.
  Curve type C.
  N-SMT2-10C
  Input terminals.
  Output terminals.
• N-INT22. Two-way Surface-Mounted Switches Module (2 units).
• Two two-way surfaced mounted switches:
• Connections: 2302P + T.
  IP55.
• Nominal voltage: 230 VAC.
  Input terminals for the first switch. N-INT22
  Output terminals for the first switch.
  Input terminals for the second switch.
  Output terminals for the second switch.
• N-INT21. Switch + Conmutators Group + Bell Push-button Module.
• Nominal voltage: 230 VAC (1PH + N).
• Switch:
  N-INT21
  Switch ON / OFF.
  Normally open contact (NO).
• Group commutators:
  Two commutators.
  Two normally open contacts (NO).
• Bell: Sound level: 83 dB.
  N-SSS-230
• N-SSS-230. Surface-Mounted Socket Module 1PH, 230 VAC (2 units).
  Two single phase surface-mounted sockets.
  Each socket contains its line and neutral terminals.
• N-TIPS. Industrial Surface-Mounted Socket 3PH Module.
  One three phase industrial surface-mounted socket.
  Lines and neutral terminals.
  N-TIPS
  5

Specifications

• N-SEL04. Four Light Indicator Module.
  Two red lamps.
• Input voltage: 2 terminals for each lamp of 230 VAC.
  Two green lamps.
• Input voltage: 2 terminals for each lamp of 230 VAC.
• N-SMT2-25C. Automatic Circuit Breaker Module 1PH, 2P, 25 A, Curve C.
• Single-phase two poles magneto-thermal switch: N-SEL04
• Nominal voltage: 230 VAC.
• Nominal current: 25 A.
  Curve type C.
  Input terminals.
  Output terminals.
• N-SDIF2-25/30C. Differential Protection Module 1PH, 2P, 25 A / 30 mA, Type AC.
• Single-phase two poles differential circuit breaker: N-SMT2-25C
• Nominal voltage: 230 VAC.
• Nominal current: 25 A.
  Type AC.
• Sensitivity: 30 mA.
  Input terminals.
  Output terminals.
• N-SSP23-20. Surge Protection Module 1PH, 2P, Type 3, 20 kA, 230 V.
  N-SDIF2-25/30C
• Single-phase two poles surge arrester:
• Nominal voltage: 230 VAC.
• Maximum discharge current: 20 kA.
  Type 3.
  Input terminals.
  Ground terminal.
• FP-KIT-5. Measuring Kit.
• Clamp meter:
  N-SSP23-20
  Clamp for alternating/direct current measurements contactless.
• The clamp can measure:
  Current.
  Voltage.
  Resistance.
• A voltage and continuity tester:
• Voltage range: 12 – 690 VAC.
  Polarity tester. FP-KIT-5
  Phases rotating detection in three-phase systems.
• MED65. Digital Multimeter.
• This 3 ½ digit digital multimeter, with double-jack ending cables of about 4 mm to facilitate
  interconnections.
• With this digital multimeter we will be able to measure:
  Voltage.
  Current.
  Resistance. MED65
  Capacitors capacity.
  Temperature.
• Electrical Polarity Tester.
  Electrical polarity tester is an adapter that provides information about the phase position and the
  presence of the P-N voltage.
• Nominal voltage: 230 VAC.
• Franklin Tip.
  Single aluminum Franklin tip.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
