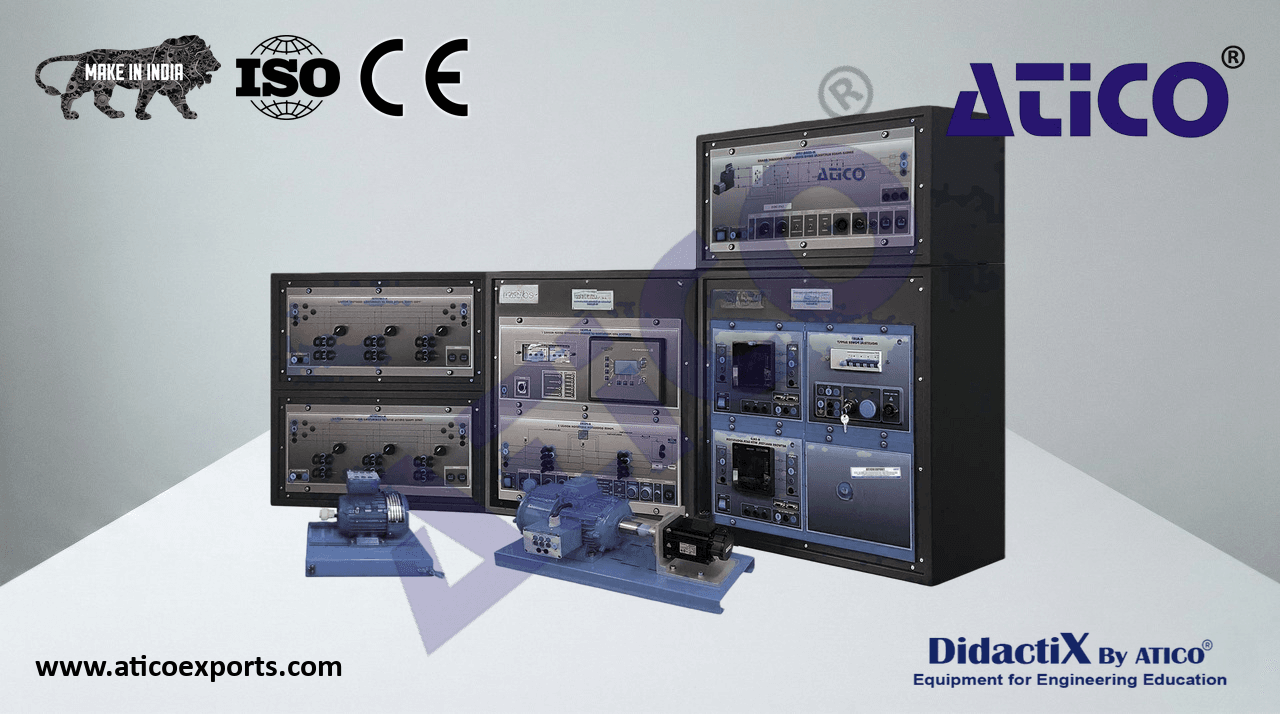

ATENG 11434 — Pumping Storage Power Plant Application, with SCADA

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3 and 4.
• Optional items: 5, 6 and 7.
• Let us describe first the main items (1 to 4):
• 1AEL-GAD-01S Application.
• N-ASYB. Analog and Digital Synchronization Module.
• Supply voltage: 230 VAC.
• Input terminals:
  Generation input terminals L1, L2, L3 and N.
• Output terminals: N-ASYB
  Network input terminals L1, L2, L3 and N.
• Synchronization switch:
• 2 x 24 VDC Connections.
  Digital synchroscope.
  Double frequency meter.
  Double voltmeter.
• 400 VAC Lamps.
• GAD-01S-UB. Pumping Storage Power Plant Application Base Unit, with SCADA.
• EMT6/1K. Independent Excitation 3PH Synchronous Motor-Generator, 1 kW.
• Nominal power: 1000 VA.
• Power factor: 0.8.
• Nominal voltage: 3 x 400 VAC.
• Terminals for connection configuration: Δ/Y
  EMT6/1K
  Terminals to connect DC excitation.
• Frequency: 50 / 60 Hz.
• RPM: 3000 rpm.
• Nominal Current: 0.8 A.
• Excitation Current: 5 A.
• Shaft height: 71 mm.
• EMT7/1K. 1kW/1P Asynchronous Three-Phase Motor of Squirrel Cage (2 units).
• Nominal power: 1100 W.
• Nominal voltage: 3 x 230 / 400 VAC Δ/Y.
• Frequency: 50 / 60 Hz.
• Number of poles: 2.
  EMT7/1K
• Speed: 2730 rpm.
• Nominal current: 2.52 / 1.45 A.
• Shaft height: 71 mm.
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
  N-ALI01
• Single-phase: 230 VAC.
• Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
  4

Complete Technical Specifications (for main items)

• N-EALD/A. Network Analyzer Ethernet Module with Oscilloscope and Data Acquisition (4 units).
  The network analyzer module allows fulfilling measurements, displaying and analyzing all
  the parameters of the AC electrical networks. It has an LCD screen and push-buttons for the
  navigation through the different menus. It includes specific software for monitoring current and
  voltage curves, harmonics display, tariffs programming, alarms programming and electrical
  parameters storage.
• Features:
  N-EALD/A
• Multifunctional three-phase power meter:
• Three-phase and single-phase voltage. Up to 690 VAC L-L.
• Line and neutral nominal current: 10 A.
  Active, reactive and apparent power.
• Suitable frequencies: 25 Hz, 50 Hz, 60 Hz and 400 Hz.
  Display of the V-I vector diagram.
• Supply voltage: 85 – 265 VAC.
• Energy quality control:
  Current and voltage individual harmonics measurement. Up to the 40th harmonic.
  Voltage and current THD, TDD and K-Factor.
  Maximums and minimums display.
  Waveforms display, 128 samples/sec.
• Events and data storage:
• Harmonics analyzer:
  Voltage and current THD, current TDD and K-Factor, up to the 40th harmonic.
  Current and voltage harmonic spectrum and angles.
• Tariff programming:
  Class 0.5S IEC 62053 – 22, active and reactive power in four quadrants.
  Measurement of the total and per phase three-phase active, reactive and apparent powers.
  Usage time, four energy/demand records of total tariffs.
  Eight tariffs, four seasons and four types of days.
  Automatic daily report of energy consumption maximums and minimums.
• Communications:
  RS – 485 communication port.
• N-EDDB/3PH. Three-Phase Electrical Drive System with Dynamic Brake Module (2 units).
• Controller:
• Switch: ON / OFF
• Supply voltage: 230 VAC.
• Nominal power: 750 W.
• Power output terminals:
  N-EDDB/3PH
• 230 VAC/PWM VAC.
  Potentiometer for the induction motor control speed.
  Potentiometer for the dynamic brake control braking torque.
  Setting and visualization display of the machine parameters.
• Dynamic brake:
• Nominal torque: 5 Nm.
• Maximum power dissipation: 100 W.
  Maximum output current adjustment.
  Operating modes “freewheel “and “blocking”.
• Maximum power consumed: 70 W.
• N-PSM. Power Switch Module (2 units).
• Power terminals:
  Four input terminals (3PH + N).
  Four output terminals (3PH + N).
• Auxiliary contacts:
  One NO contact.
  N-PSM
  One NC contact.
  Two push-buttons to open/close the power switch and the auxiliary contacts.
• Two 24 VDC control inputs.
• Two 24 VDC voltage outputs.
  5

Complete Technical Specifications (for main items)

• N-PSUB2. Power Generation Substation Module 2.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF switch.
• Power and signals connection:
  Auxiliary connection.
• Three-phase turbine supply hose with IP44 3PN+E 32 A 400 V connecting plug.
• Three-phase generator supply hose with IP44 3PN+E 32 A 400 V connecting plug.
• Three switches to choose between the different modes:
  Local and remote control mode. N-PSUB2
  Manual and automatic speed control.
  Manual and automatic excitation control
• Three control switches to:
  Start and stop the turbine.
  Give permission to synchronize the generator with the grid.
  Give permission to close 52NET circuit breaker.
• Two potentiometers to regulate:
  Turbine speed.
  Generator excitation.
  Emergency stop push-button.
  Two circuit breakers for synchronization and stand-alone operations.
  Different terminals to measure.
• Ethernet connection: RJ45 communication port for SCADA remote control.
• Automatic speed and voltage controller (easygen):
  Enables to connect up to 16 electric generators in parallel-island with distribution of active and
  reactive load and start/stop in function of the load demand.
  Enables to connect a generator in parallel with the grid.
  Enables different switches control modes, such as opening, closing and synchronization.
  Analogical outputs to control voltage and frequency regulators.
  Three-phase measurement of the grid and the generator voltage.
  Three-phase measurement of the generator intensity and power.
  Single-phase measurement of the grid intensity.
• Protection system:
• Generator:
  Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), voltage
  asymmetry, detection of dead busbars, overvoltage (32), load unbalance (46), negative
  sequence power/reduced power (32R/F), overcurrent by defined curve (50/51), inverse time
  overcurrent (IEC255), measured ground fault (50N/51N), phase rotation, switches faults.
• Network:
  Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), vector
  jump, phase rotation.
• Six alarms:
• Alarm 1: Reverse power.
• Alarm 2: Overcurrent.
• Alarm 3: Over/under voltage.
• Alarm 4: Inverse time overcurrent.
• Alarm 5: Over/under frequency.
• Alarm 6: Shutdown alarms.
• Four operation signals:
  Ready for operation.
  Start request.
  Synchronization conditions.
  Permission for synchronization.
  6

Complete Technical Specifications (for main items)

• SERV01. AC Servomotor 1.
• Nominal power: 2000 W.
• Nominal voltage: 400 VAC.
• Nominal speed: 3000 rpm.
• Nominal current: 5 A.
  SERV01
• GAD-01S-K1. 1KVA 3PH RLC Loads Kit.
• N-CAR35T3D. Three-phase Digital Bank of Commutable Resistors Module.
  Configurable star and delta connection.
  Three banks with three three-phase resistors of 1600 Ω.
• Nominal voltage: 400 VAC.
• Nominal power: 3 x (3 x 300) W.
• Fuses: 6 x 5 A. N-CAR35T3D
  Ethernet connection.
  Digital bank of commutable resistors module.
• N-CAR36T3D. Three-phase Digital Bank of Commutable Inductances Module.
  Configurable star and delta connection.
  Three banks with three three-phase inductors of 5 H.
• Nominal voltage: 400 VAC.
• Nominal power: 3 x (3 x 300) Var.
  N-CAR36T3D
• Fuses: 6 x 5 A.
  Ethernet connection.
  Digital bench of the commutable inductance module.
• N-CAR19T3D. Three-phase Digital Bank of Commutable Capacitors Module.
  Configurable star and delta connection.
  Three banks with three three-phase capacitors of 2 μF.
• Nominal voltage: 400 VAC.
• Nominal power: 3 x (3 x 300) Var.
• Fuses: 6 x 5 A. N-CAR19T3D
  Ethernet connection.
  Digital bank of commutable capacitor module.
• Required elements (Not included):
• AEL-PC. Touch Screen and Computer.
• Touch screen:
• Energy efficiency class: A.
• Screen diagonal: 68.6 cm (27 inch (s)).
• Power consumption (operating): 26 watts.
  AEL-PC
• Annual energy consumption: 38 kWh.
• Power consumption (standby / off): 0.49 watts.
• Screen resolution: 1920 x 1080 pixels.
• Computer:
• Processor number: Intel Core i7-6600U Processor (4M cache, up to 3.40 GHz).
• Cache: 4 MB Intel Smart Cache.
• Clock speed: 2.6 GHz.

• Of Cores/# of threads: 2/4.

• Max. TDP / Power: 15 W.
• Memory types: DDR4-2133, LPDDDR3-1866, DDR3L-1600.
• Graphics: graphics Intel HD 530.
  Slot for PCI Express.
• All necessary cables to realize the practical exercises are included.
  7

Complete Technical Specifications (for main items)

• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
• 2 AEL-GAD-01S/CCSOF. Computer Control + Data Acquisition + Data Management
• Software:
  The three softwares are part of the SCADA system.
  Compatible with actual Windows operating systems. Graphic and intuitive simulation of the process in
  screen. Compatible with the industry standards.
  Registration and visualization of all process variables in an automatic and simultaneous way.
  Flexible, open and multicontrol software, developed with actual windows graphic systems, acting
  simultaneously on all process parameters.
  Management, processing, comparison and storage of data.
  It allows the registration of the alarms state and the graphic representation in real time.
  Comparative analysis of the obtained data, after the process and modification of the conditions during AEL-GAD-01S/CCSOF
  the process.
  Open software, allowing the teacher to modify texts, instructions. Teacher’s and student’s
  passwords to facilitate the teacher’s control on the student, and allowing the access to different work
  levels.
  This unit allows the 30 students of the classroom to visualize simultaneously all the results
  and the manipulation of the unit, during the process, by using a projector or an electronic
  whiteboard.
  3 Cables and Accessories, for normal operation.
• 4Manuals:
• This unit is supplied with 7 manuals: Required Services, Assembly and Installation, Control Software,
  Starting-up, Safety, Maintenance & Practices Manuals.
• References 1 to 4 are the main items: ATENG 11434 + AEL-GAD-01S/CCSOF + Cables and Accessories + Manuals are included in the
  minimum supply for enabling normal and full operation.
