The Radar Unit is a radar unit, to study the basic principles about the radar technology.
Technical Specifications
ATENG 10972 — Radar Unit

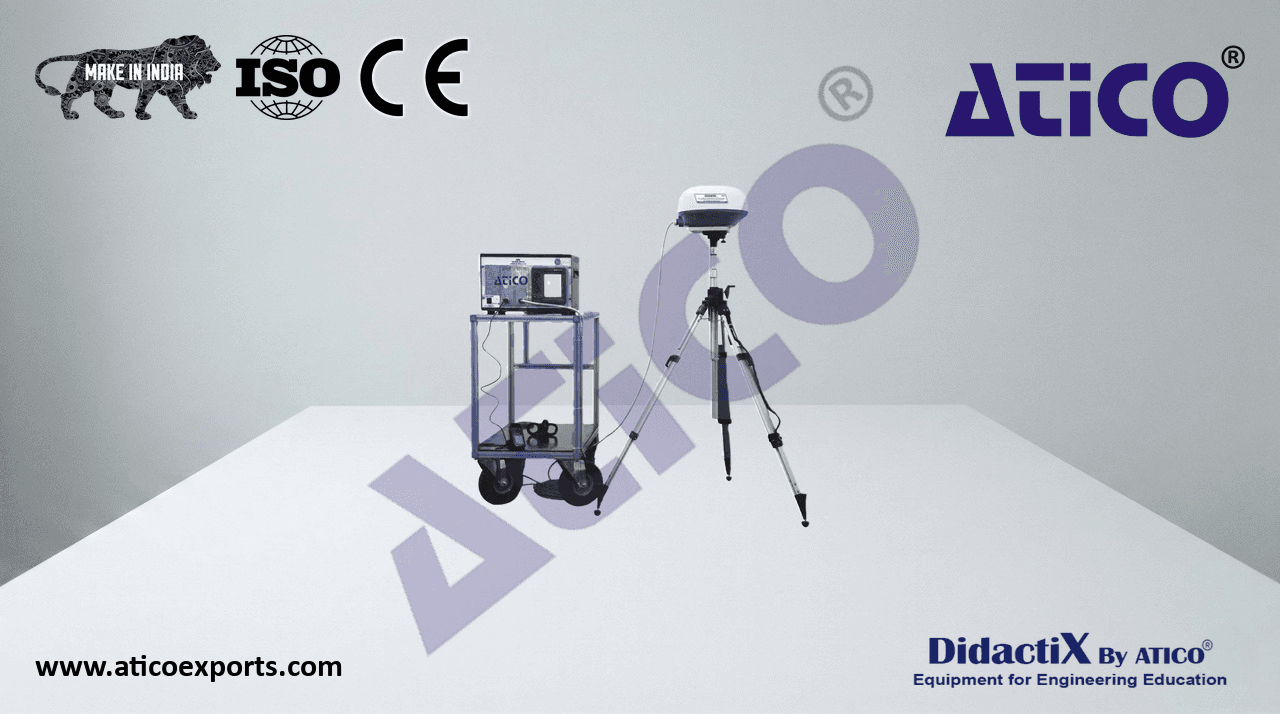

The Radar Unit “ATENG 10972” consists of:
Interface unit:
It contains the display and the radar control system.
Display unit:
High definition 6” rectangular monochrome LCD display.
Display resolution: 240x320 pixels.
Markers: Heading Line, Bearing Scale, Range Rings, Variable Range Marker (VRM), Electronic Bearing Line (ATENG 10975), Tuning Bar,
Cursor, Parallel Cursor, Alarm Zone, Waypoint Mark*, North Mark*.
Alphanumeric indications: Range, Range Ring Interval, Display Mode (HU), Interference Rejection (IR), Variable Range Marker
(VRM), Electronic Bearing Line (ATENG 10975), Stand-By (ST-BY), Guard Alarm (G (IN), G (OUT), UP RANGE), Echo Stretch (ES), Range and
Bearing to Cursor, Bearing or L/L Position, Echo Tailing (TRAIL), Trailing Time, Trailing Elapsed Time, Watchman (WATCHMAN),
Zoomed Display (ZOOM), Navigation Data*, Heading* (HDC).
:external data required.
Battery system:
Battery charger (included inside the interface unit).
Battery: nominal voltage: 12 VDC, capacity: 24 AH.
Connector to the GPS module.
Connector to the Radar Antenna.
Antenna rotation speed 24/31/41 rpm nominal (auto-select according to range).
Horizontal Beamwidth less than 6.2Âş. Vertical Beamwidth 25Âş.
Connection cable to the interface unit.
GPS module:
High contrast display with gray scale. Display resolution: 120 x 160 pixels.
GPS Accuracy: 15 m. DGPS (WAAS) Accuracy: 3 m.
Connection cable to the interface unit.
Extendable tripod stand:
Telescopic tripod stand, of anodized aluminum, to hold the radar antenna at the appropriate height. It includes a bull’s eye level
indicator. Operation range: 1.20 m – 3.05 m. Maximum supported weight: 7.5 kg.
Mobile cart:
Mobile cart to hold the elements of the ATENG 10972 unit. It incorporates wheels (strong tires) to facilitate its mobility and the operation in
uneven grounds.
Cables and Accessories, for normal operation.
