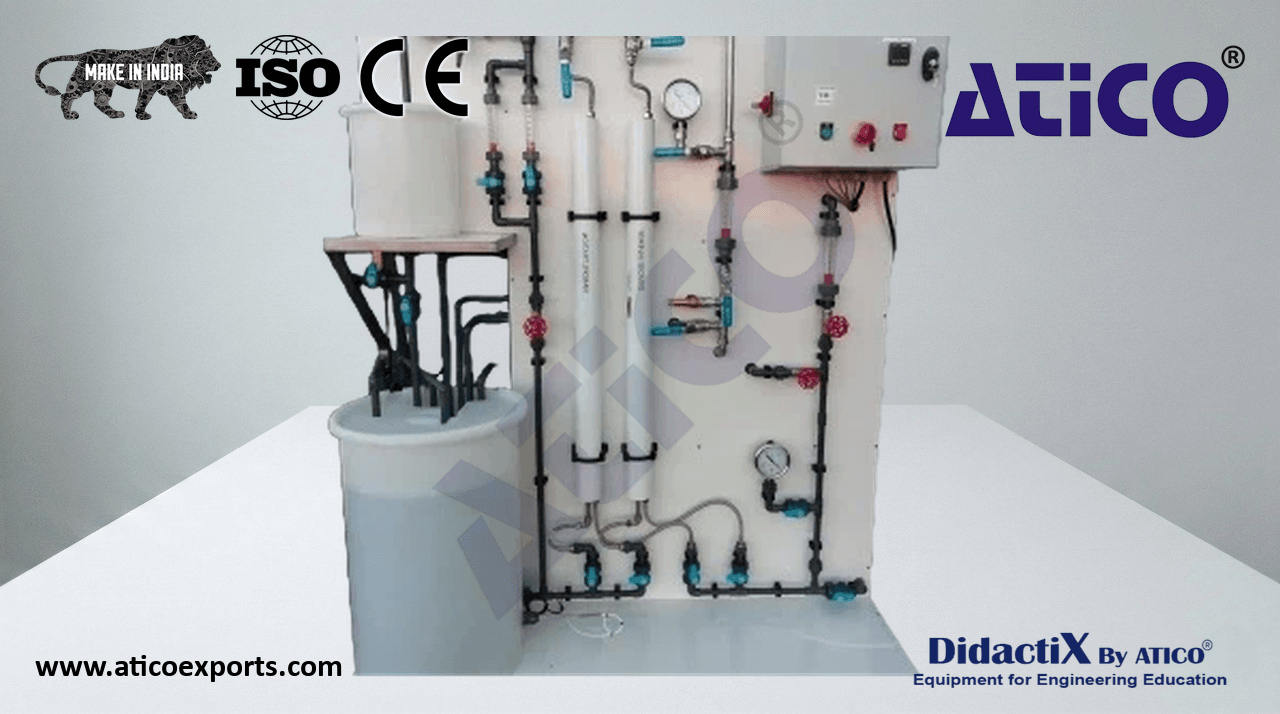

Reverse Osmosis and Nanofiltration Pilot

This water treatment process is a membrane separation technique driven by a pressure gradient. Certain molecules (10⁻⁶ to 10⁻⁷ m) and certain ions are retained while solvent molecules pass through. The energies involved are higher than those of processes with similar objectives. Learn about Reverse Osmosis and Nanofiltration Pilot equipment for optimal educational outcomes.. This technique produces a pure solvent and concentrates ions, making it applicable to seawater desalination, water softening, or treatment of water containing heavy metals.

Educational Topics:

• Study of performance as a function of hydraulic parameters around the cartridges
• Study of performance as a function of the nature and concentration of polluting elements
• Advantage of connecting two cartridges in series
• Lab session duration: 4 hours

Composition:

• Spiral reverse osmosis membrane cartridge with polyester protection
• Spiral nanofiltration membrane cartridge with polyester protection
• Vertical multi-stage stainless steel centrifugal pump
• Feed tank
• Permeate reception tank
• 3 PVC flow meters
• 2 pressure gauges
• Conductivity meter with probe and transmitter-regulator
• Electrical control cabinet: pump control and protection, emergency stop, conductivity display, general switch
• PVC tubes; stainless steel chassis with aluminum clamping nuts

Spiral reverse osmosis membrane cartridge with polyester protection
One spiral nanofiltration membrane cartridge with polyester protection
Vertical multi-stage stainless steel centrifugal pump
Feed tank
Permeate reception tank
3 PVC flow meters
2 pressure gauges
Conductivity meter with probe and transmitter-regulator
Electrical control cabinet: pump control and protection, emergency stop, conductivity display, general switch
PVC tubes; stainless steel chassis with aluminum clamping nuts
